Beam Deflection - Stress Analyzer - Premium
Professional Excel tool for beam deflection, stress, shear force, and bending moment analysis with pass/fail checks.
Further information
The primary objective of this Beam Deflection & Stress Analyzer is to provide engineers with a practical, efficient, and reliable tool for evaluating beam performance under common loading conditions.
This toolkit is designed to:

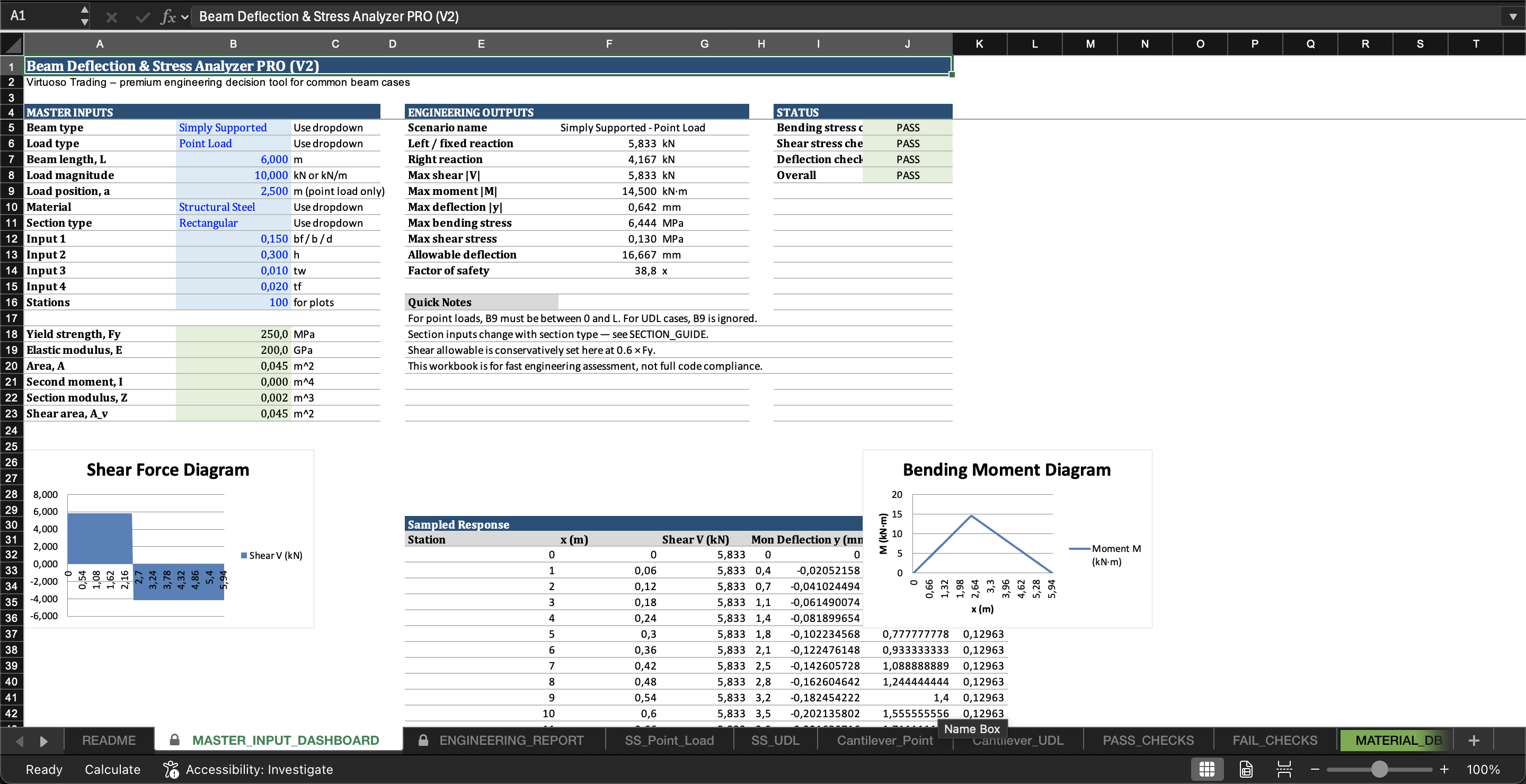

Enable fast and accurate calculation of shear force, bending moment, deflection, and stress
Provide clear visual representation of beam behavior through engineering diagrams
Support informed decision-making during design, maintenance, and troubleshooting activities
Reduce reliance on complex software by delivering engineering-grade analysis within Excel

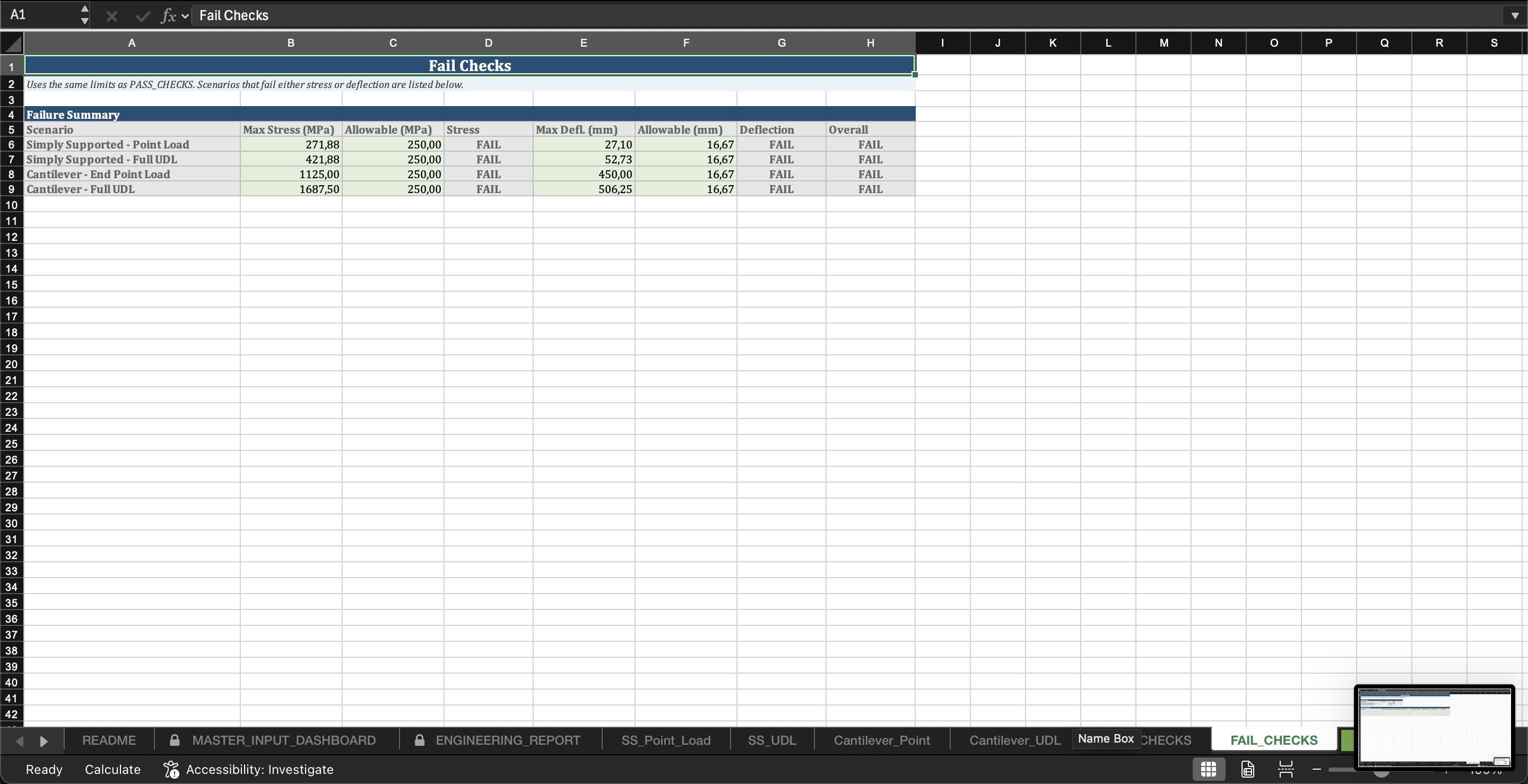

Improve design validation through automated PASS/FAIL checks for stress, deflection, and safety factors
Standardize calculations and reduce errors in manual engineering assessments

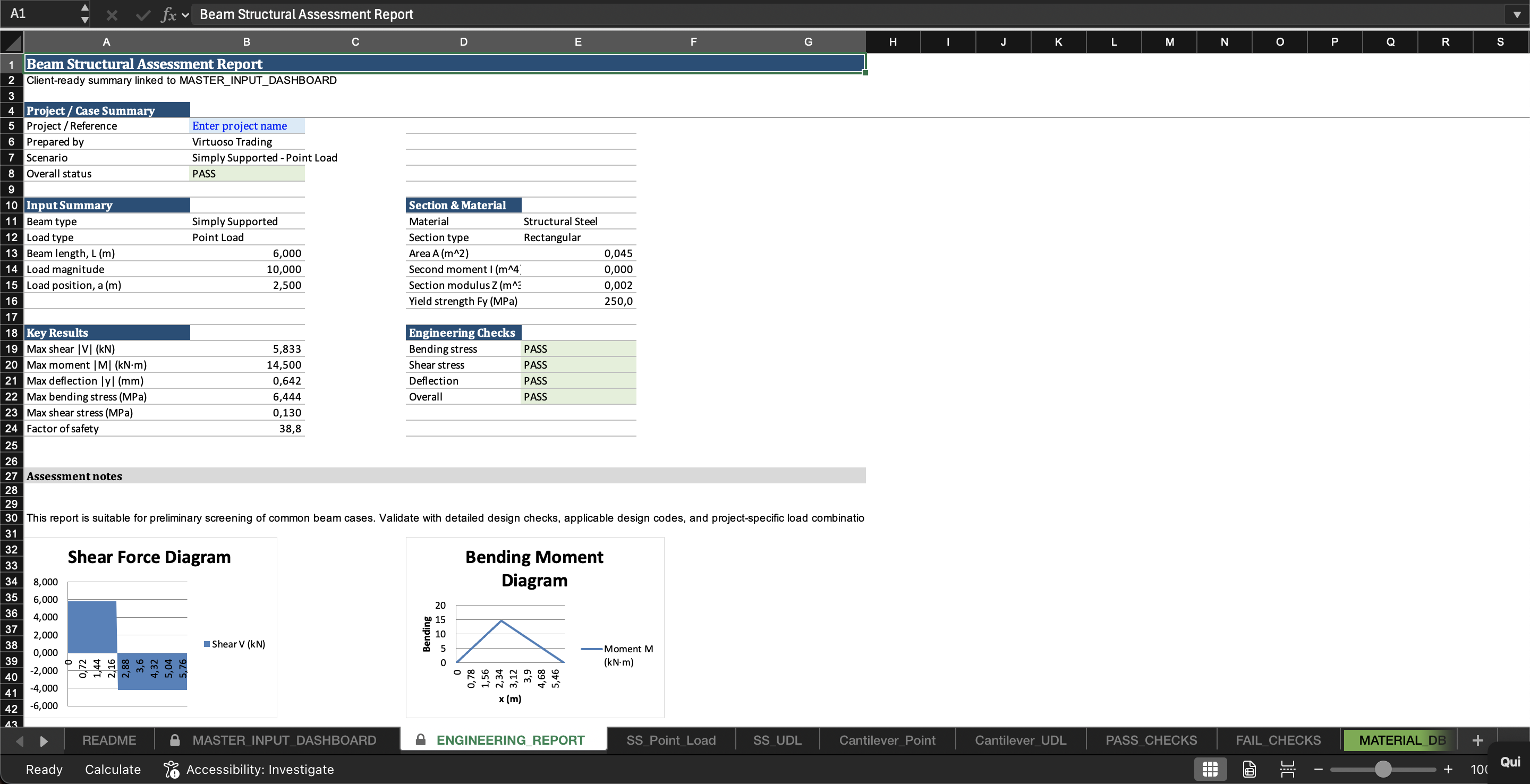

Assist engineers in producing professional, client-ready outputs and reports
Ultimately, this best practice aims to bridge the gap between basic calculations and advanced analysis tools, offering a solution that is both accessible and technically robust for real-world engineering applications.
This Beam Deflection & Stress Analyzer is best suited for standard engineering scenarios involving linear elastic beam behavior and commonly encountered loading conditions.
It is most effective when applied to:

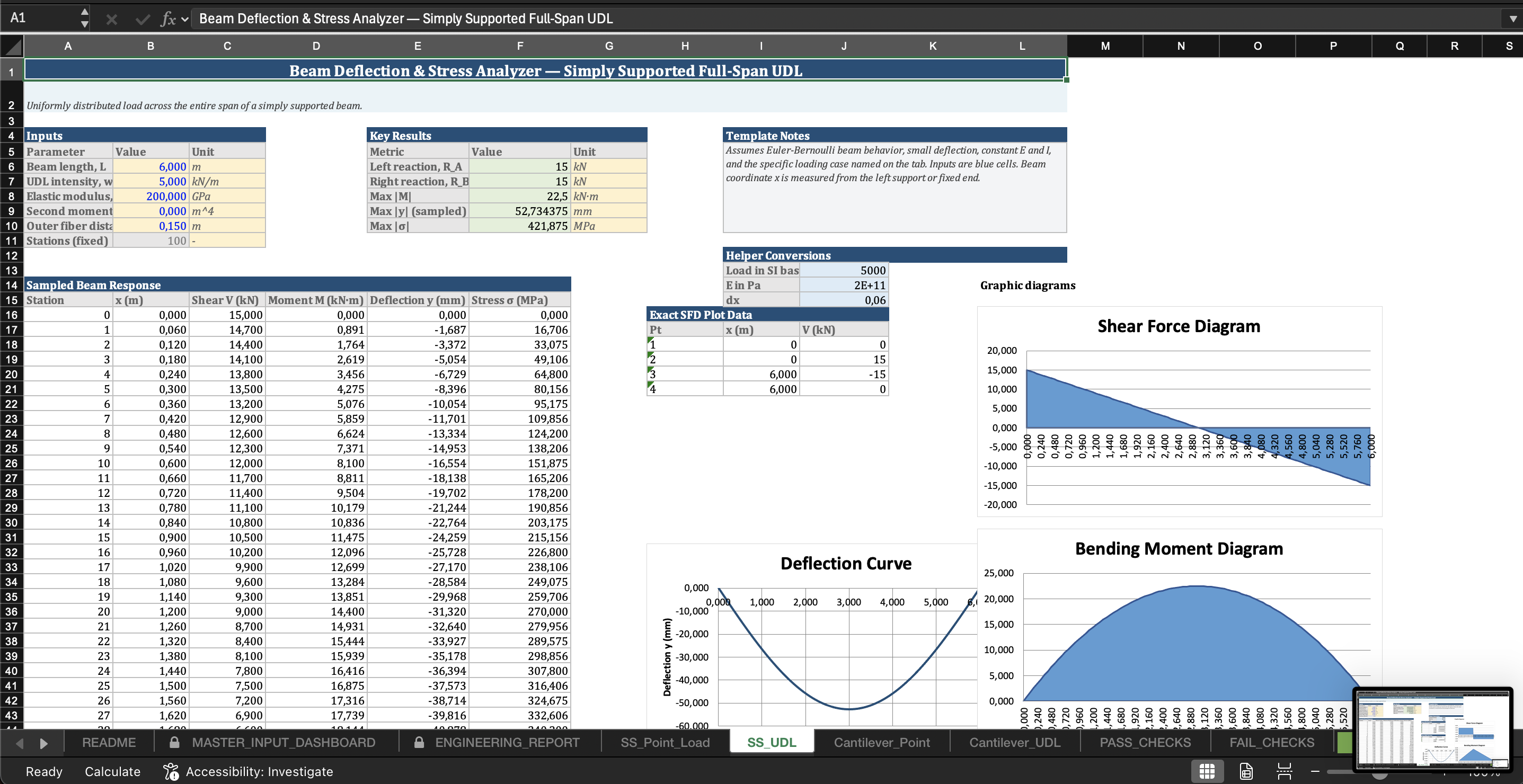

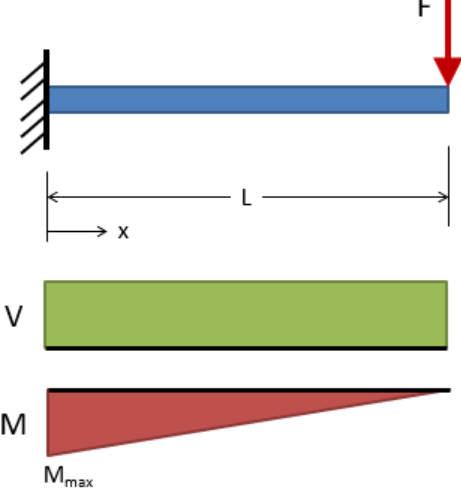

Simply supported and cantilever beams under point loads or uniformly distributed loads (UDL)
Situations requiring quick preliminary design checks or validation of existing structures
Engineering environments where fast decision-making is required without complex software
Applications involving steel, aluminium, or similar isotropic materials within elastic limits
Projects where visual interpretation of shear force, bending moment, and deflection is beneficial
Maintenance and reliability assessments where structural performance needs to be evaluated quickly
Consulting and reporting scenarios requiring clear, professional outputs for clients or management
This tool is not intended for:
Non-linear or plastic deformation analysis
Dynamic loading, vibration, or fatigue analysis
Complex geometries (multi-span beams, frames, or 3D structures)
Advanced finite element analysis (FEA) requirements
