Voltage Drop Calculator

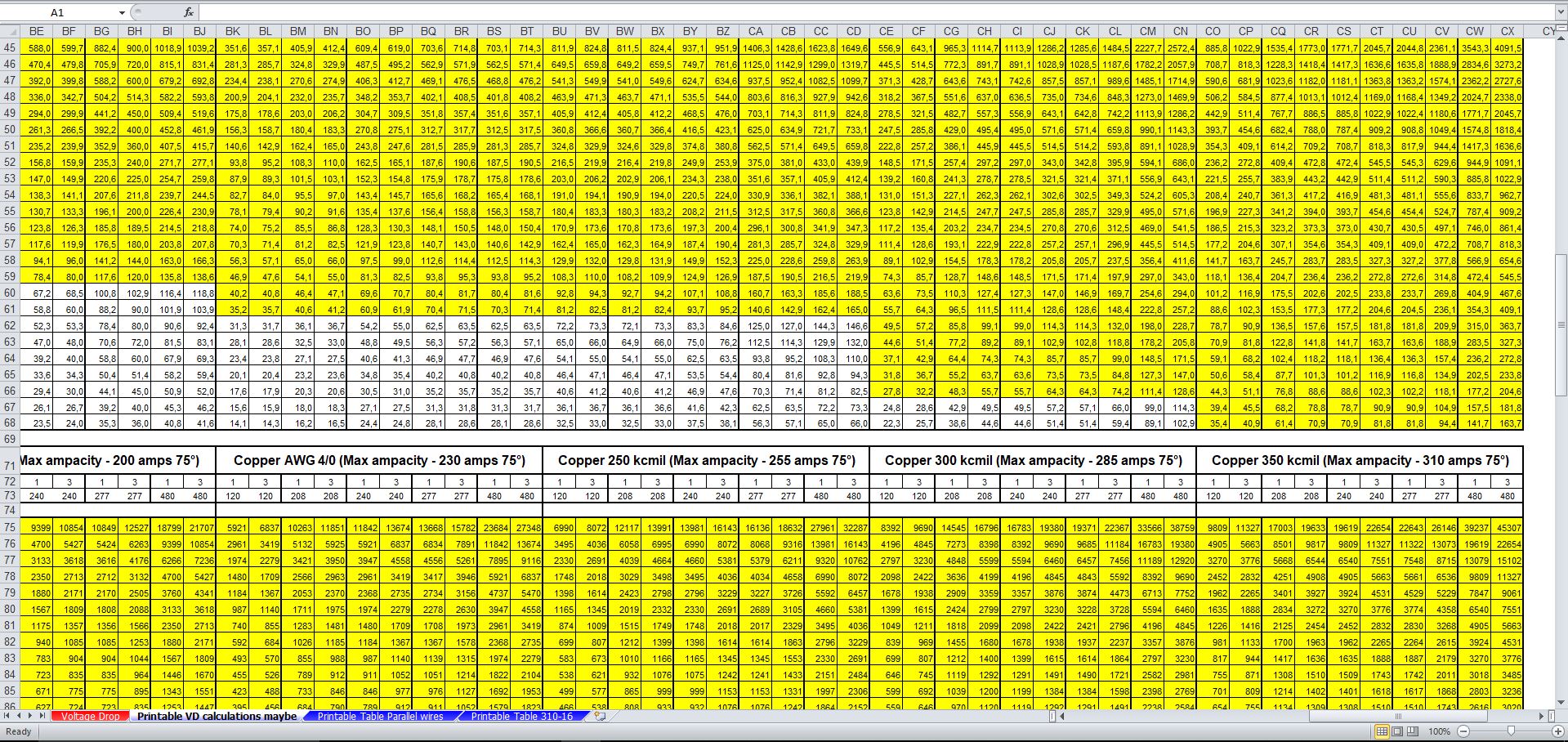

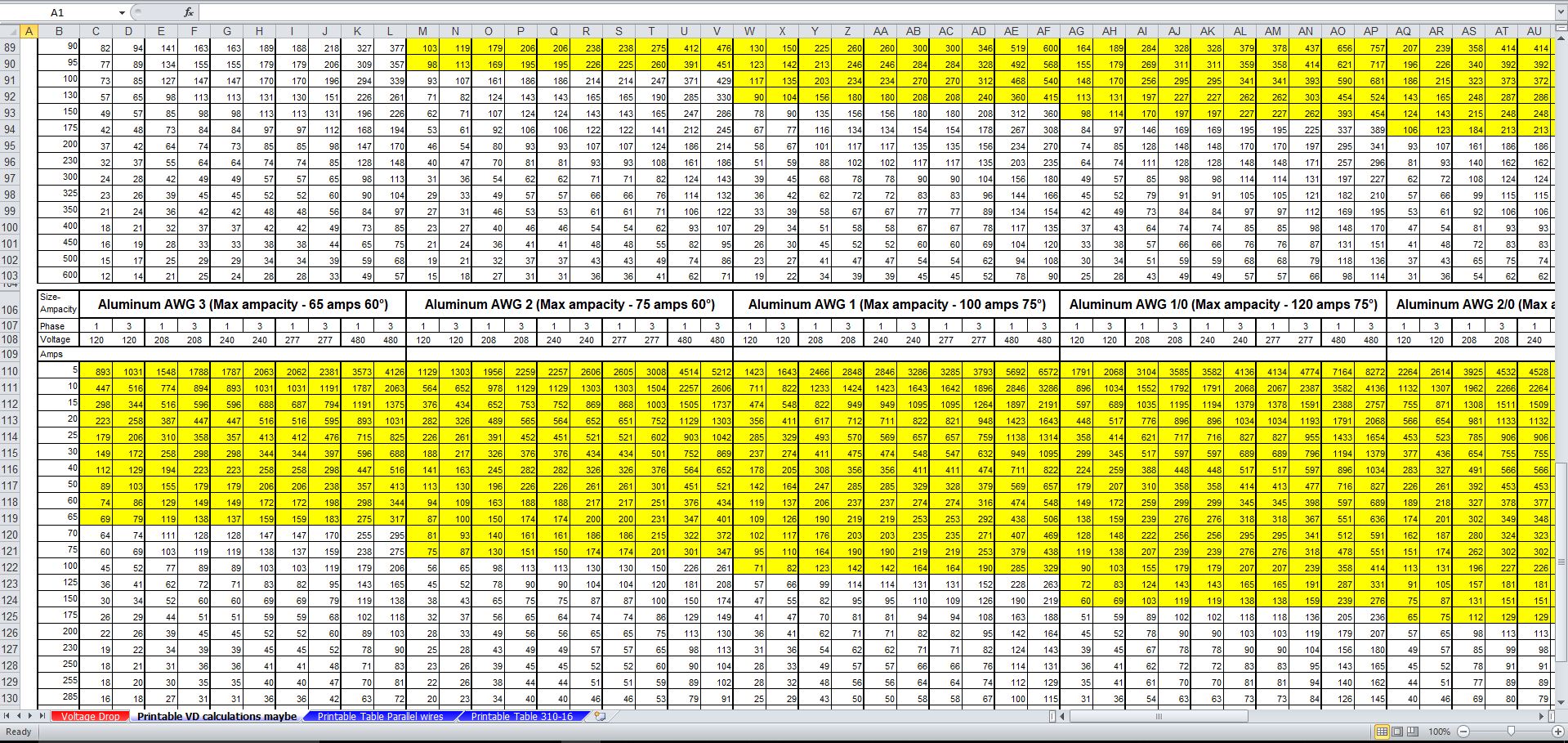

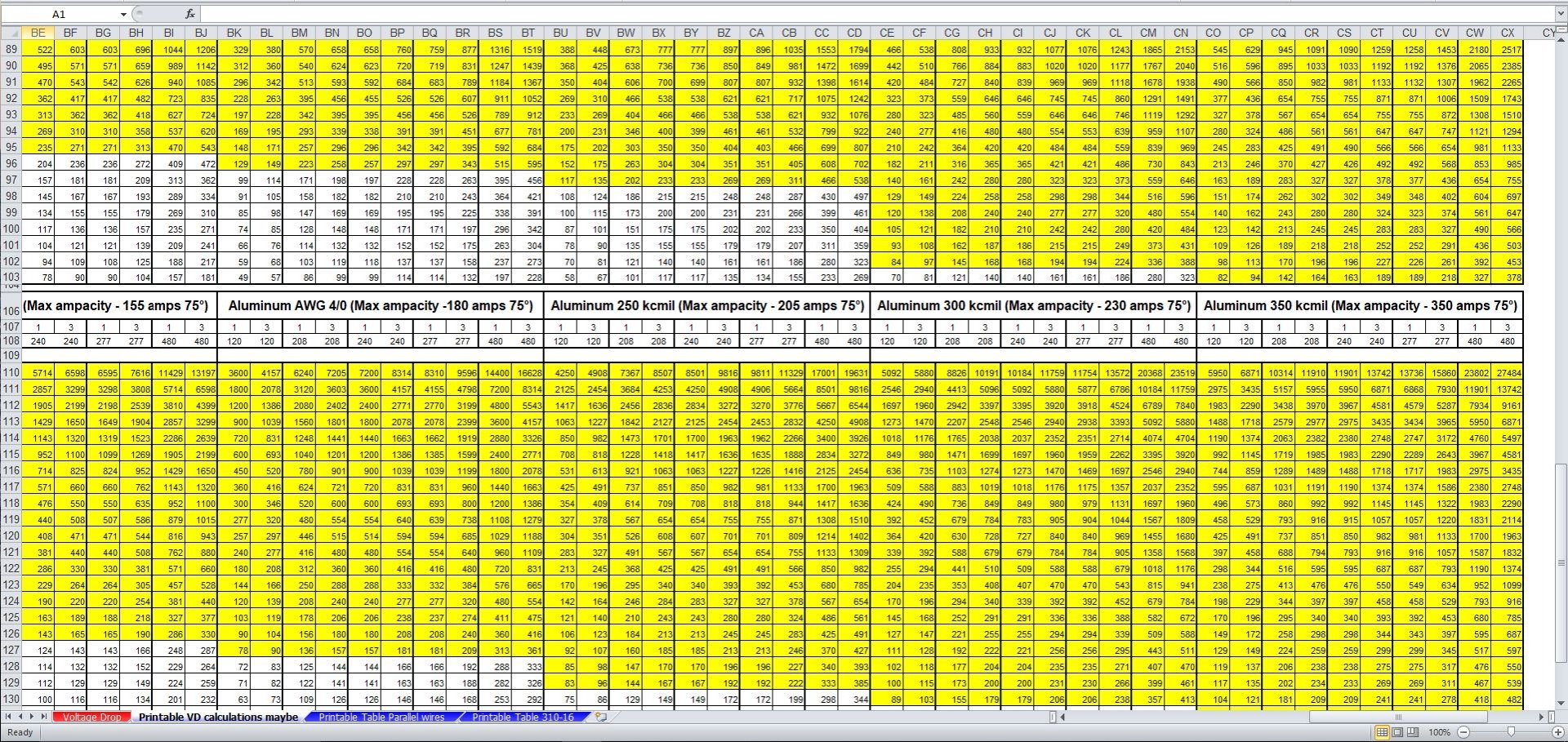

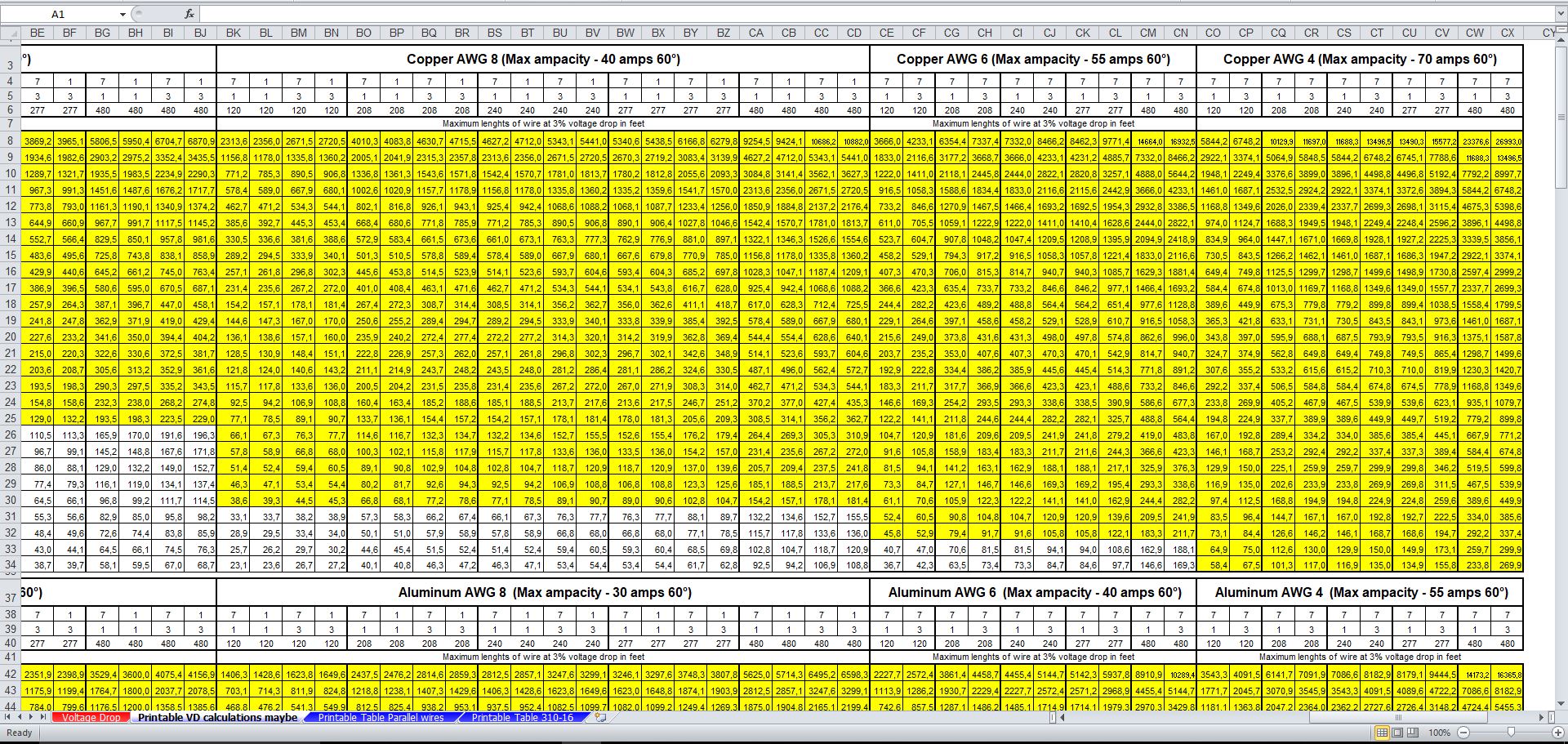

Excel Calculator to work out voltage drop.

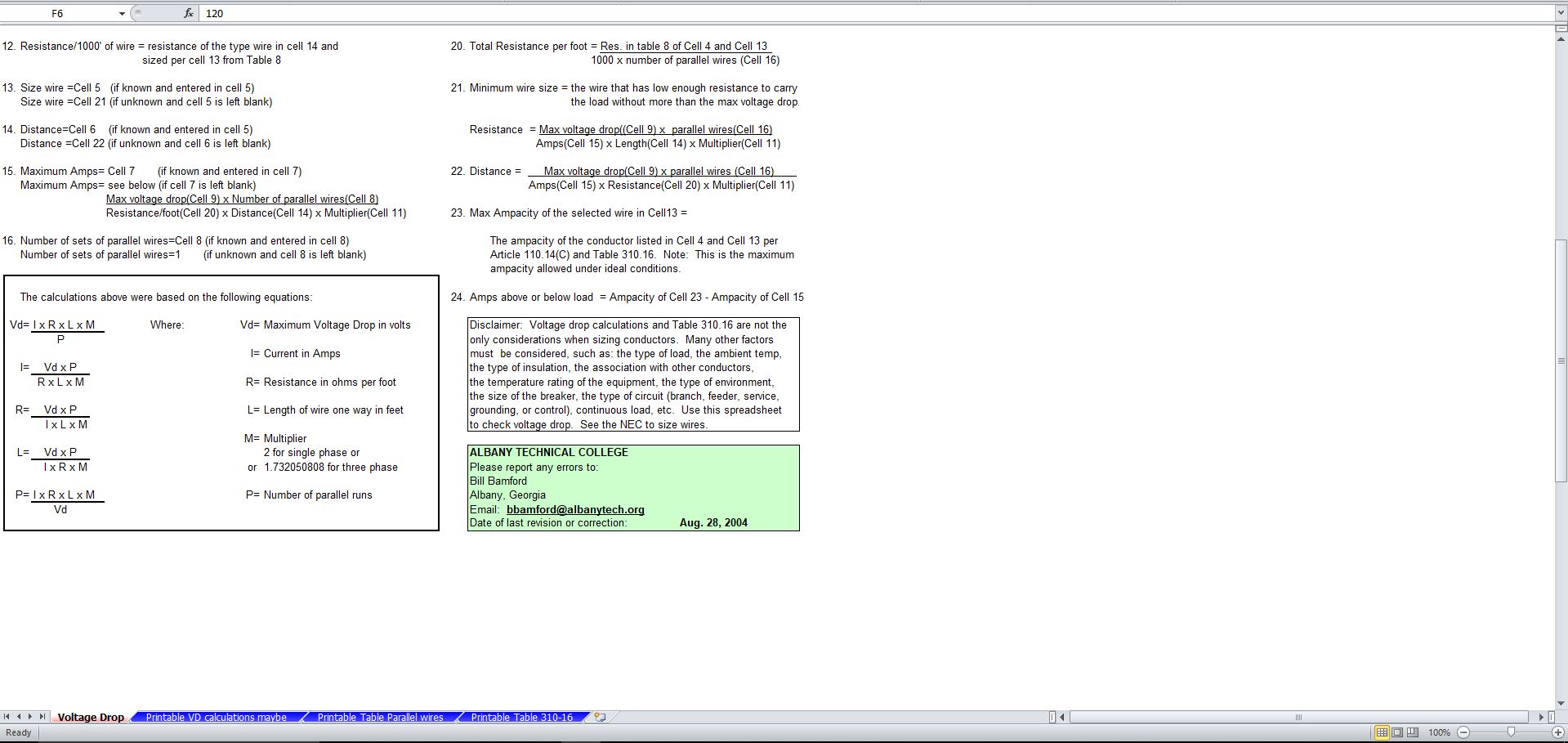

The drop calculations presented in this spreadsheet were all based on the resistance values shown in Chapter 9 Table 8 of the National Electric Code. The only thing considered in this spreadsheet is voltage drop.
There are many other factors that have an impact on wire size. When sizing wire, you should refer to the entire National Electric Code. As well as the main spreadsheet containing the calculations, this tool has 3 more sheets alongside. These are:

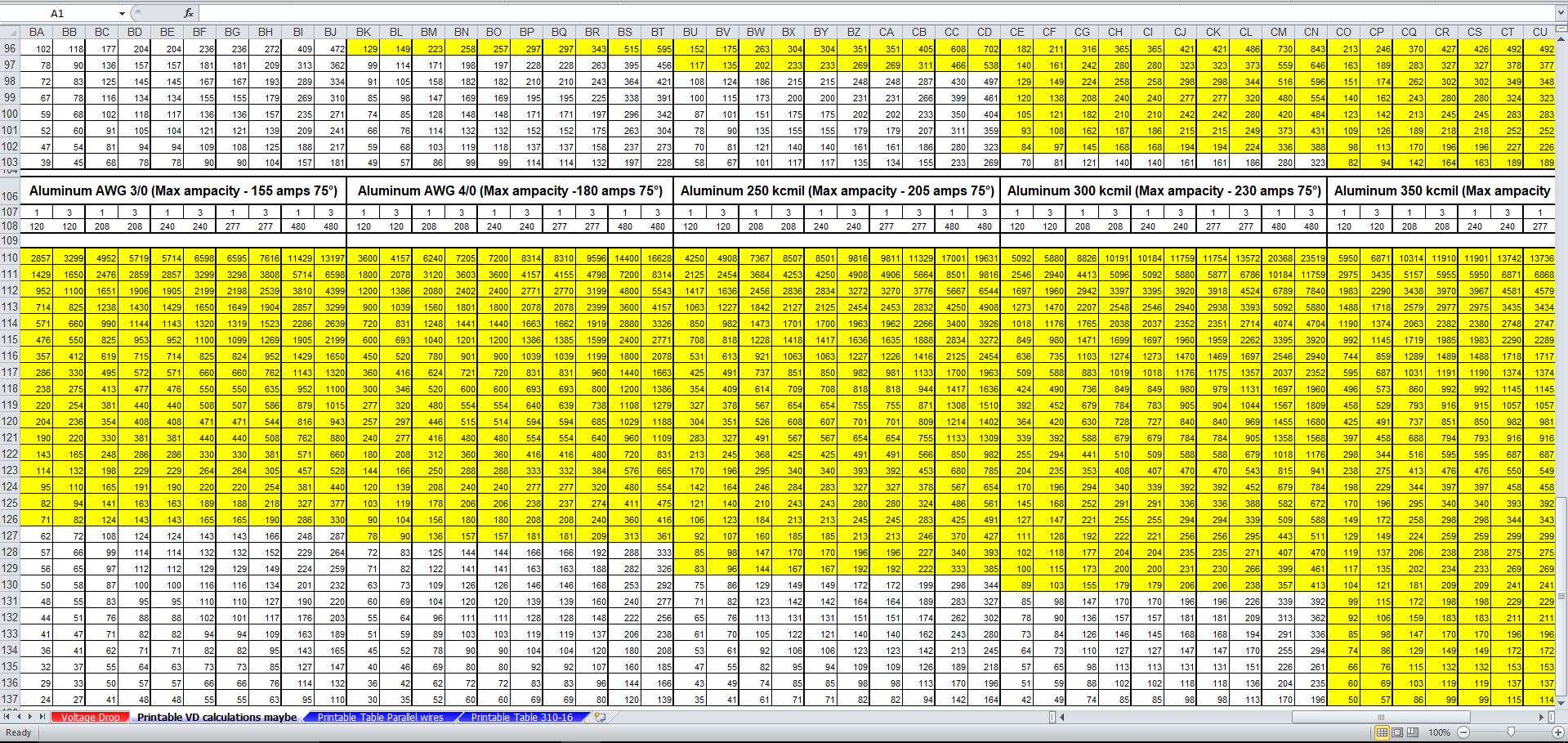

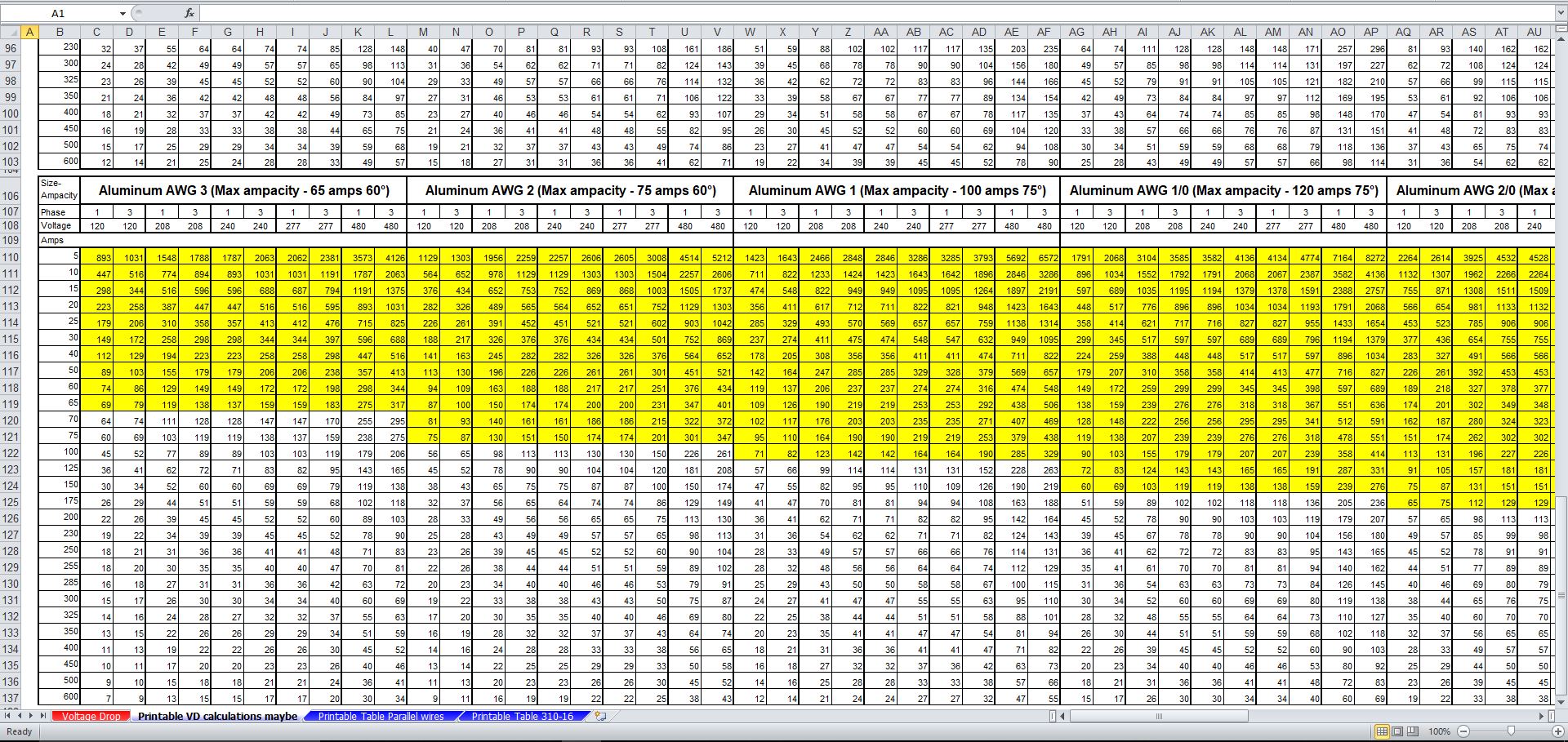

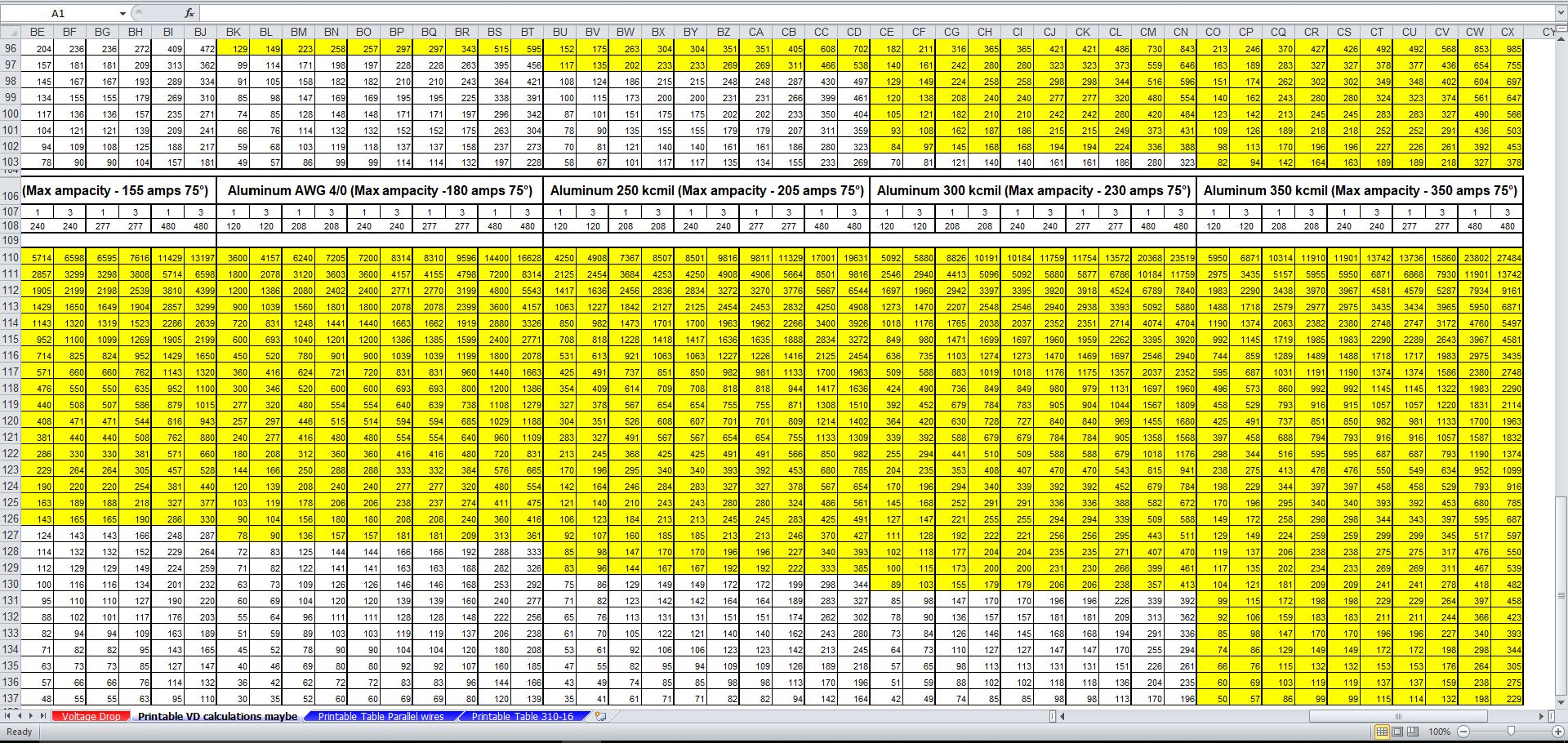

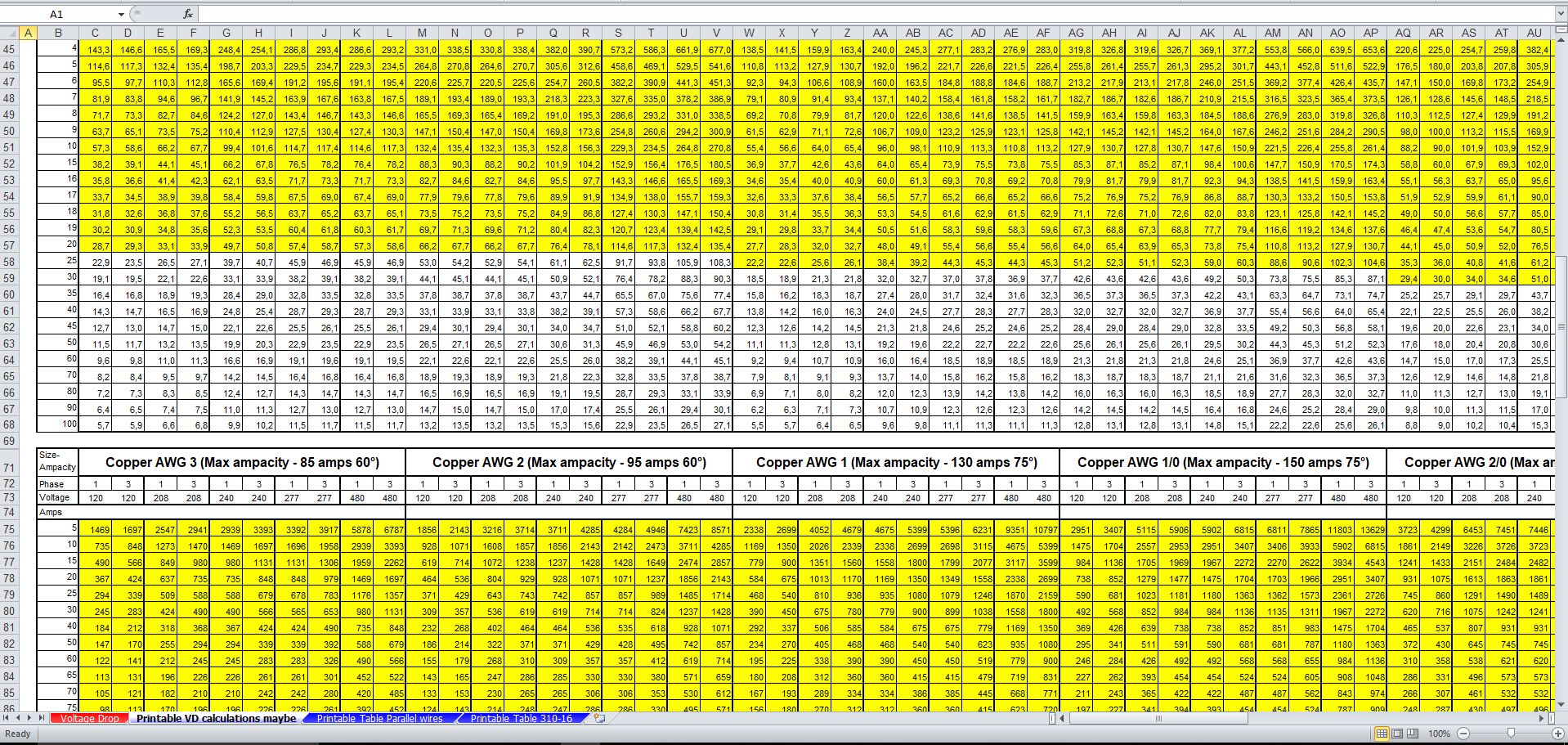

Printable VD calculations

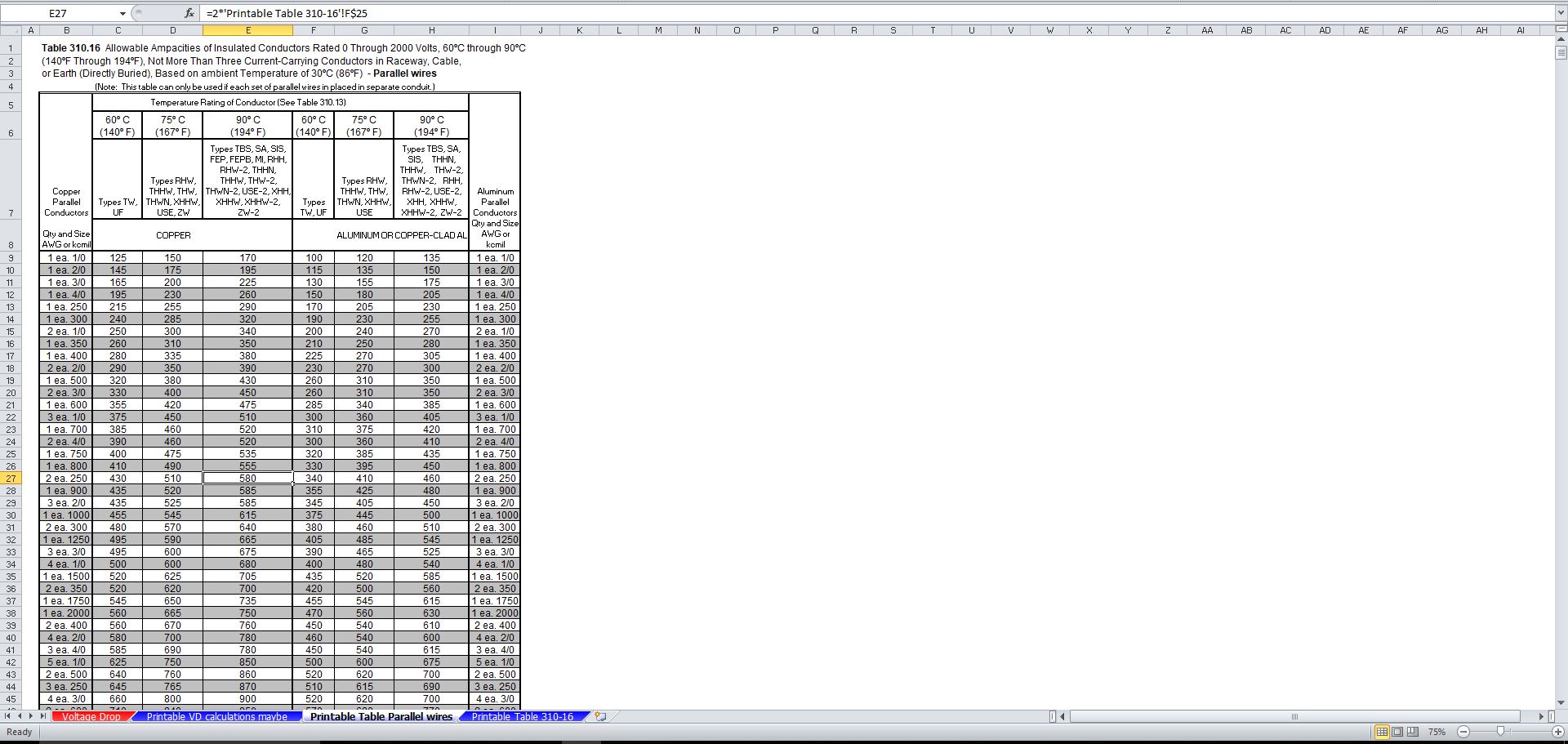

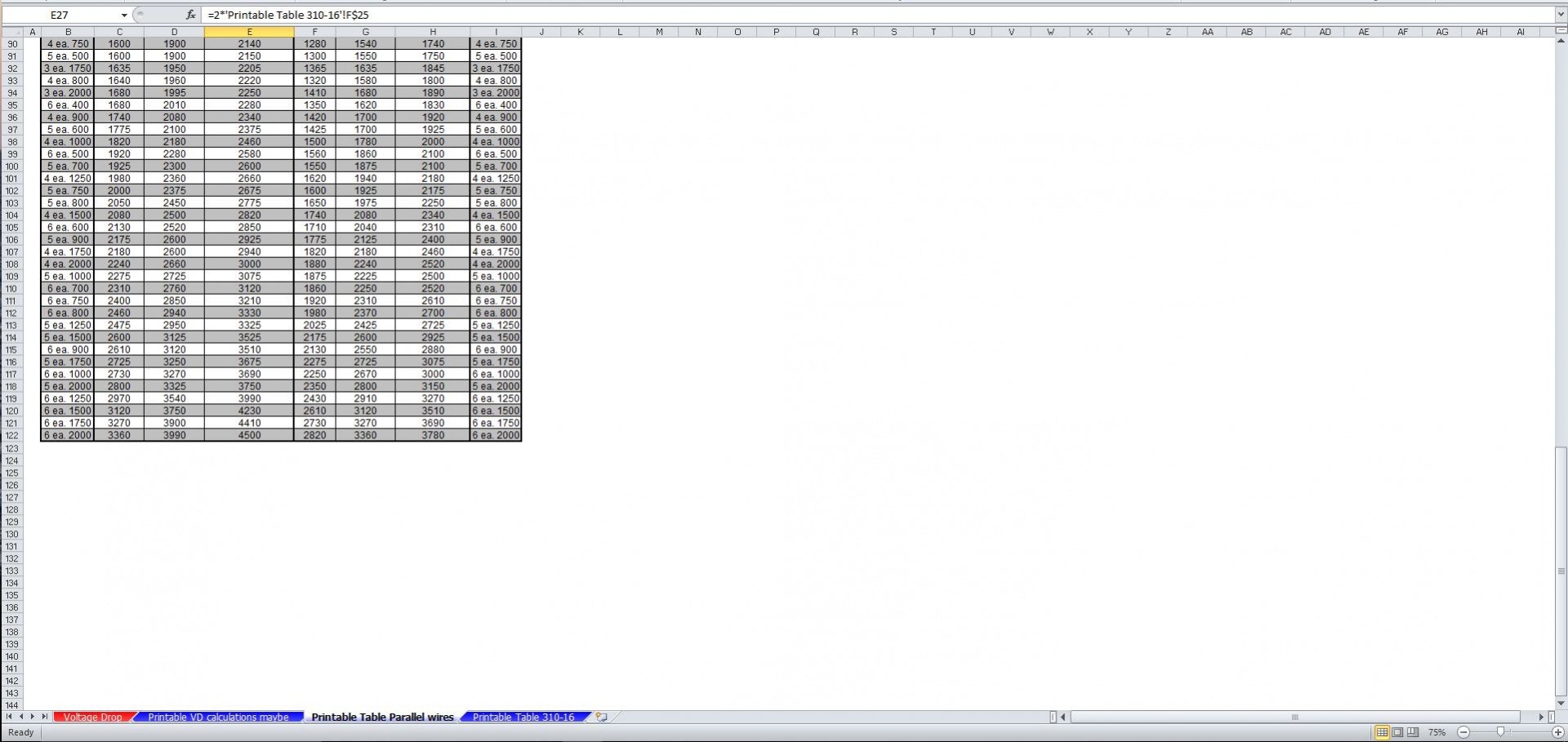

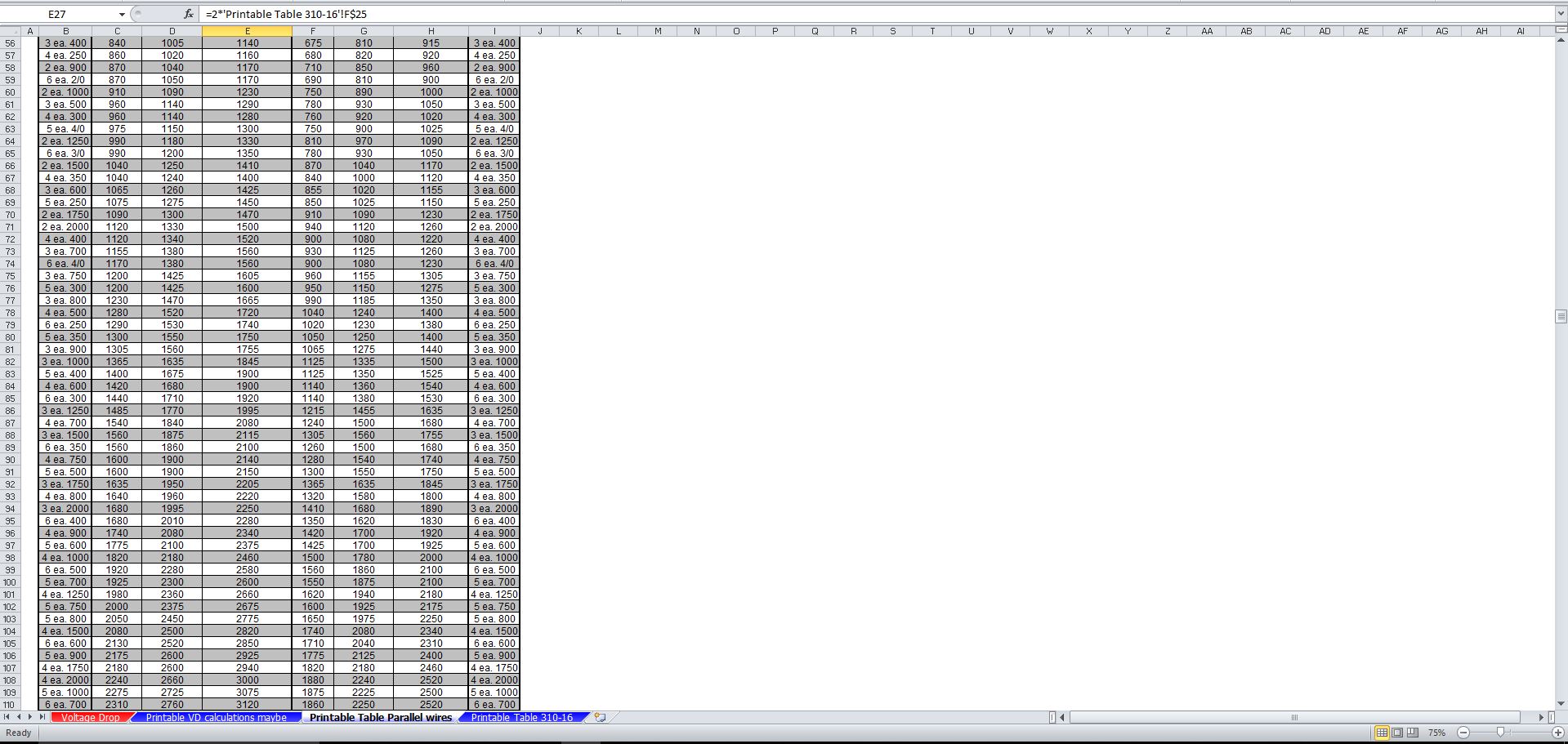

Printable Table Parallel wires

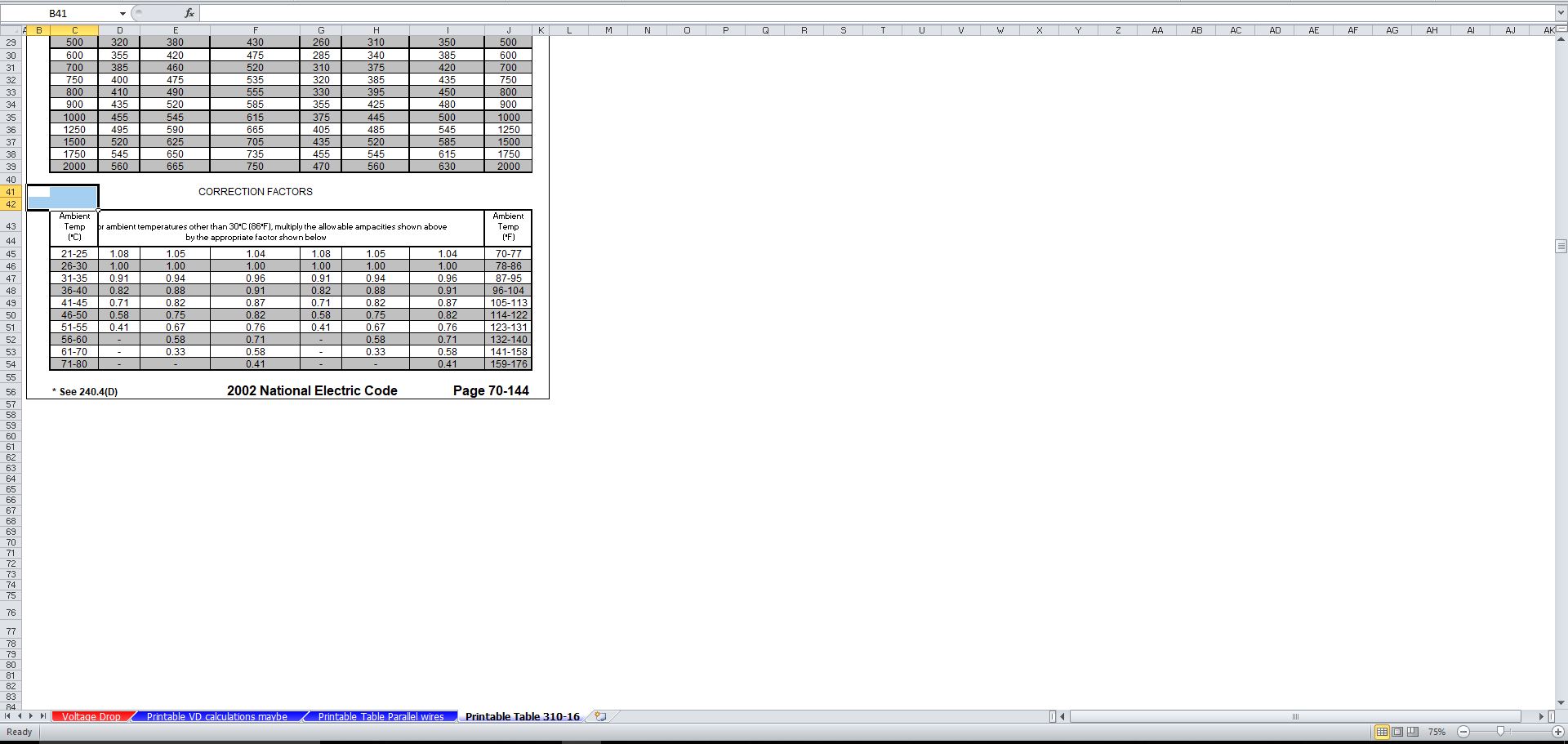

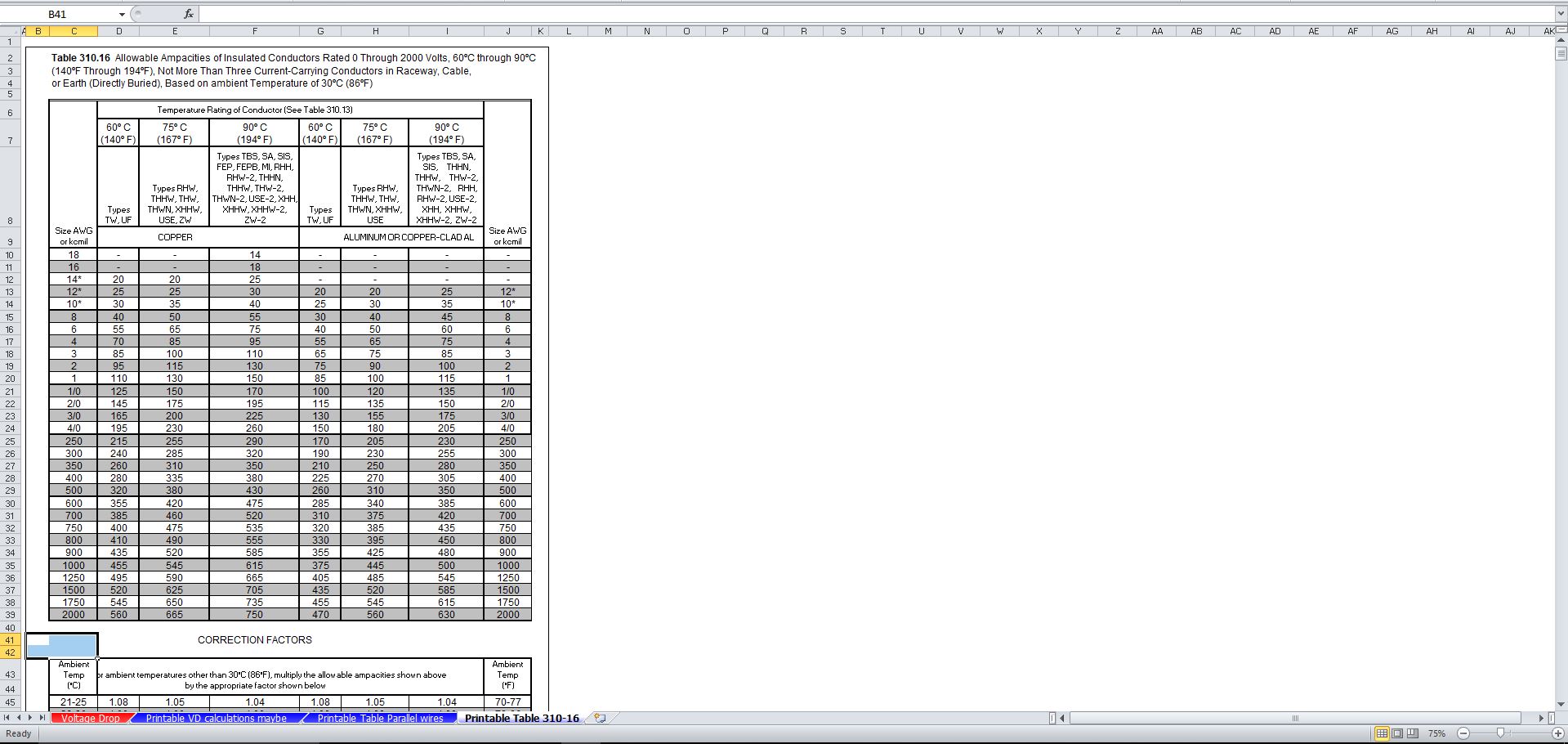

Printable Table 310-16
Do not only consider Voltage Drop Calculations and Table 310.16 when sizing conductors. It is necessary that you consider many other factors such as:
the ambient temperature
the type of insulation
the type of load
the temperature rating of the equipment
the size of the breaker
the type of environment
the type of circuit
This spreadsheet should be used to calculate voltage drop. Refer to NEC to size wires.
This business tool includes
1 Downloadable Voltage Drop Calculator in Excel
Albany Technical College offers you this business tool for free!
download for free
Add to bookmarks
- Eric Isenhoff(last updated: 03/01/2019 12:42)
- Pravinchandra Mehta(last updated: 12/11/2018 14:27)
- Mauro Pace(last updated: 20/10/2018 14:34)
- Ujjwal Katwal(last updated: 11/10/2018 10:14)
- yasser awwad(last updated: 15/03/2018 19:41)
