Residential Load Calculation Spreadsheet

Spreadsheet in Excel to help you calculate residential load.

Description
This spreadsheet has been made to help electrical contractors by providing a step-by-step document to calculate a service demand.

This spreadsheet can be used to calculate the load of:

1. Appliance demand
2. Dryer demand
3. Service demand
4. Range demand
5. General lighting demand

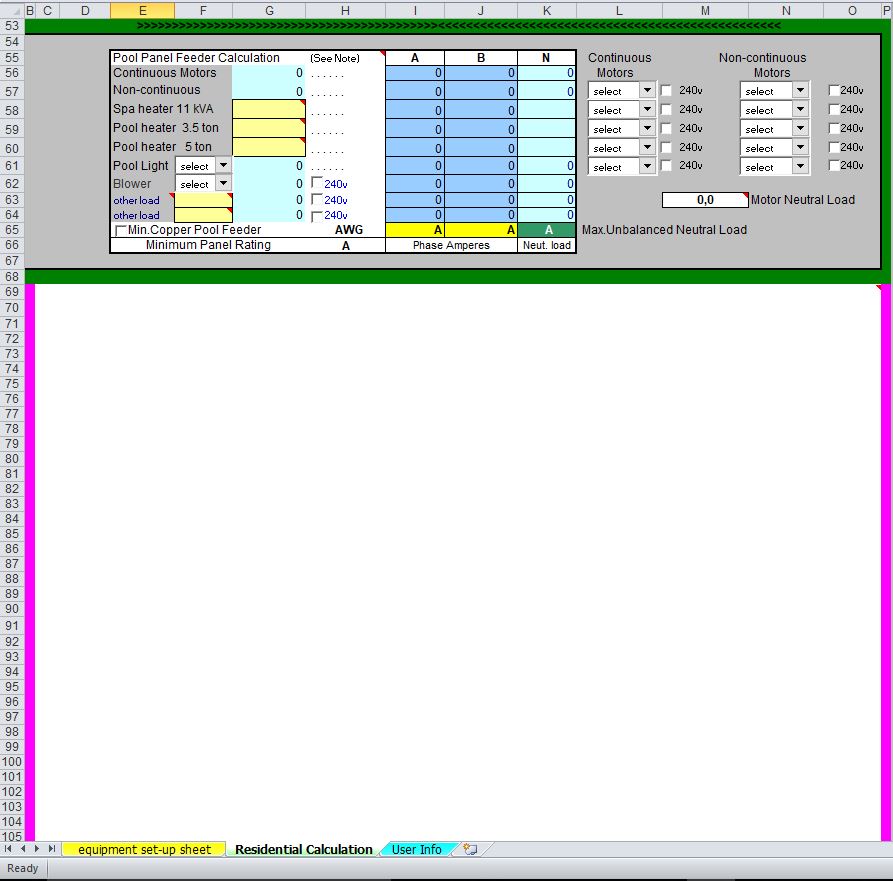

6. Heating and CU

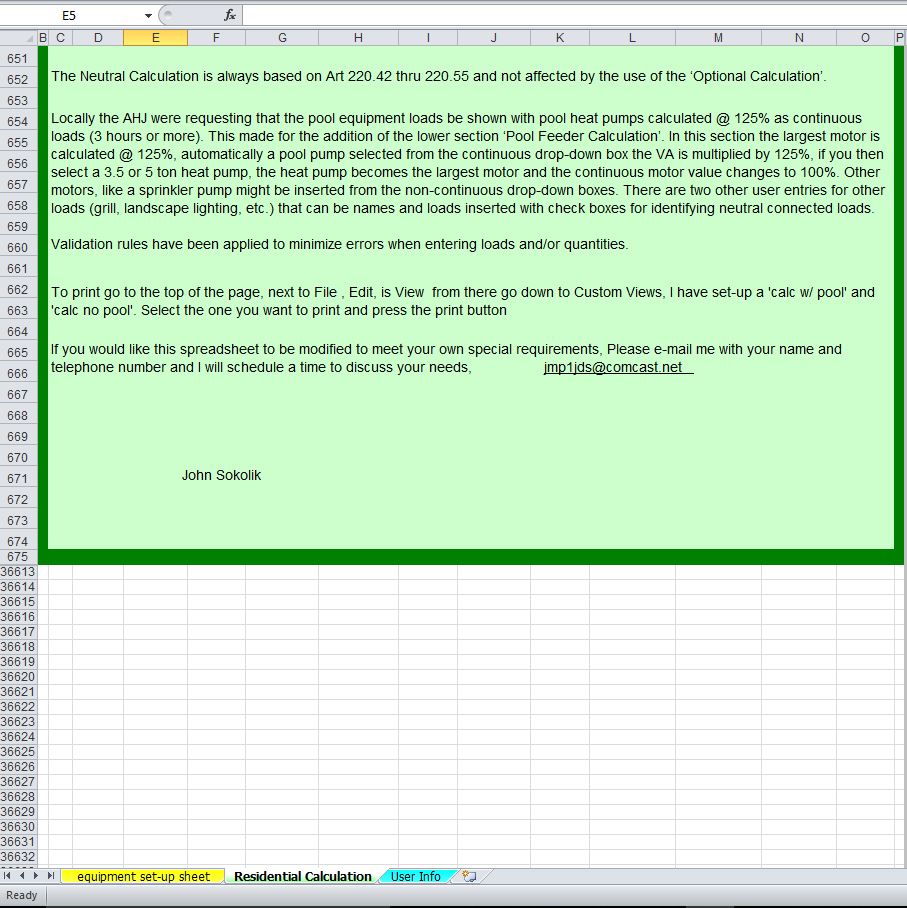

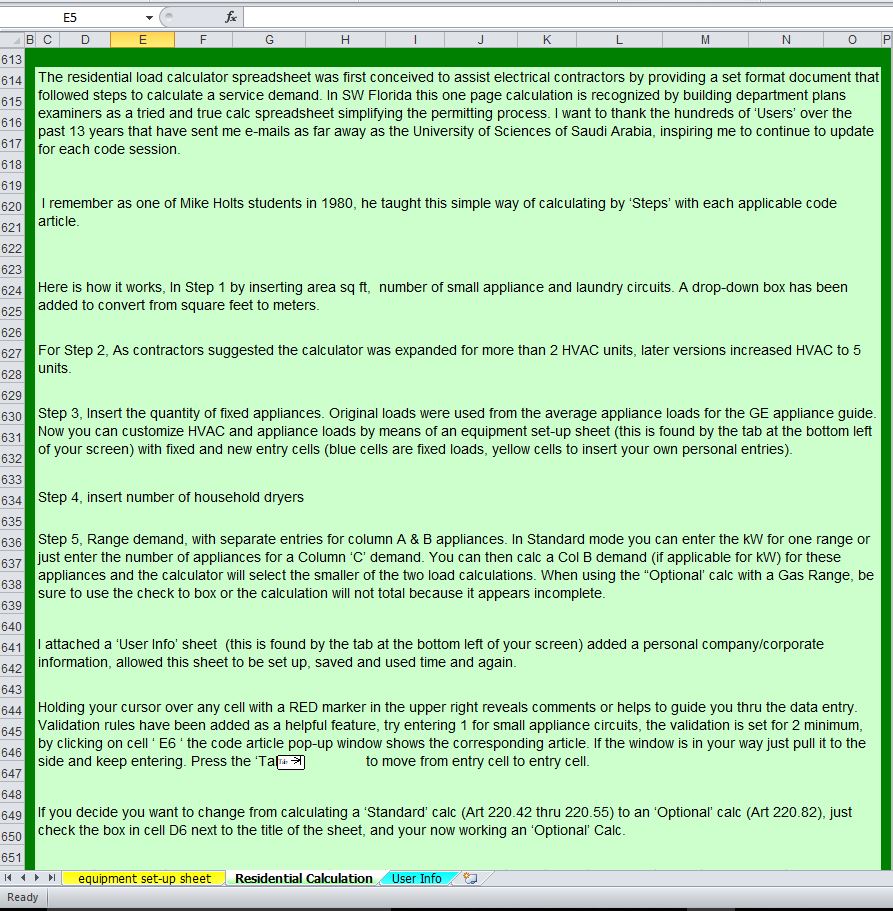

Notes & Instructions by the author included on the 2nd sheet: "Residential Calculation."

*Originally shared on electrical-engineering-portal.com*

This Best Practice includes
1 Downloadable Residential Load Calculator Spreadsheet in Excel

John Sokolik offers you this Best Practice for free!
