Heat Exchangers Excel Workbook

Heat Exchangers Excel Workbook made to align with Chapter 12 of textbook "Rules of Thumb for Engineers" by Stephen Hall

Description

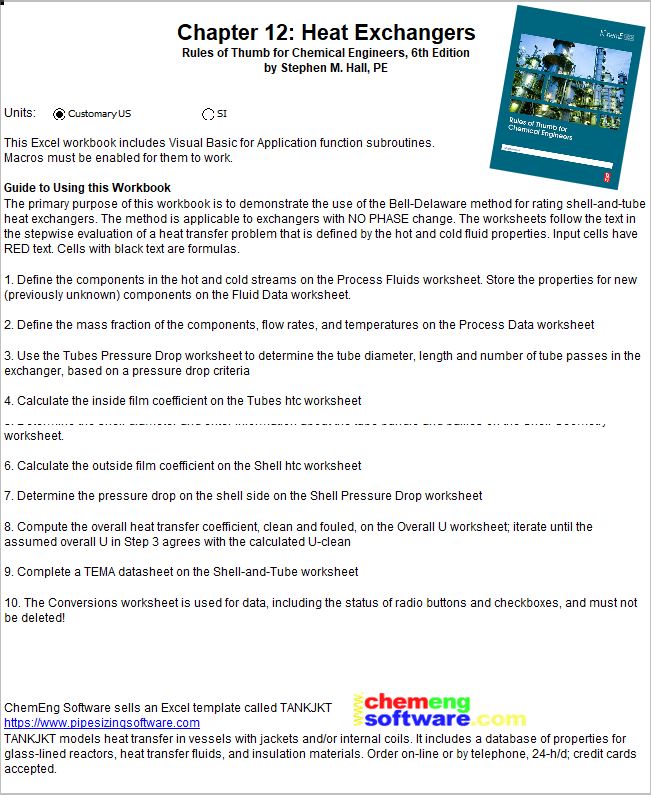

The principle objective of this workbook is to demonstrate the use of the Bell-Delaware method for rating shell-and-tube heat exchangers.

15 Sheets included:

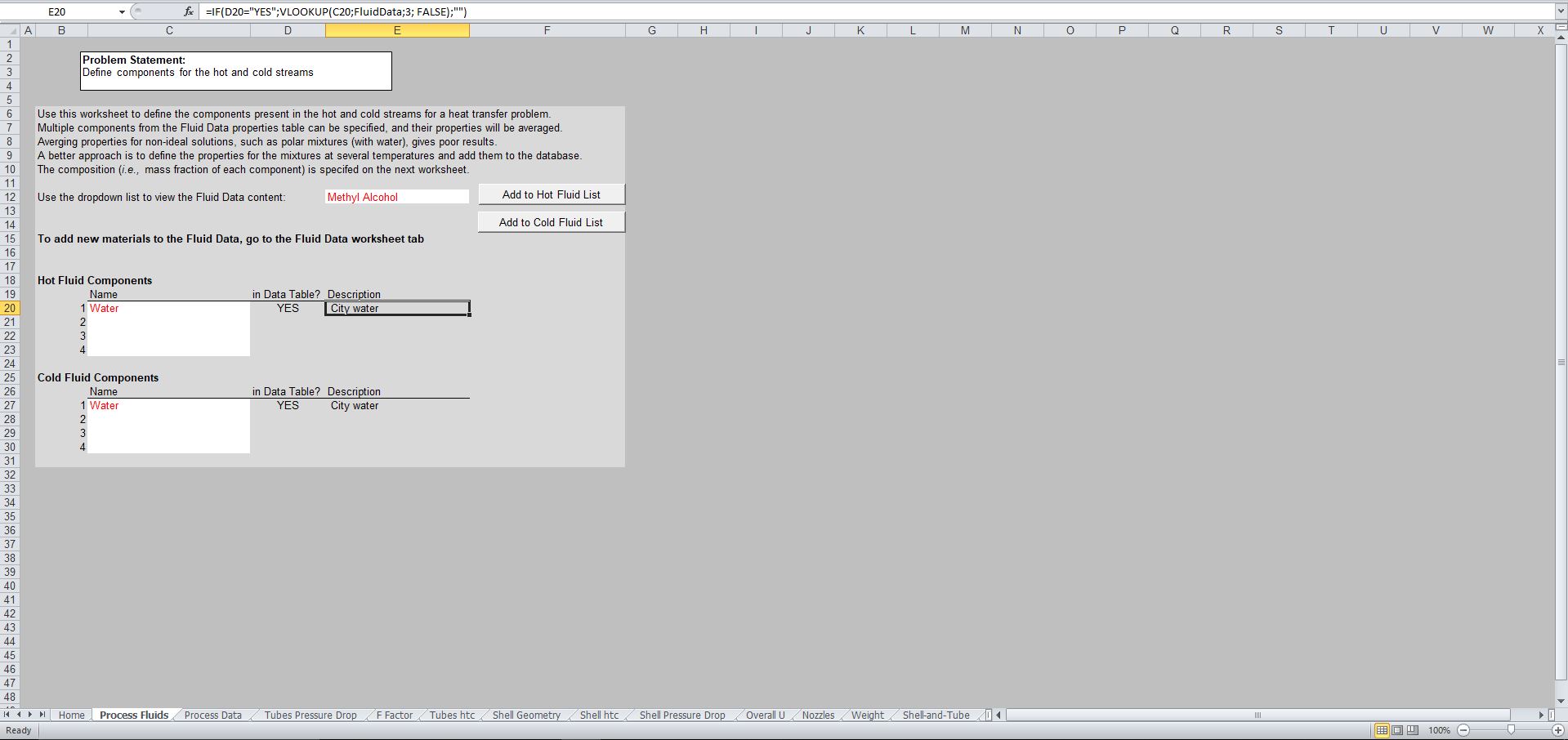

Process Fluids

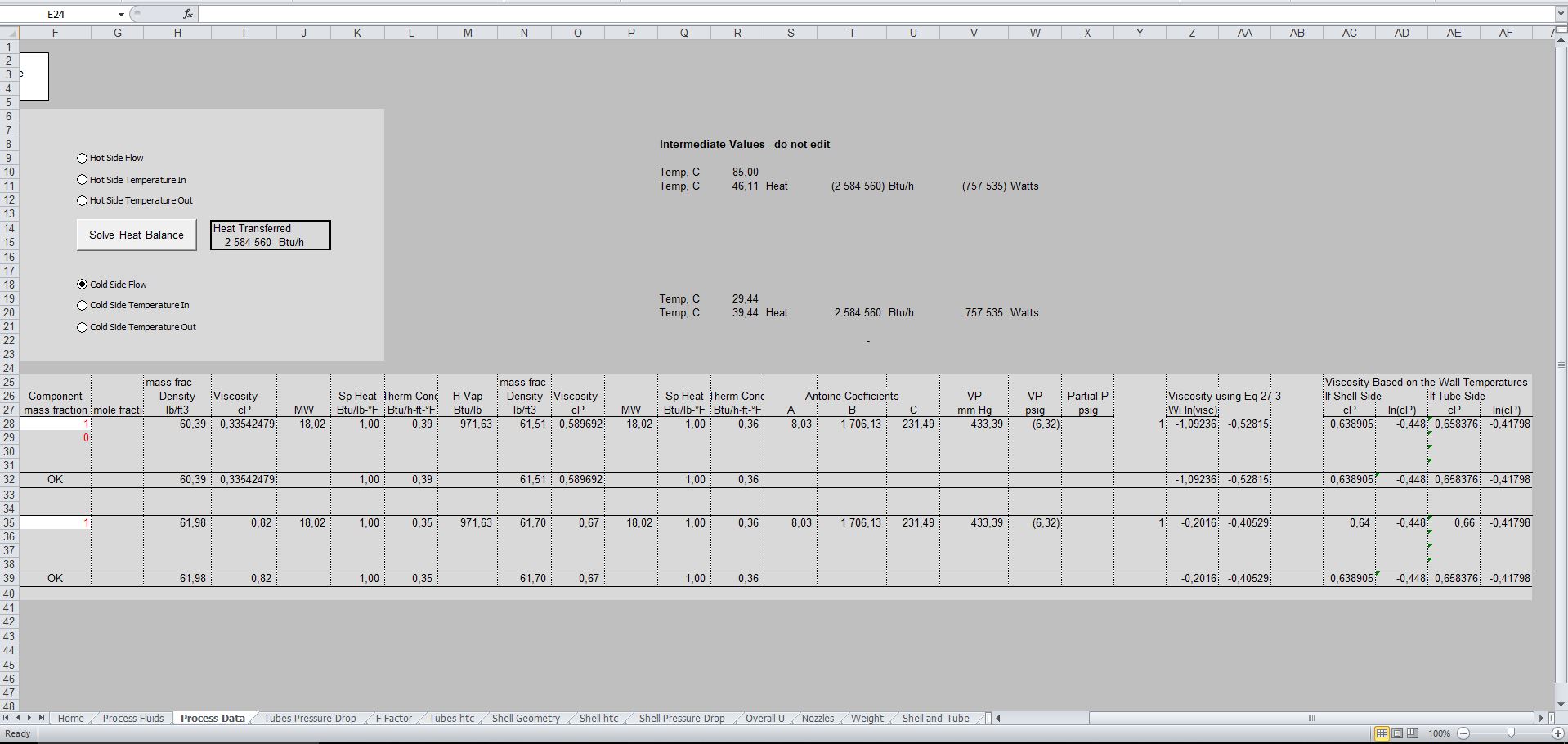

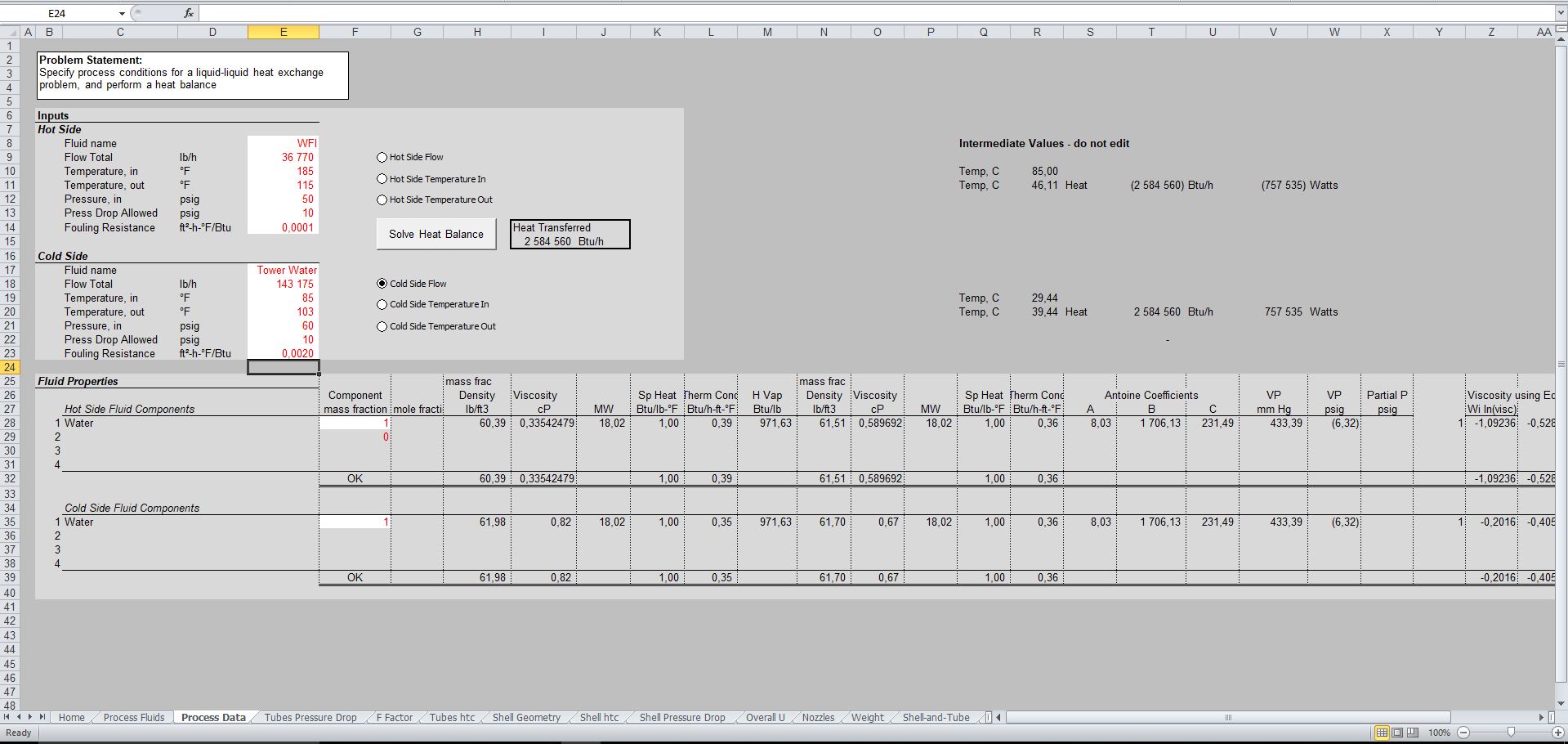

Process Data

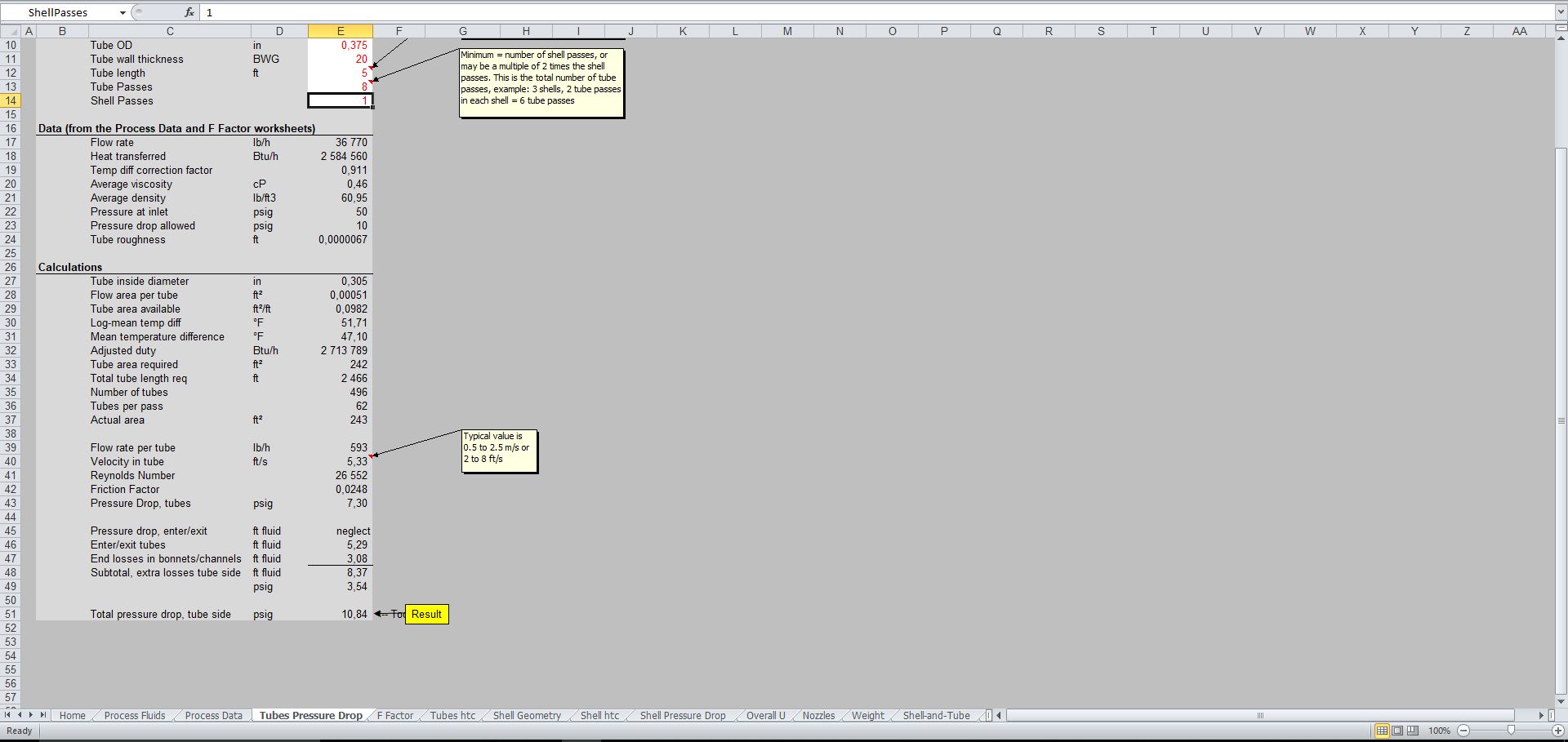

Tubes Pressure Drop

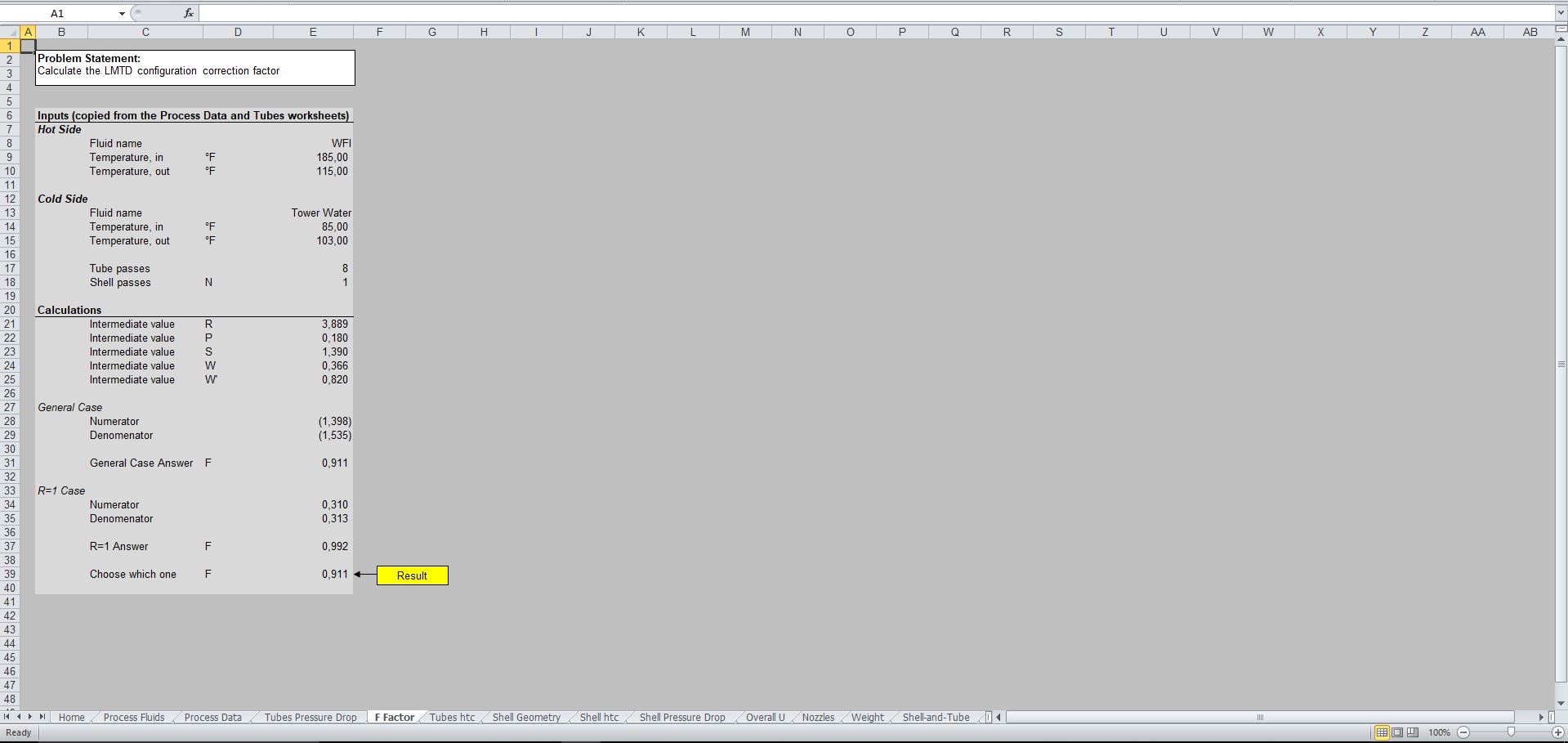

F Factor

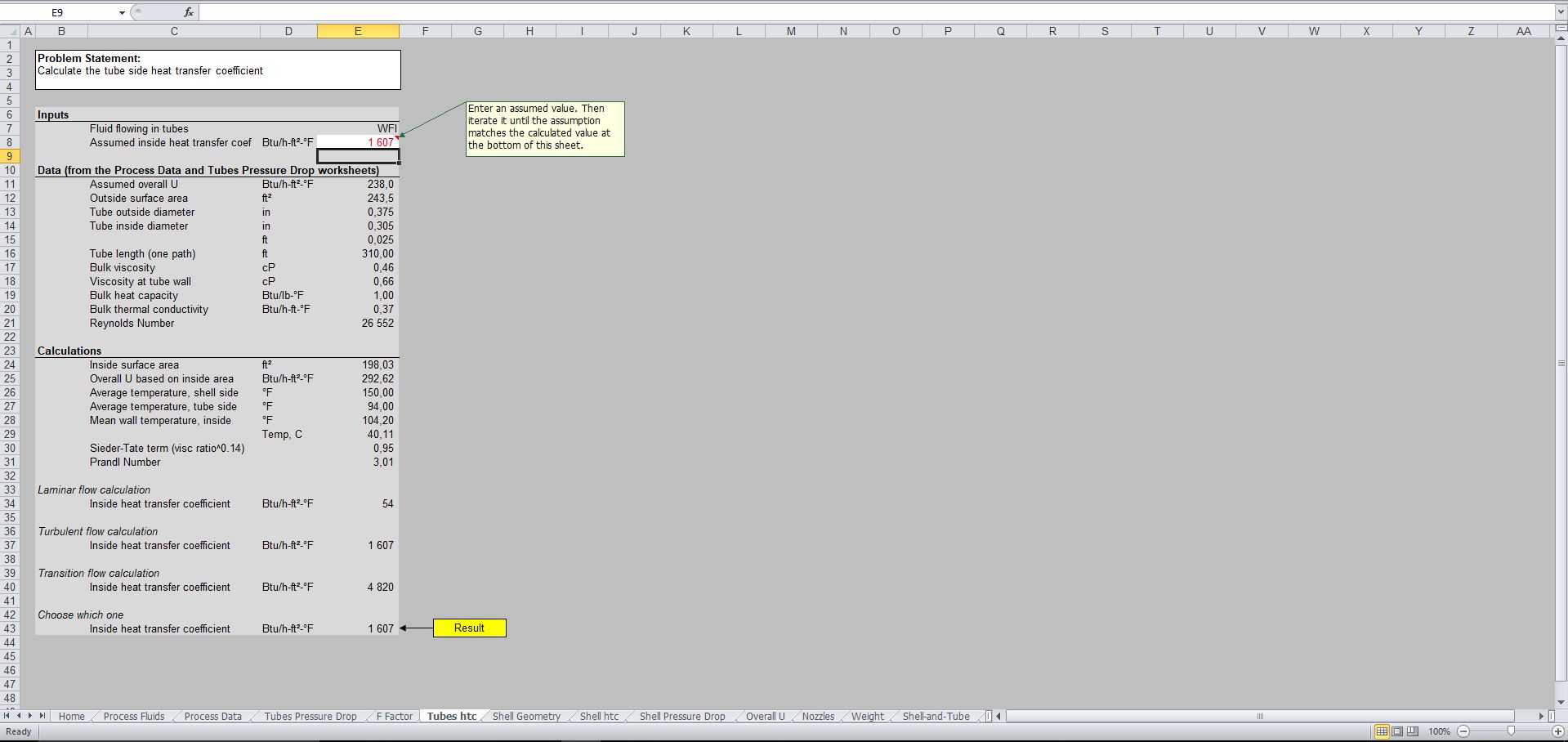

Tubes htc

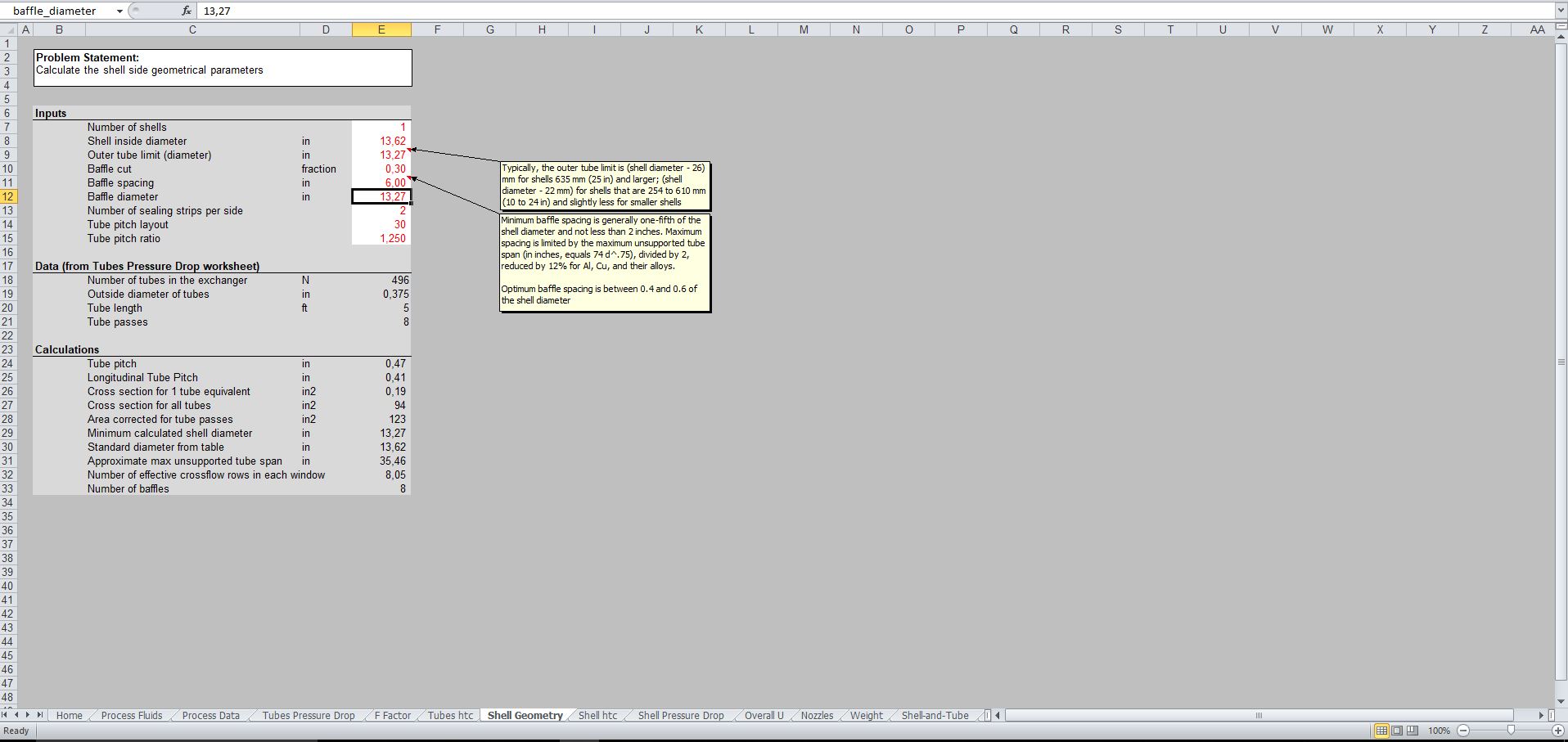

Shell Geometry

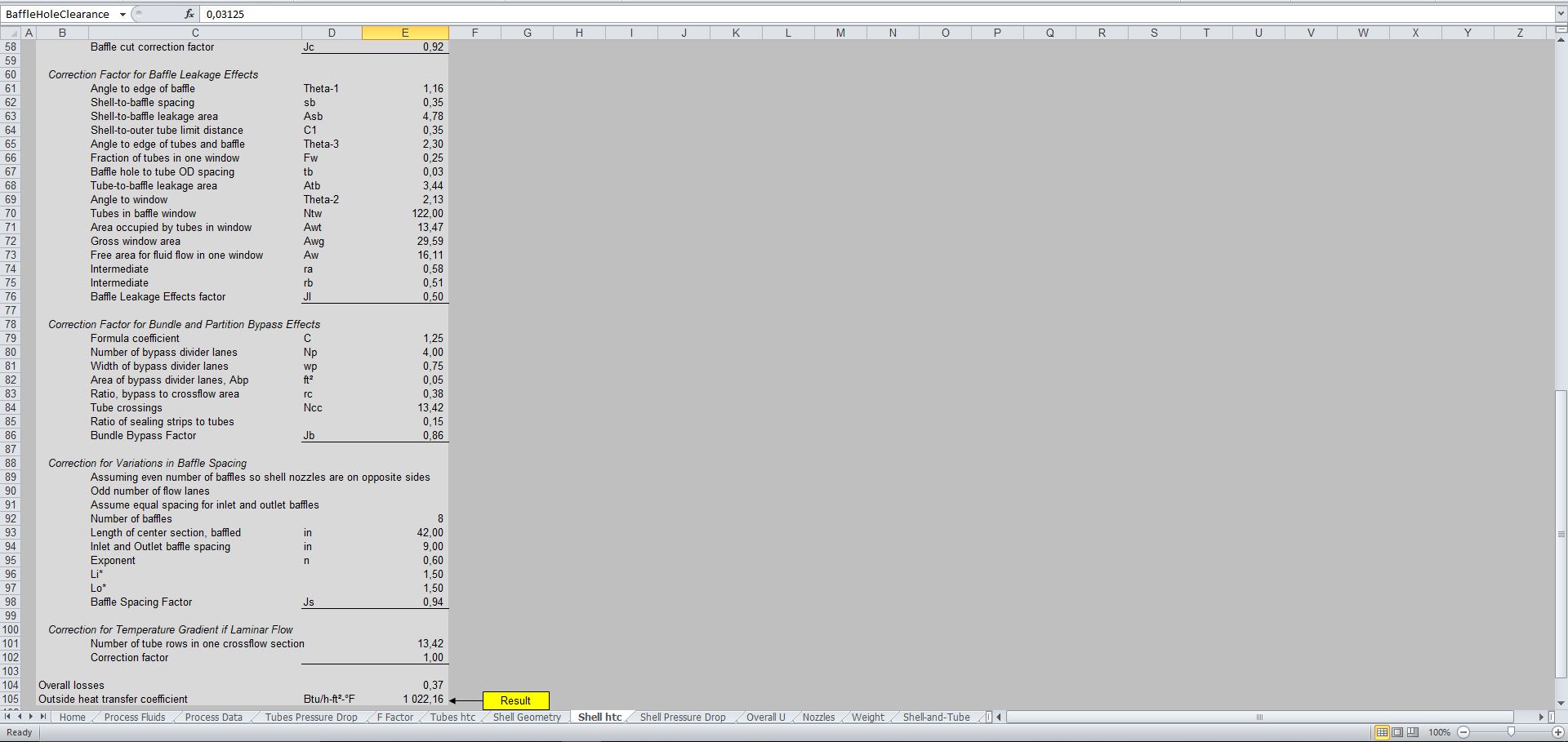

Shell htc

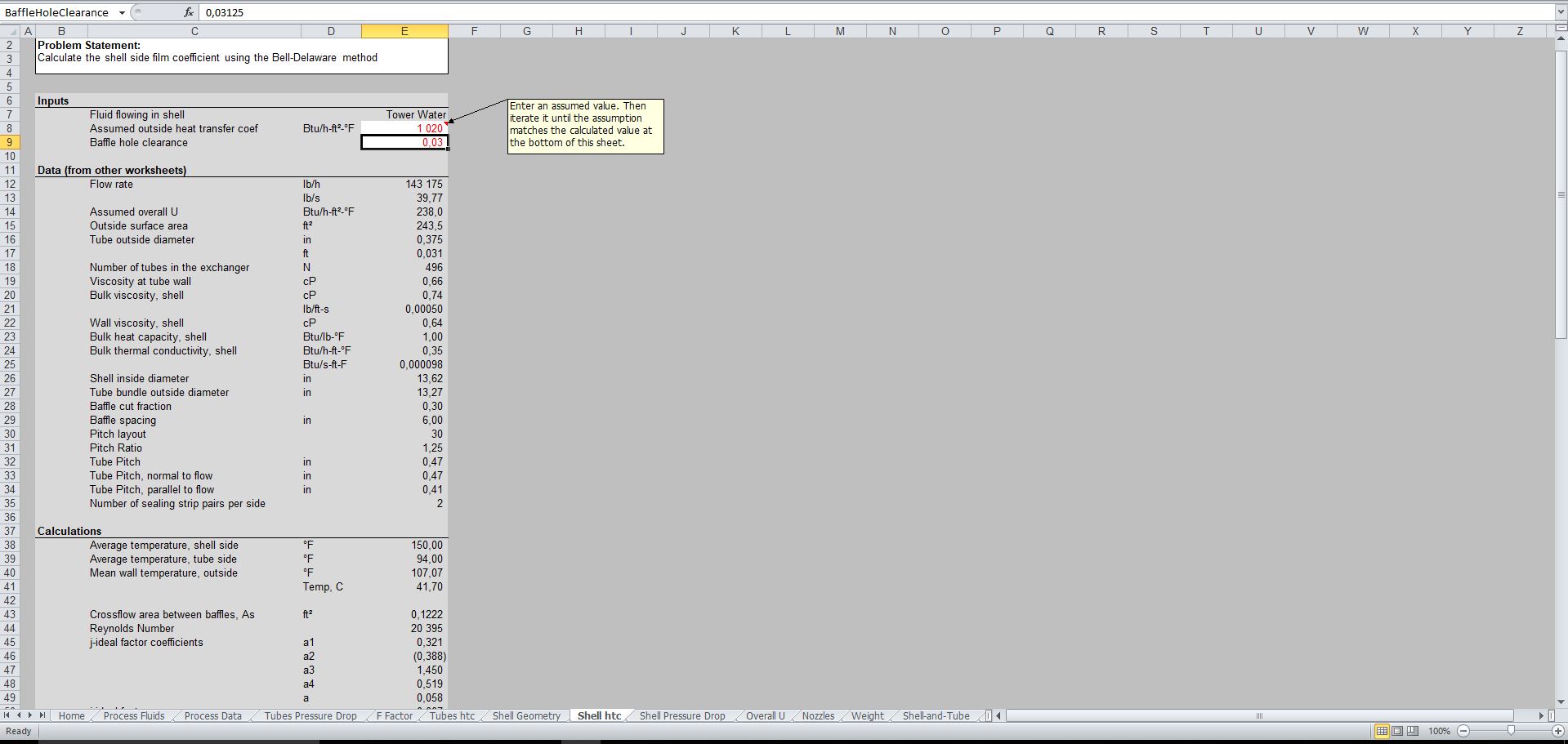

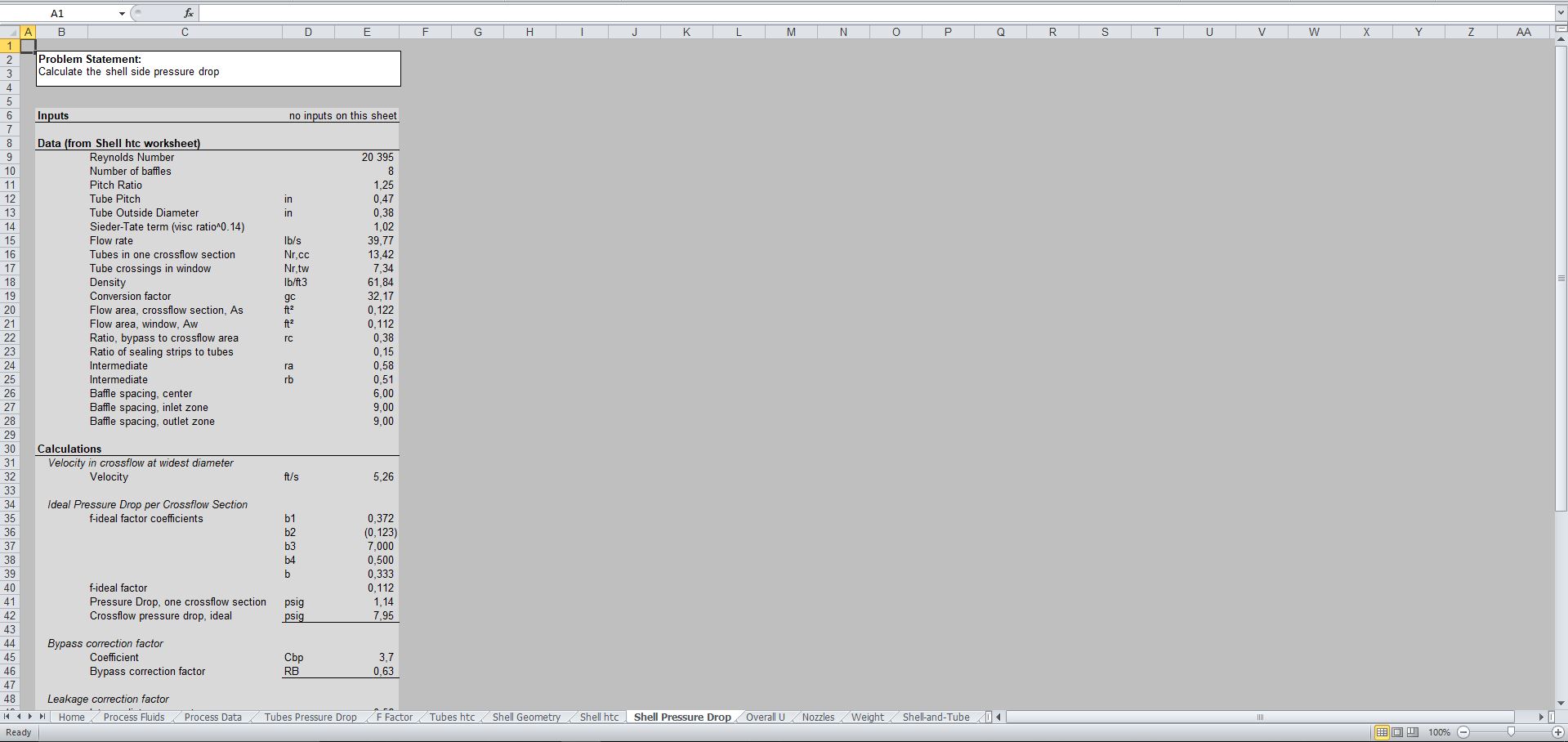

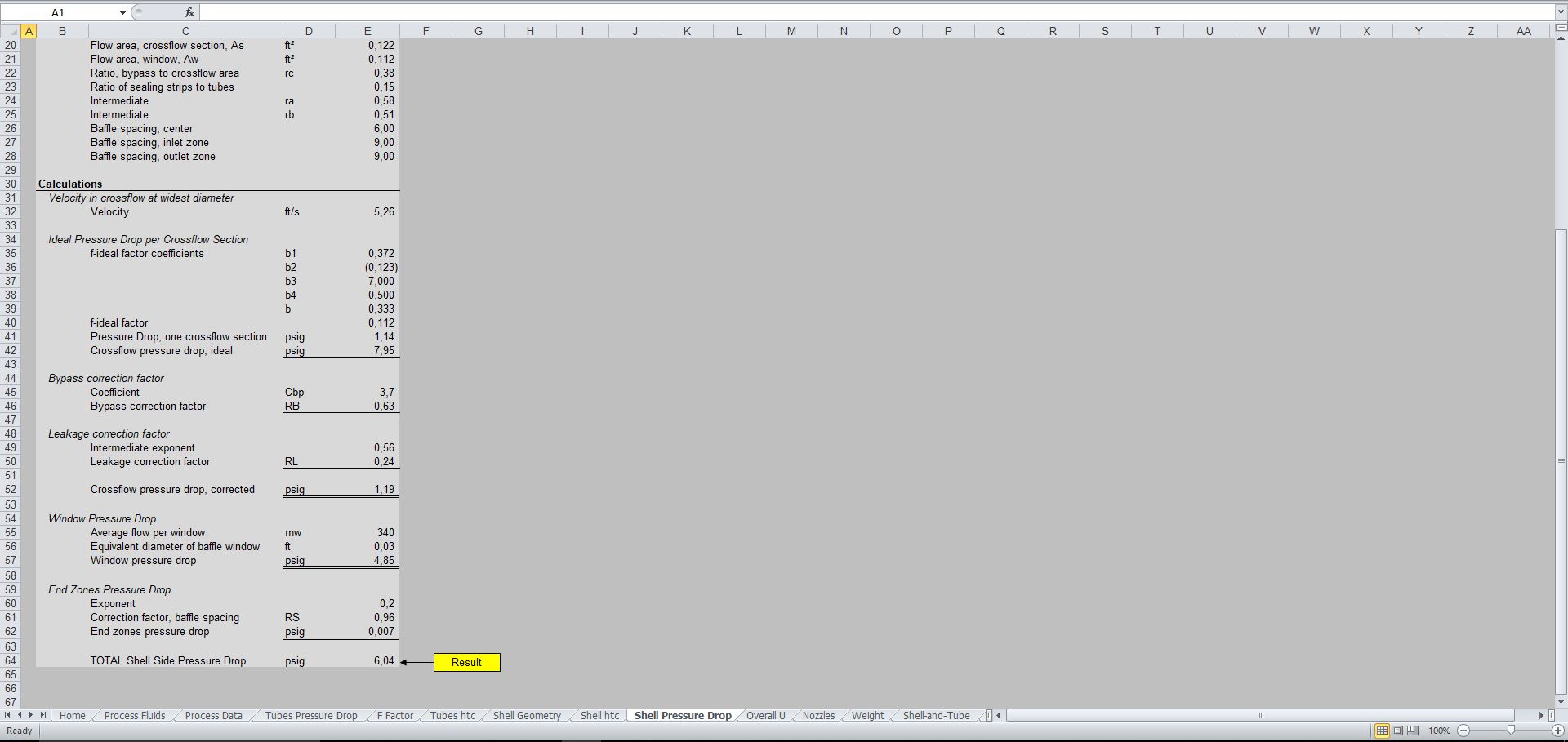

Shell Pressure Drop

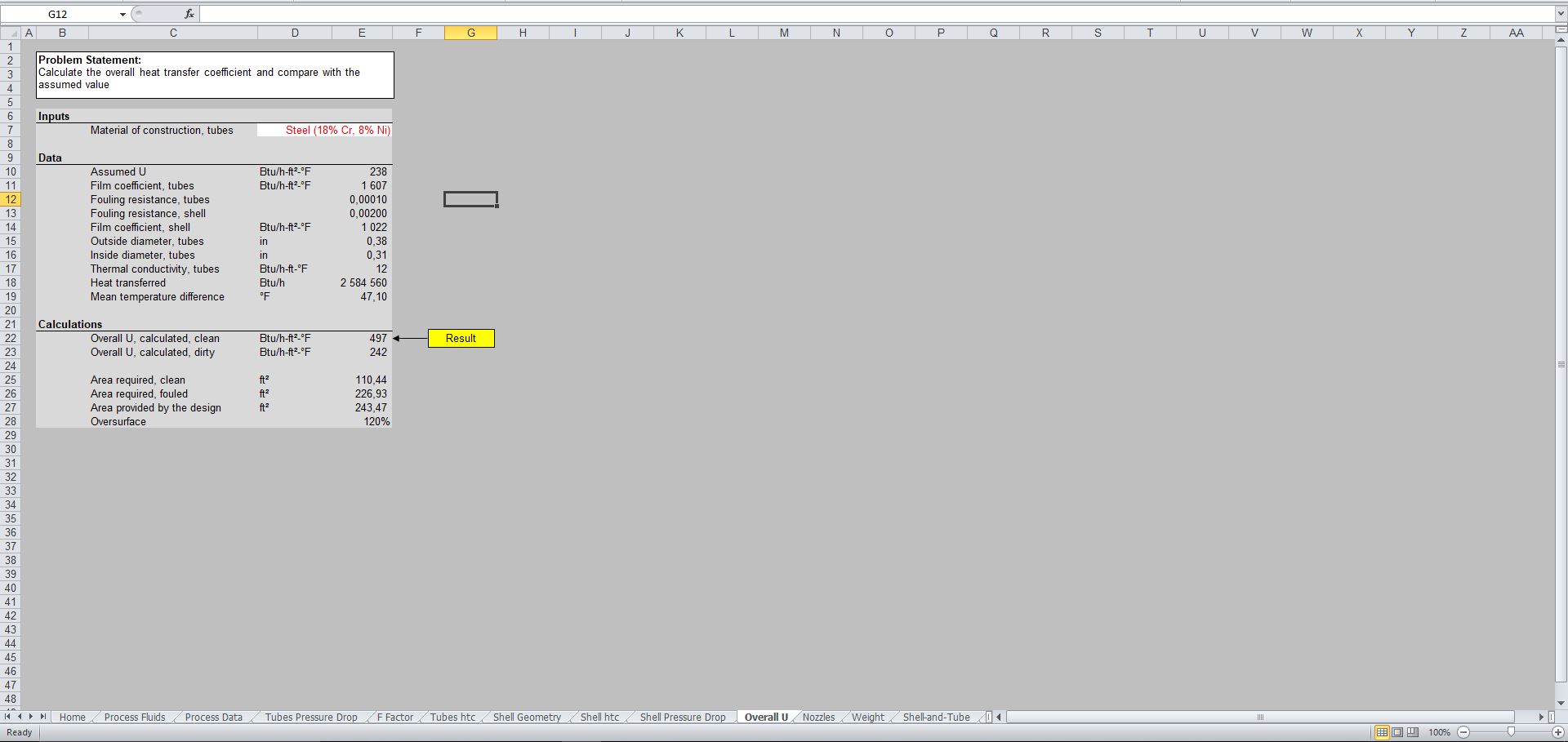

Overall U

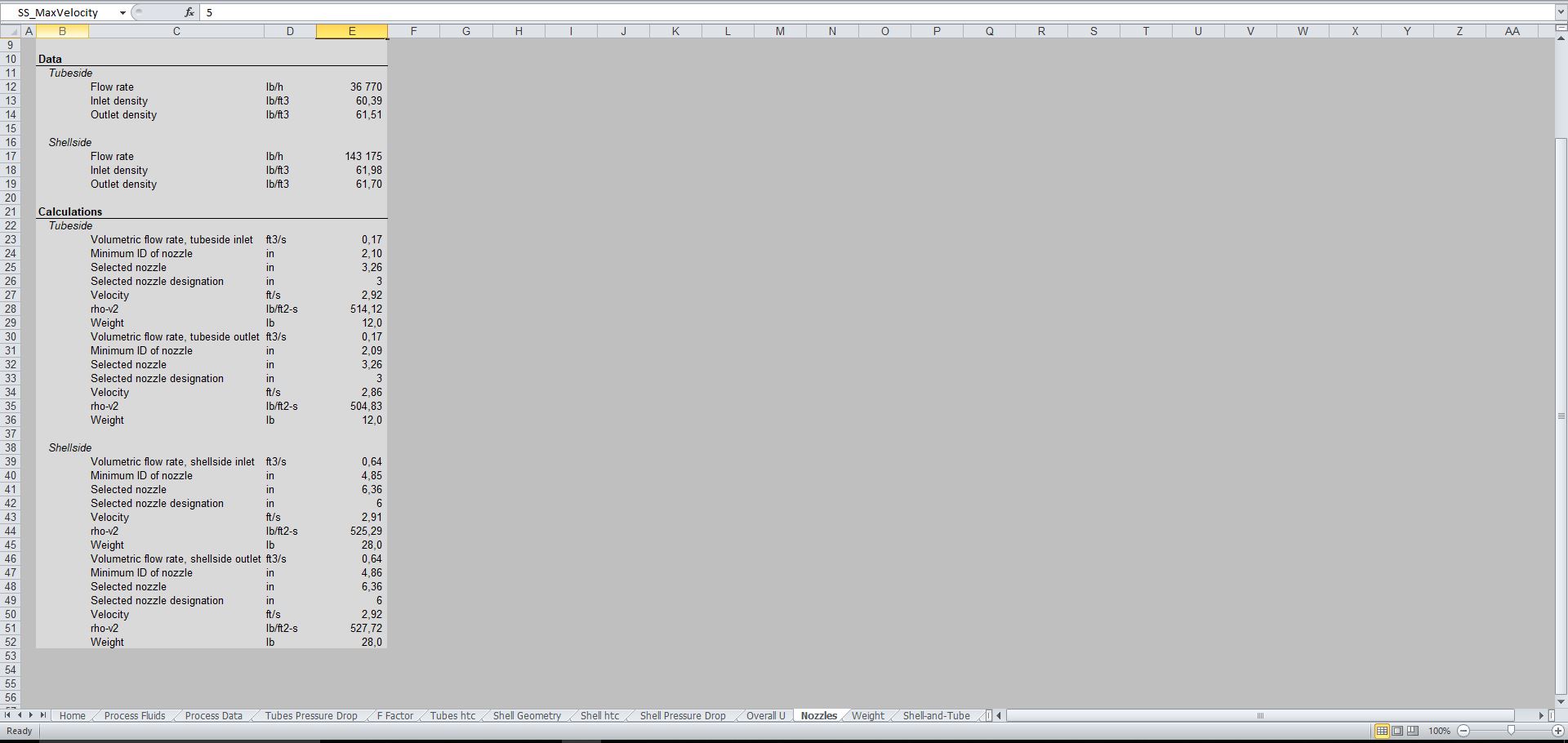

Nozzles

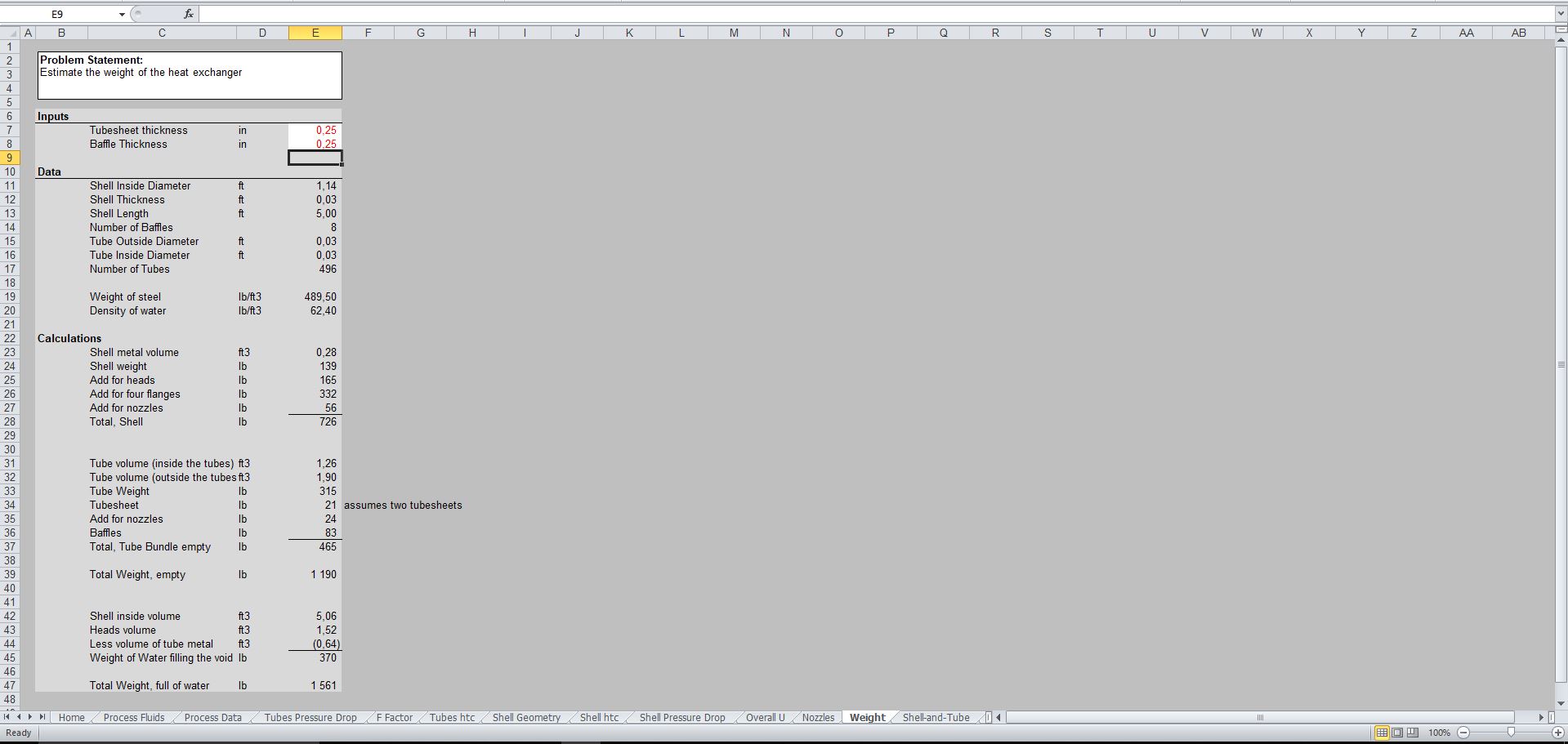

Weight

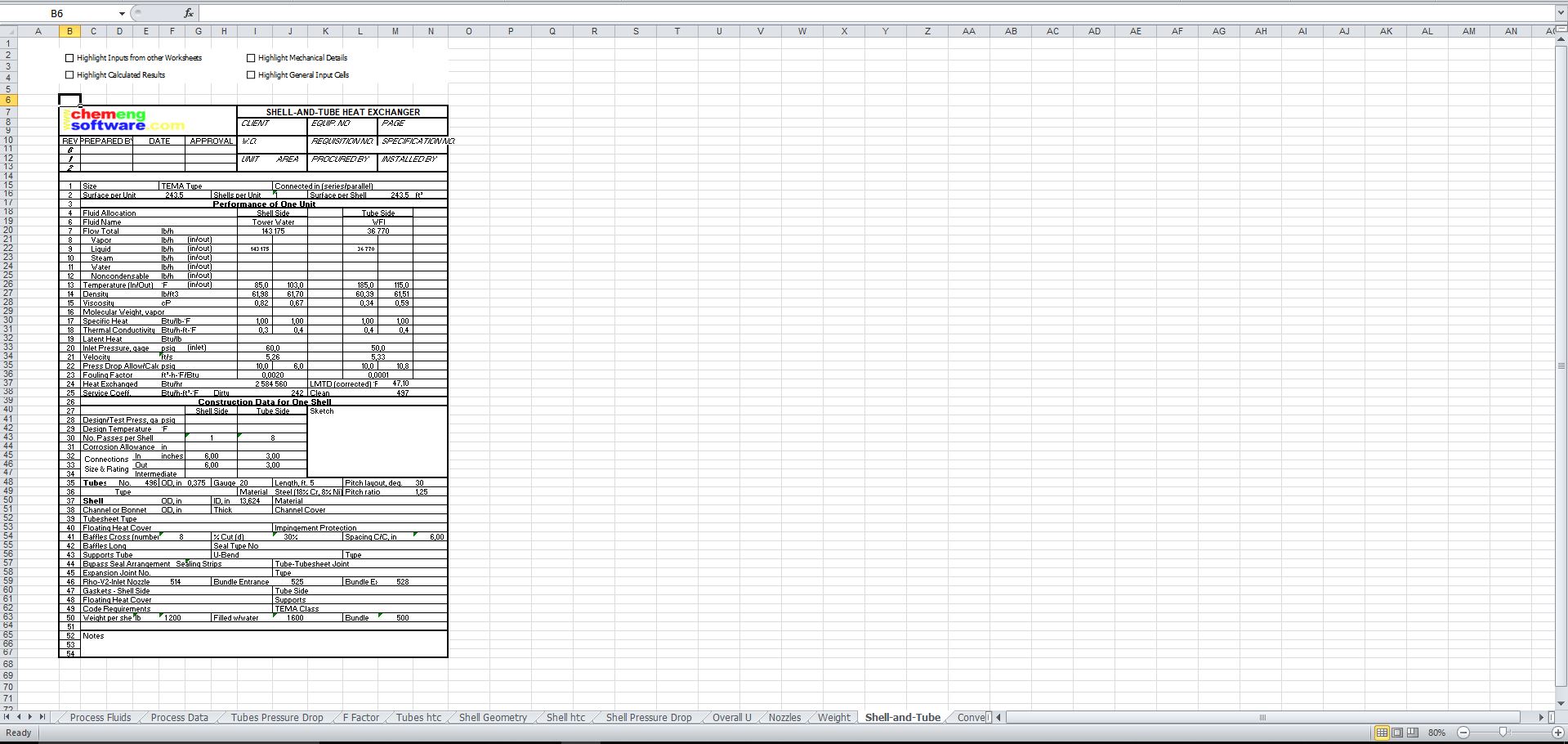

Shell-and-Tube

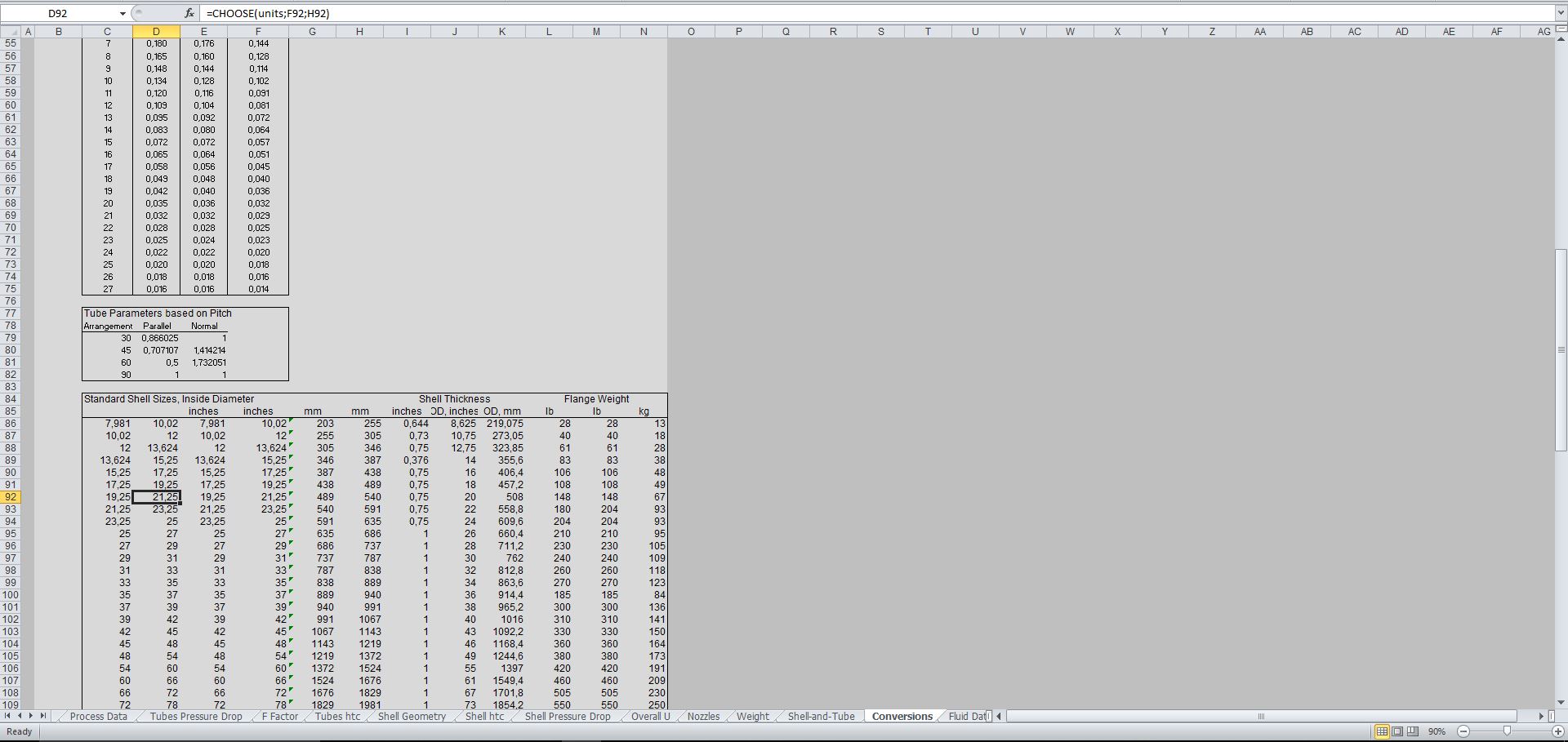

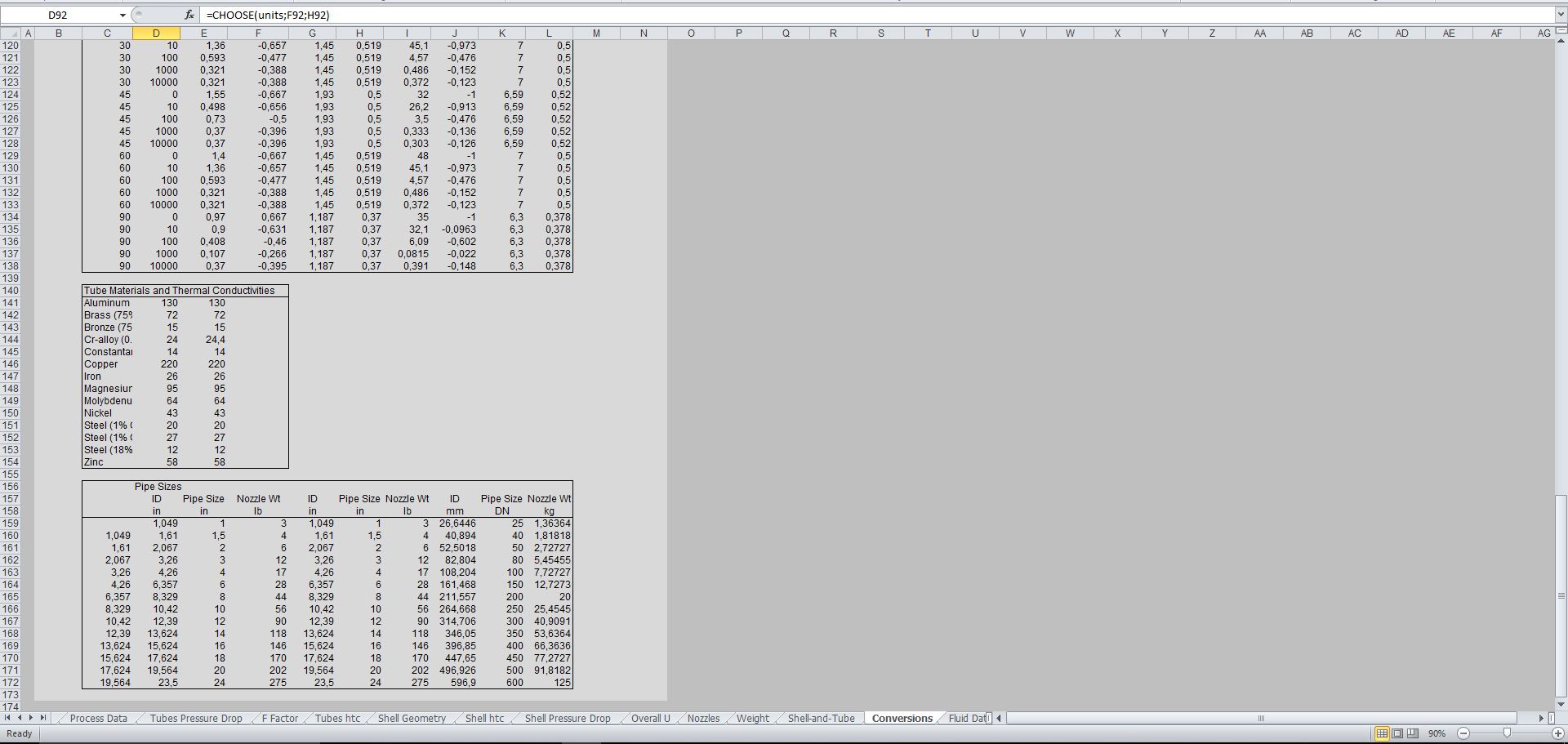

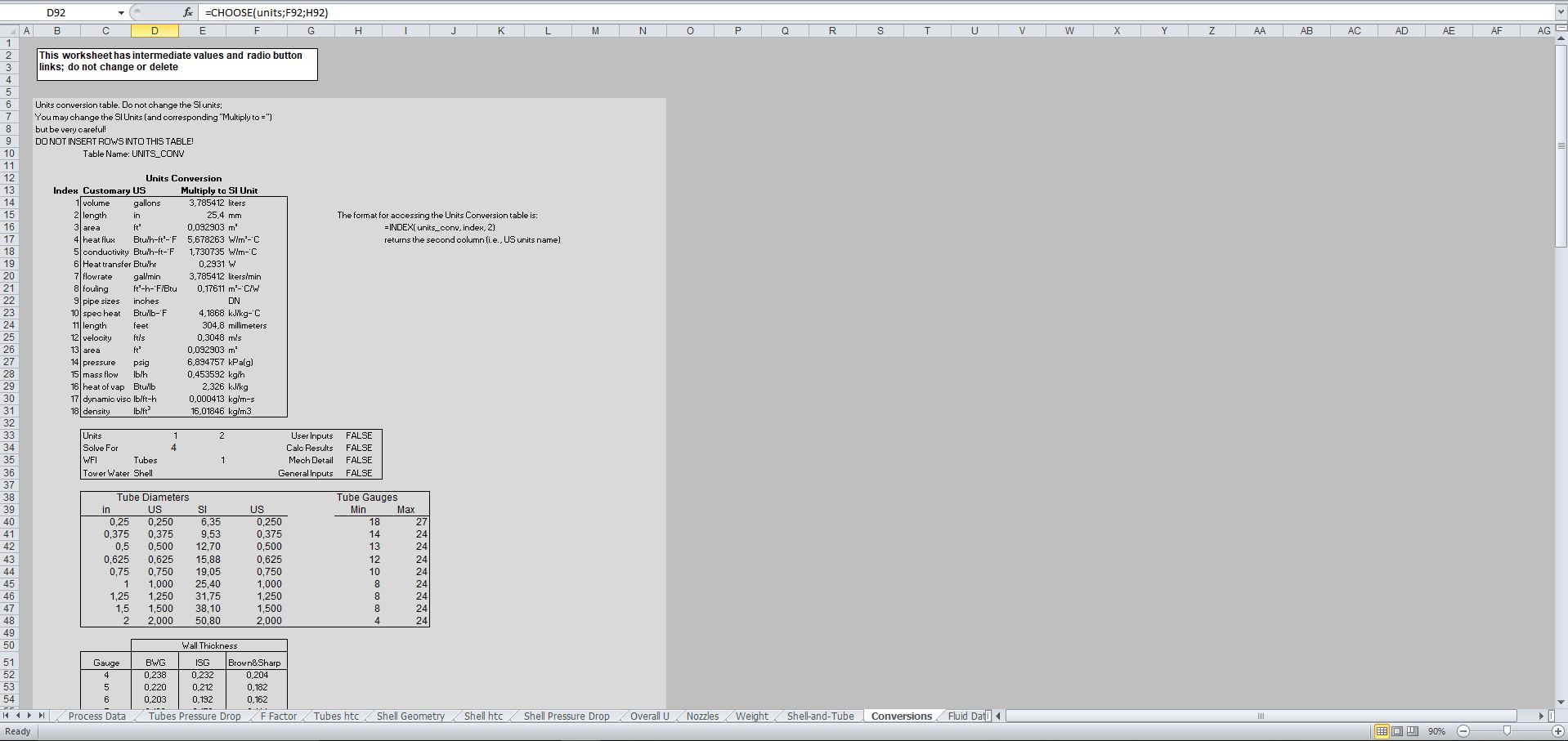

Conversions

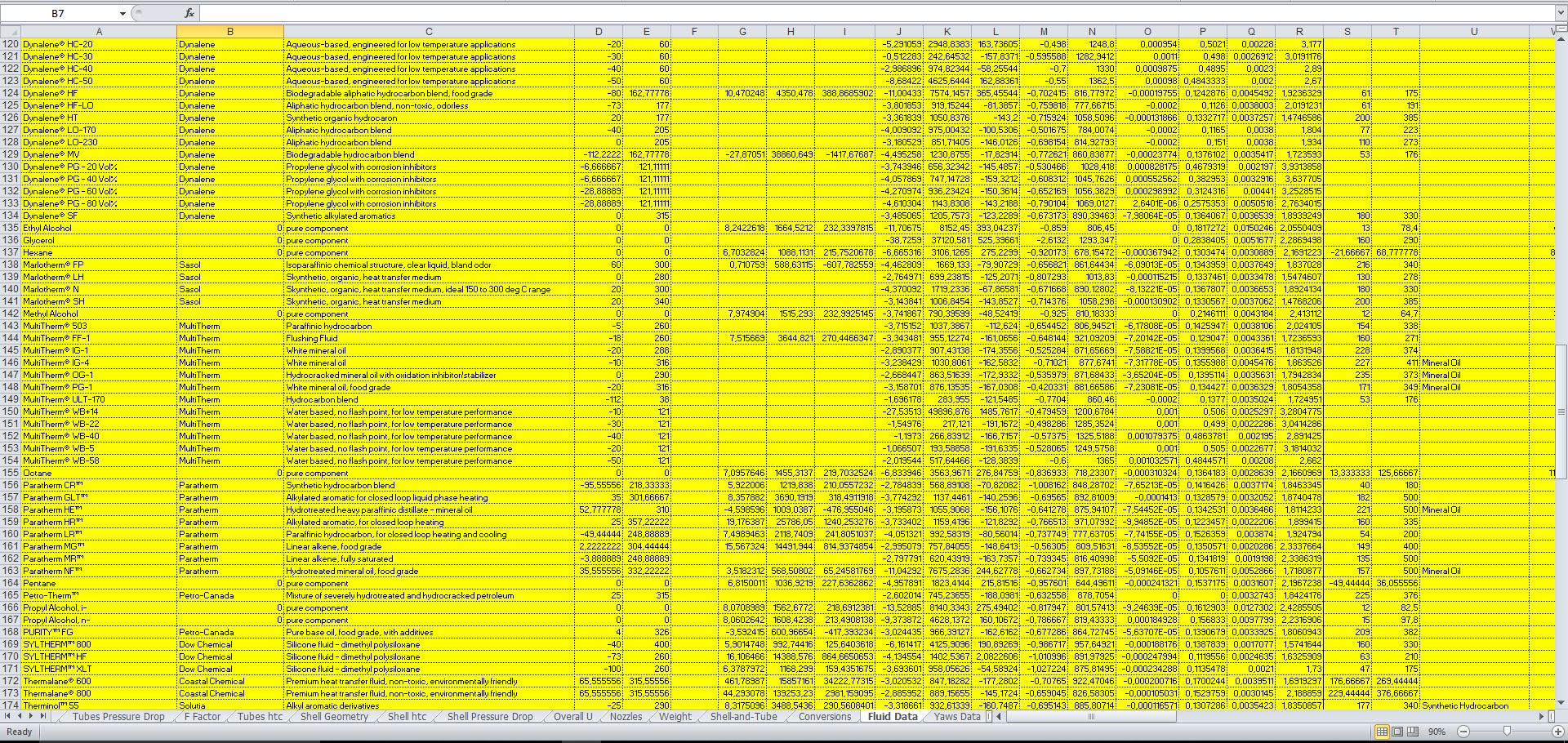

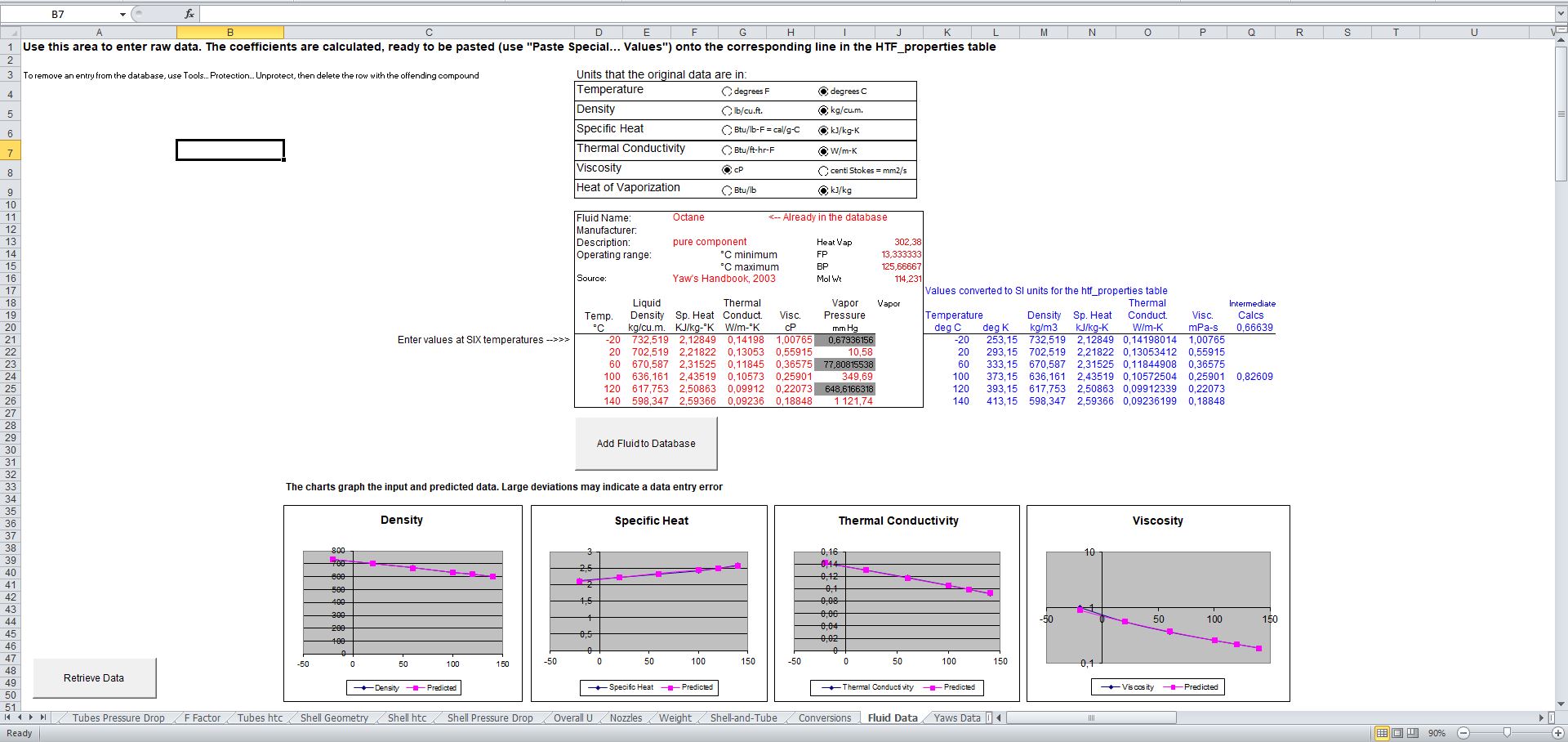

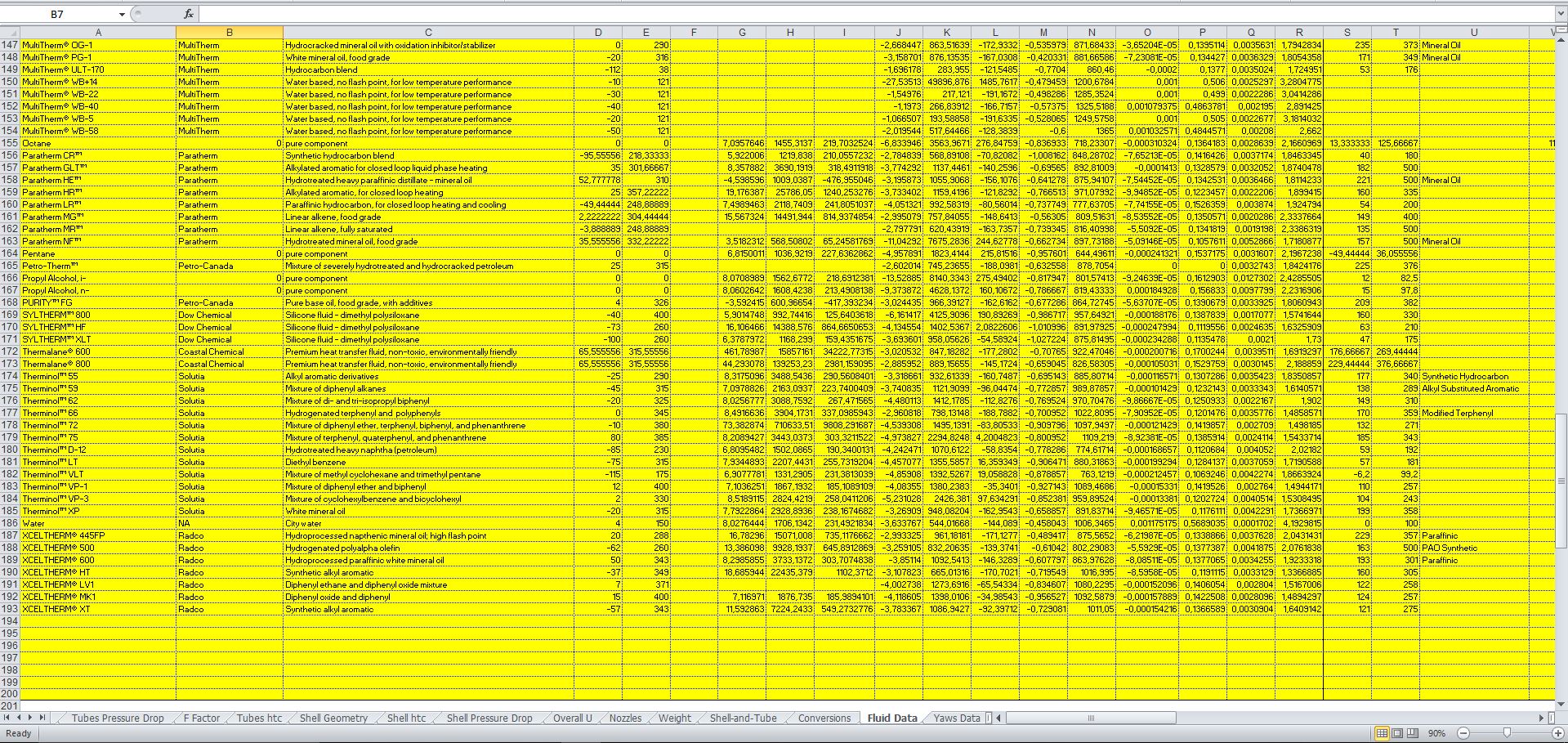

Fluid Data

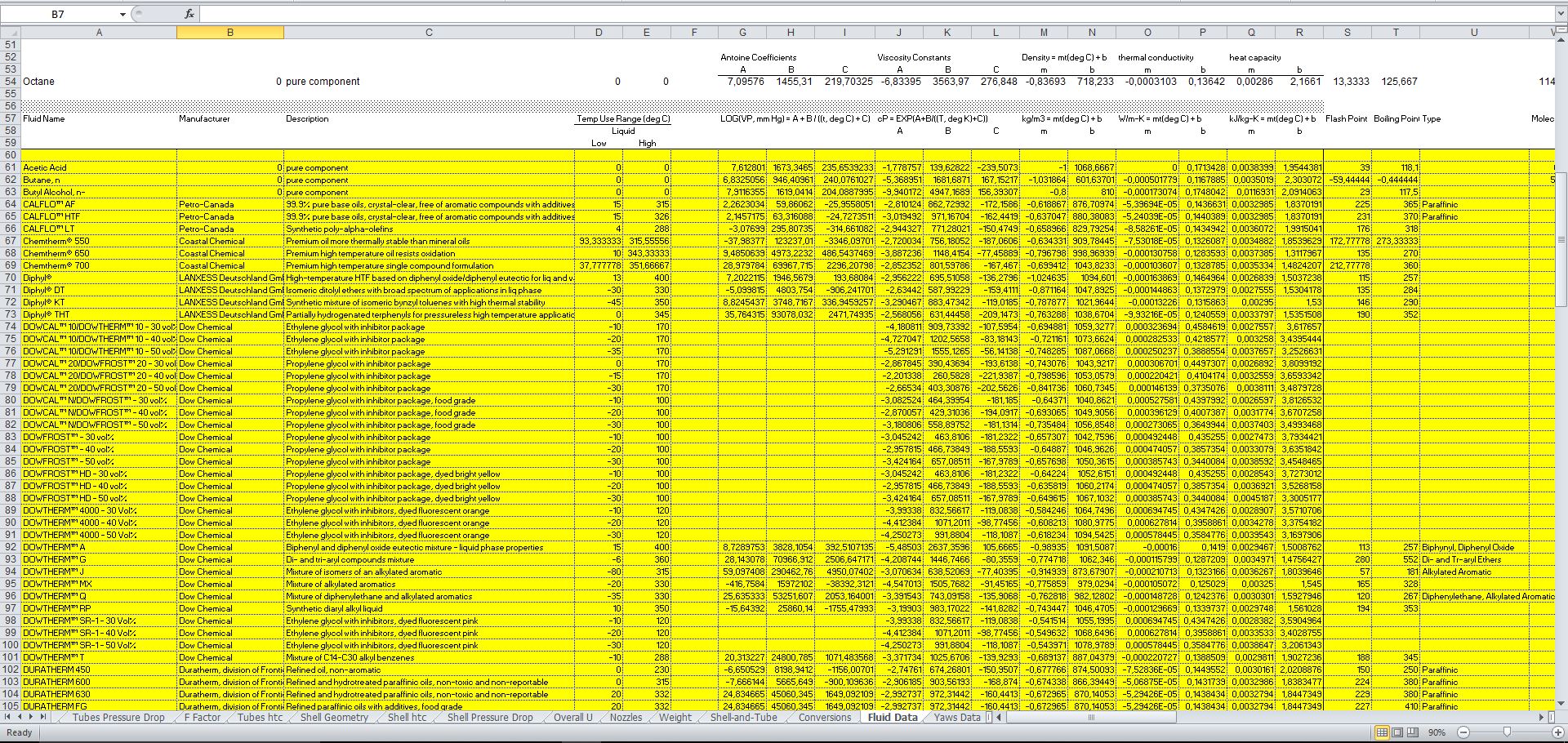

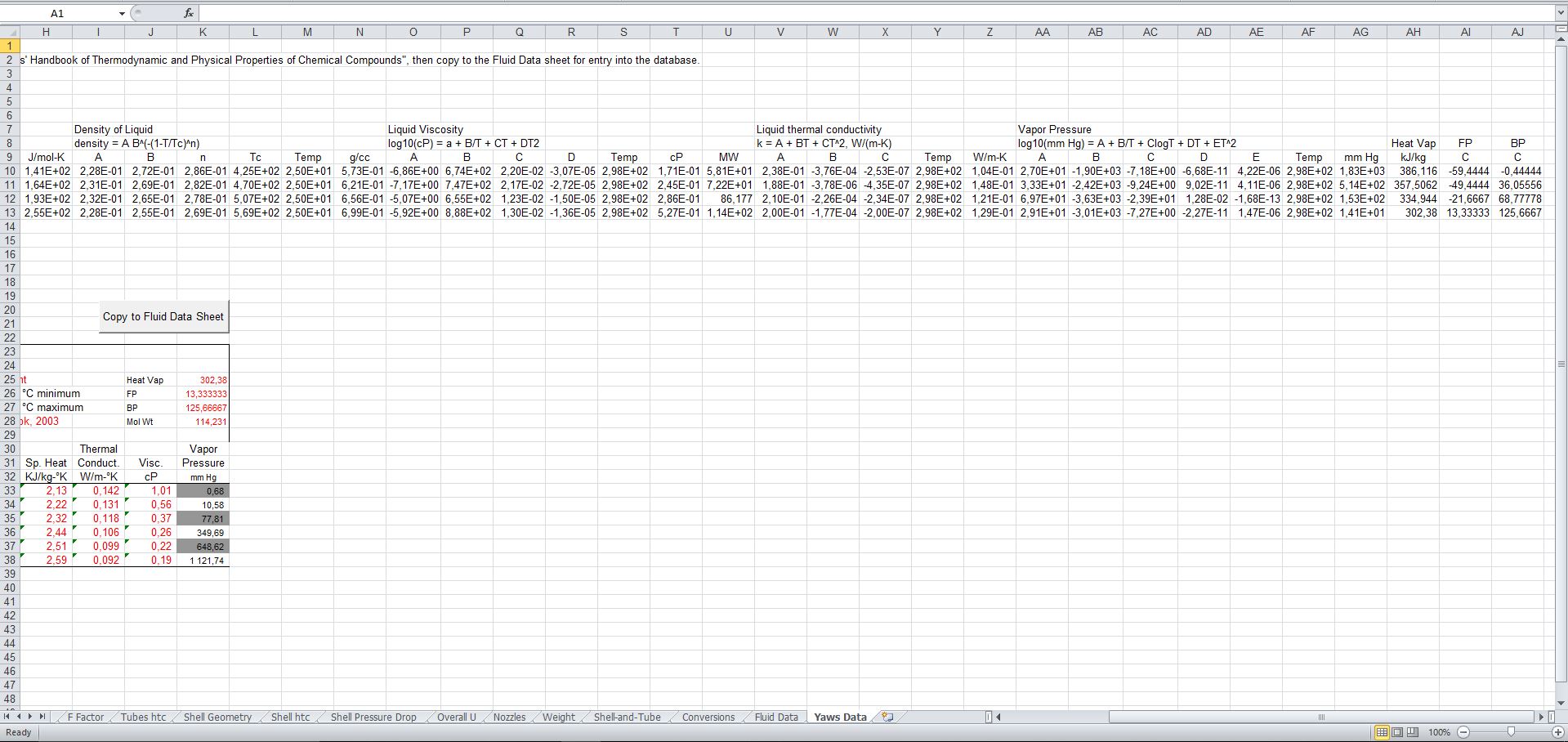

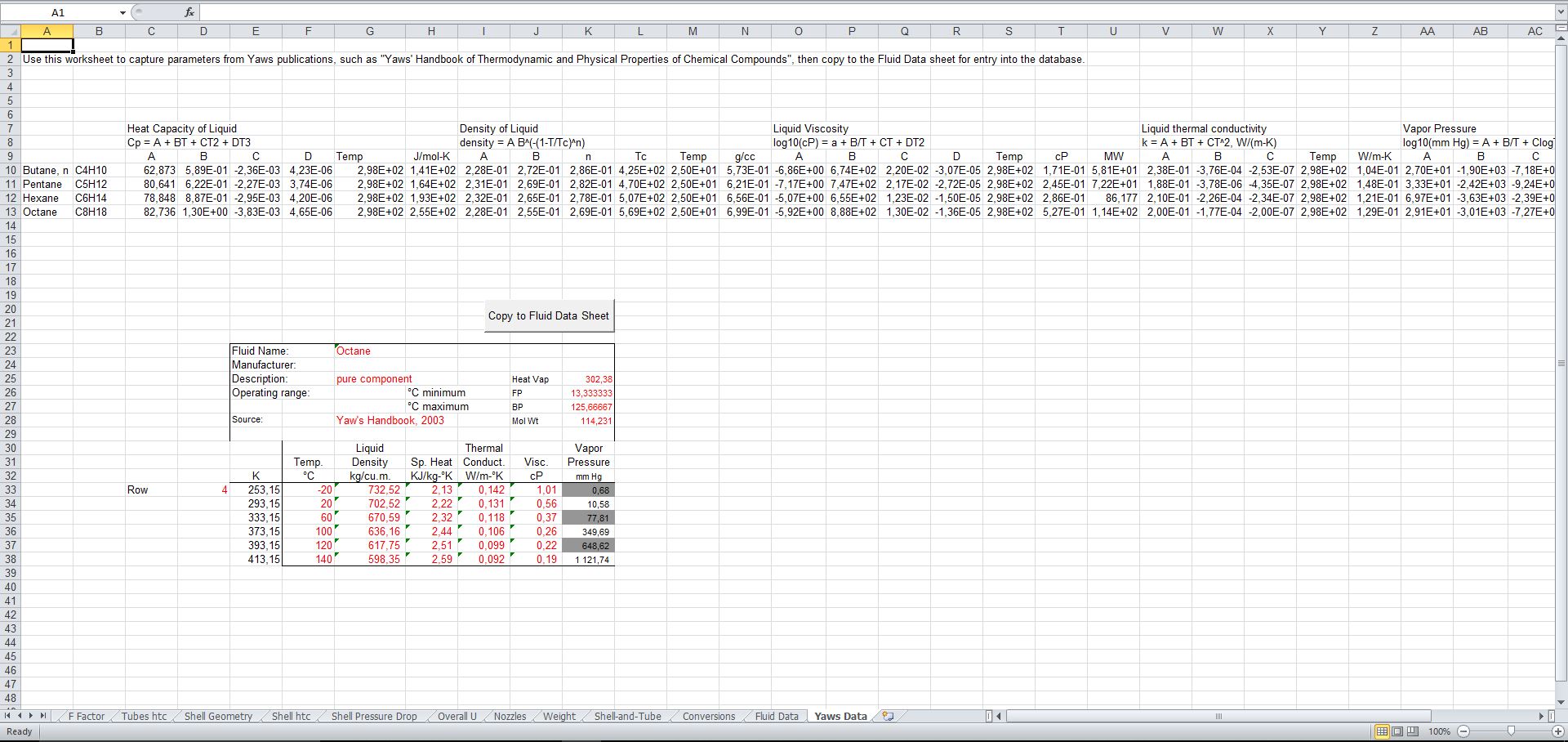

Yaws Data

Macros must be enabled for function subroutines to work.
This template accompanies Chapter 12 of Rules of Thumb for Engineers, 6th Edition by Stephen M Hall, PE. The templates are intended to solve problems outlined in the book, explain techniques for converting U.S. & SI units of measure, demonstrate data look up methods, and provide you with ready-to-use data sheets. The function subroutines can also be copied to other spreadsheets.
