Pumps Excel Workbook

'Pumps' workbook in excel intended to align with Chapter 5: Pumps in textbook "Rules of Thumb for Engineers" by S. Hall

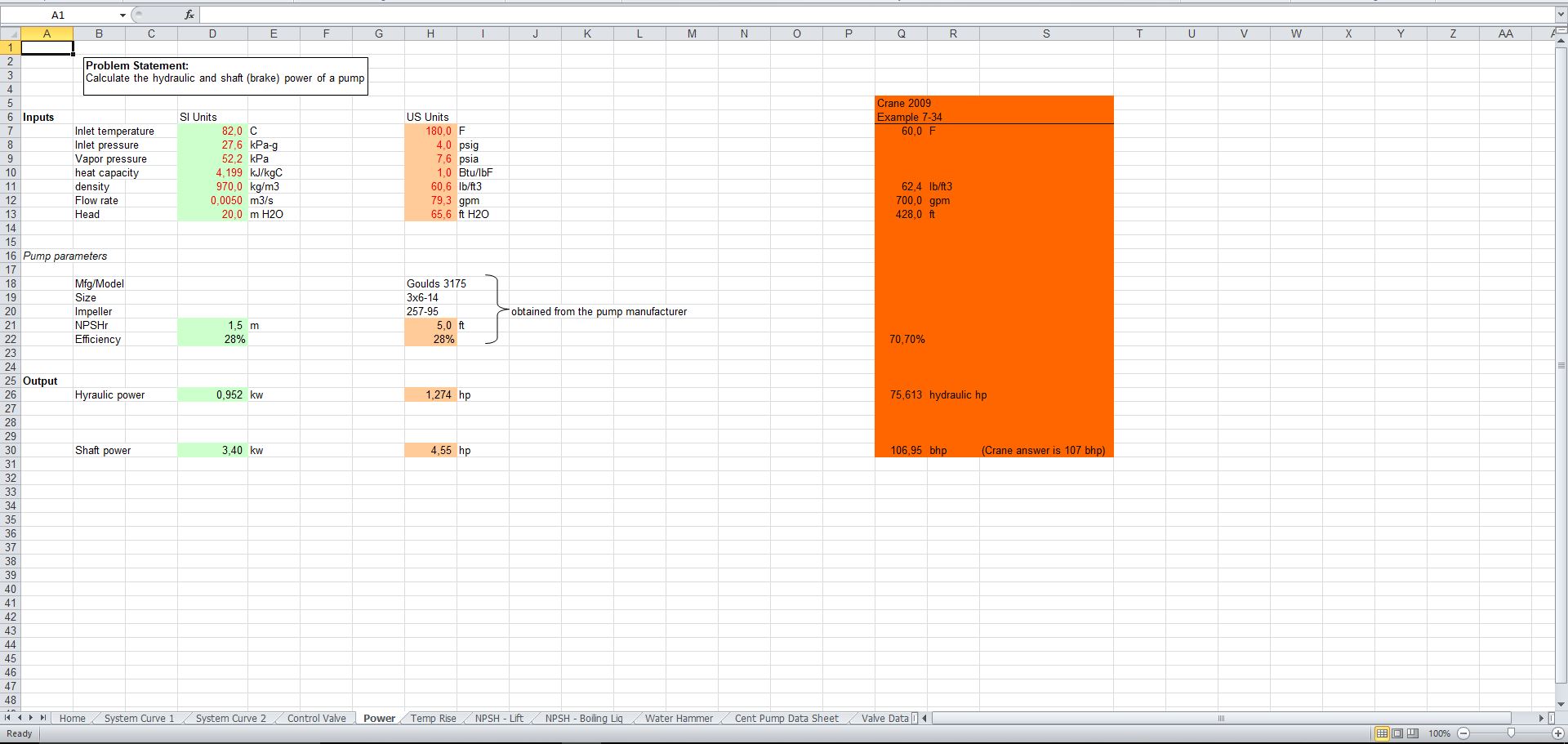

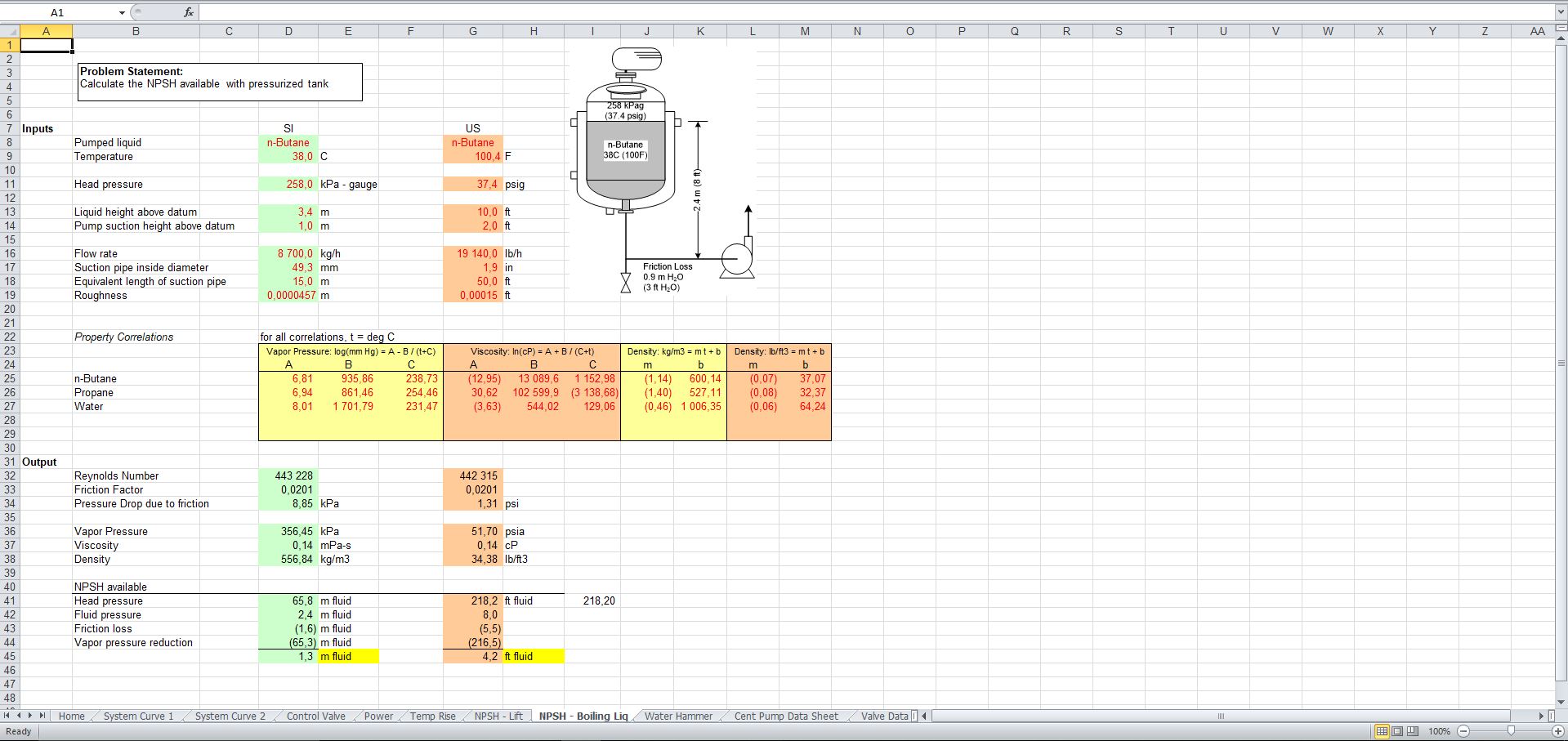

This tool gives various calculations that you will find useful in the selection and sizing of centrifugal pumps. It also contains data sheets for control valves and pumps, as well as calculations for temperature rise, system curves, power, NPSH, and water hammer.

With 11 sheets, this workbook contains:

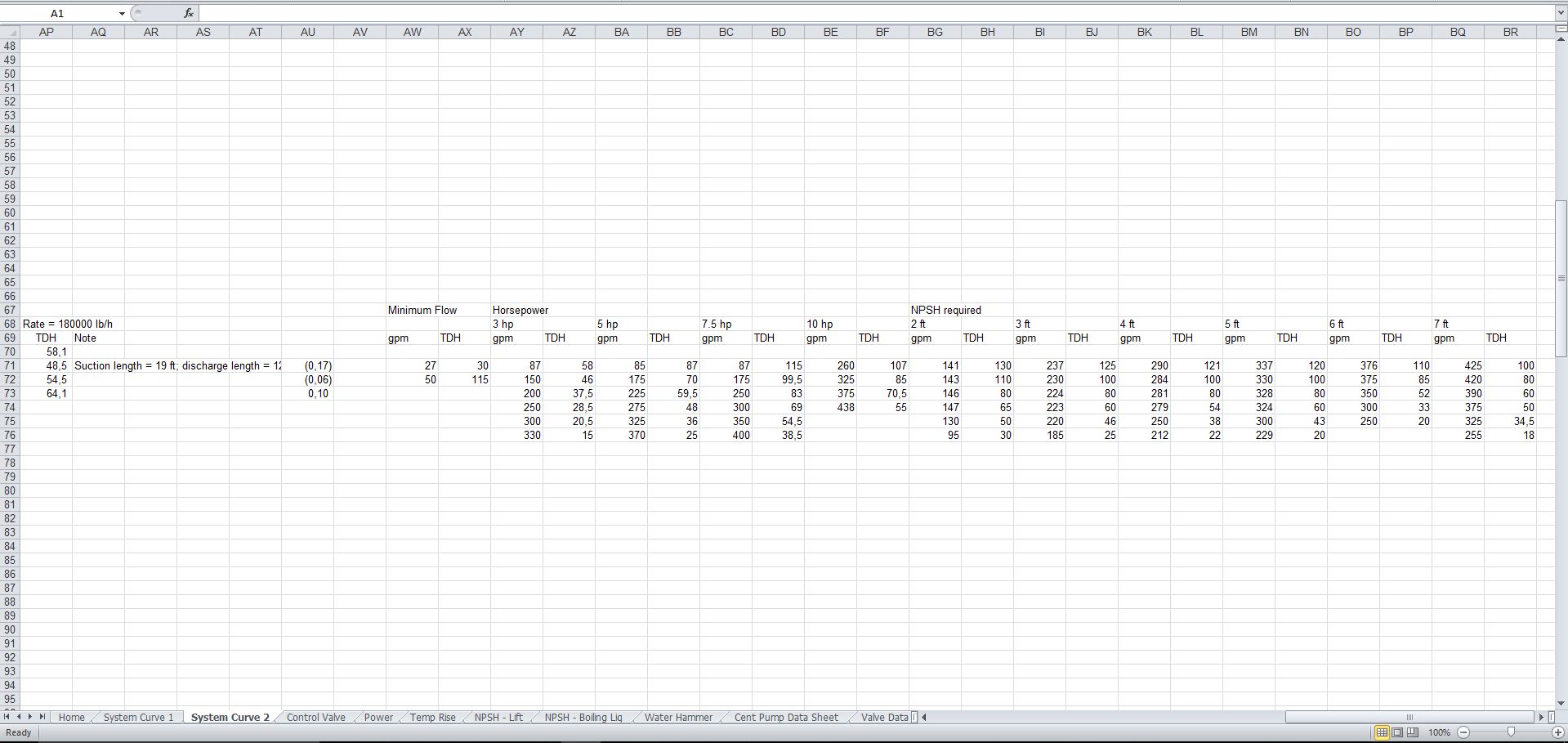

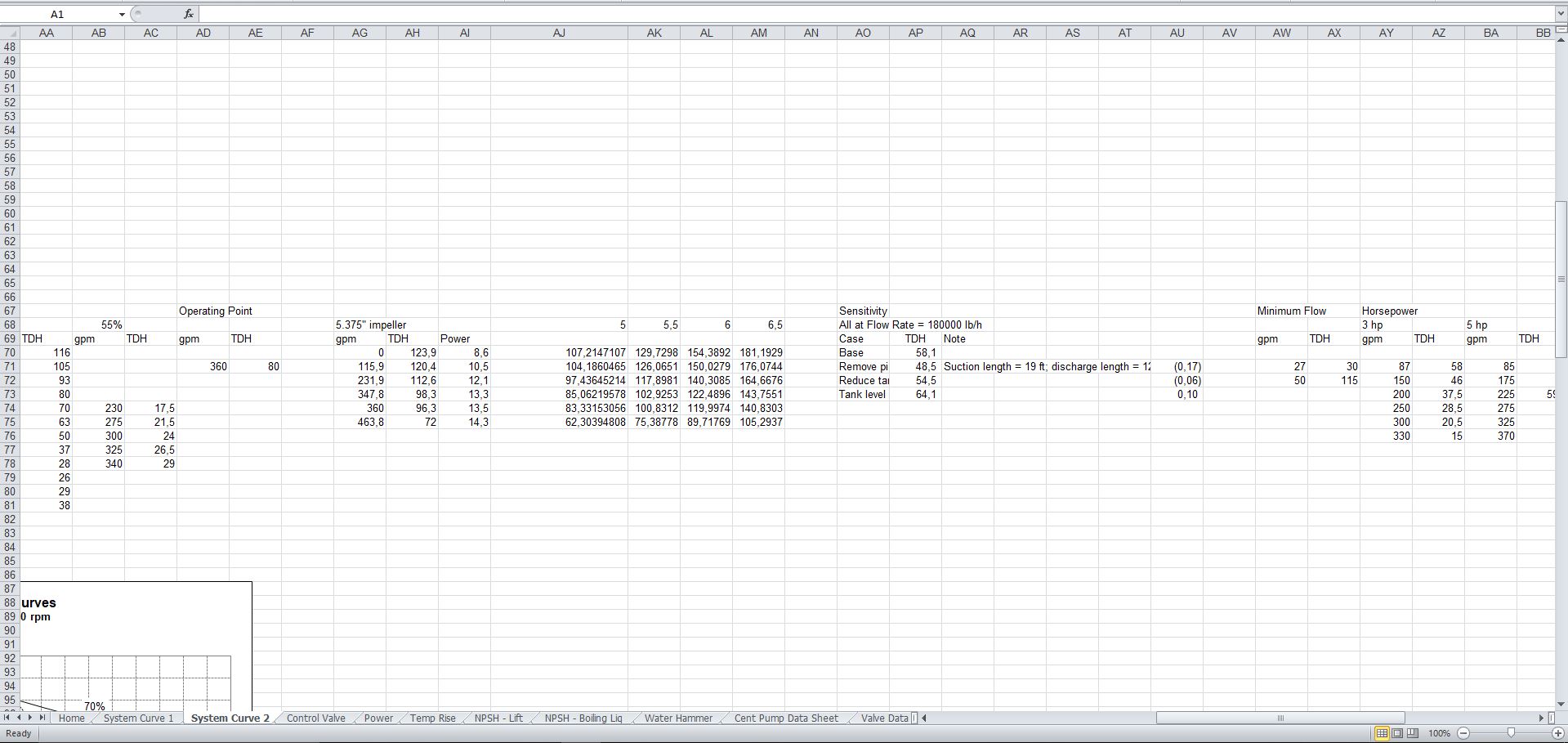

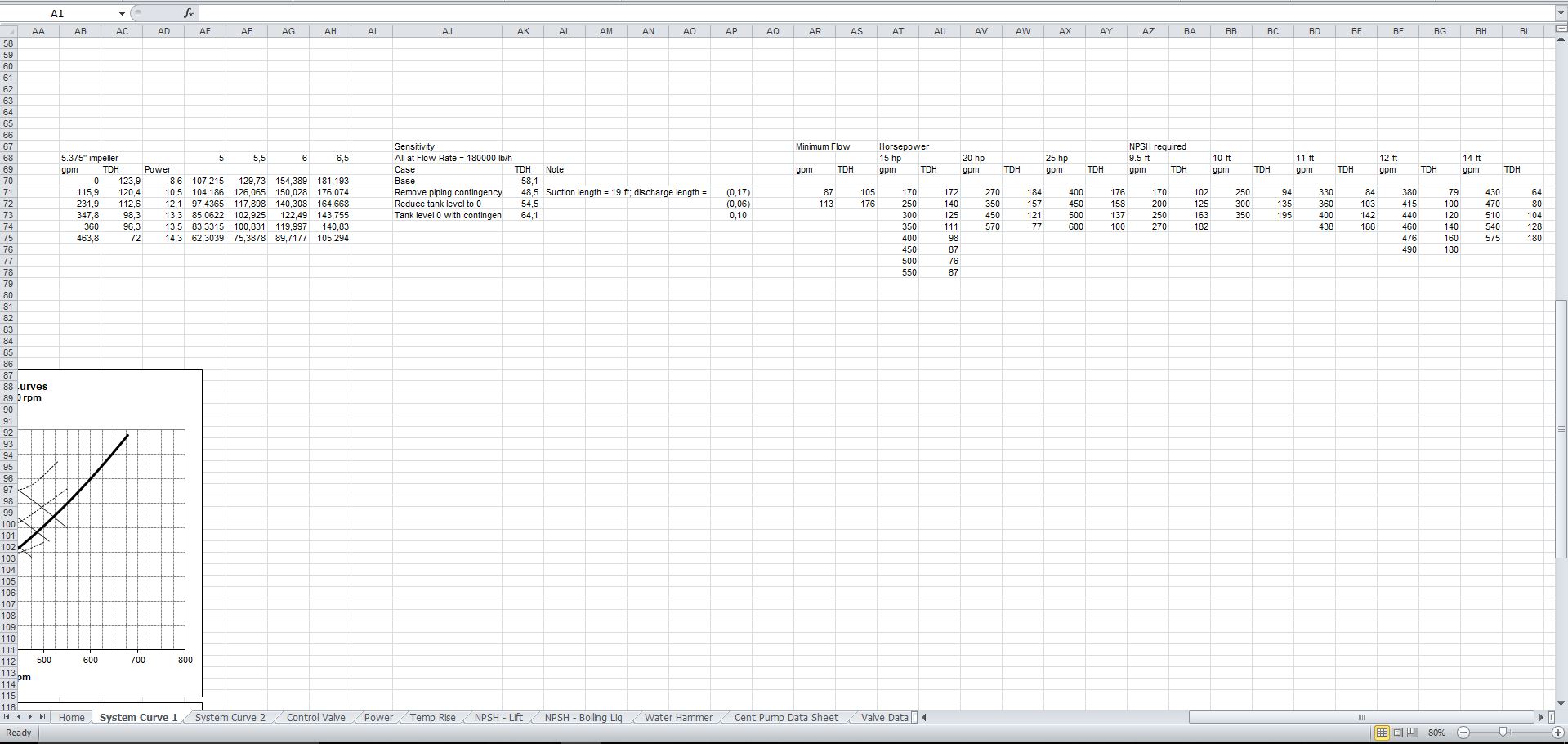

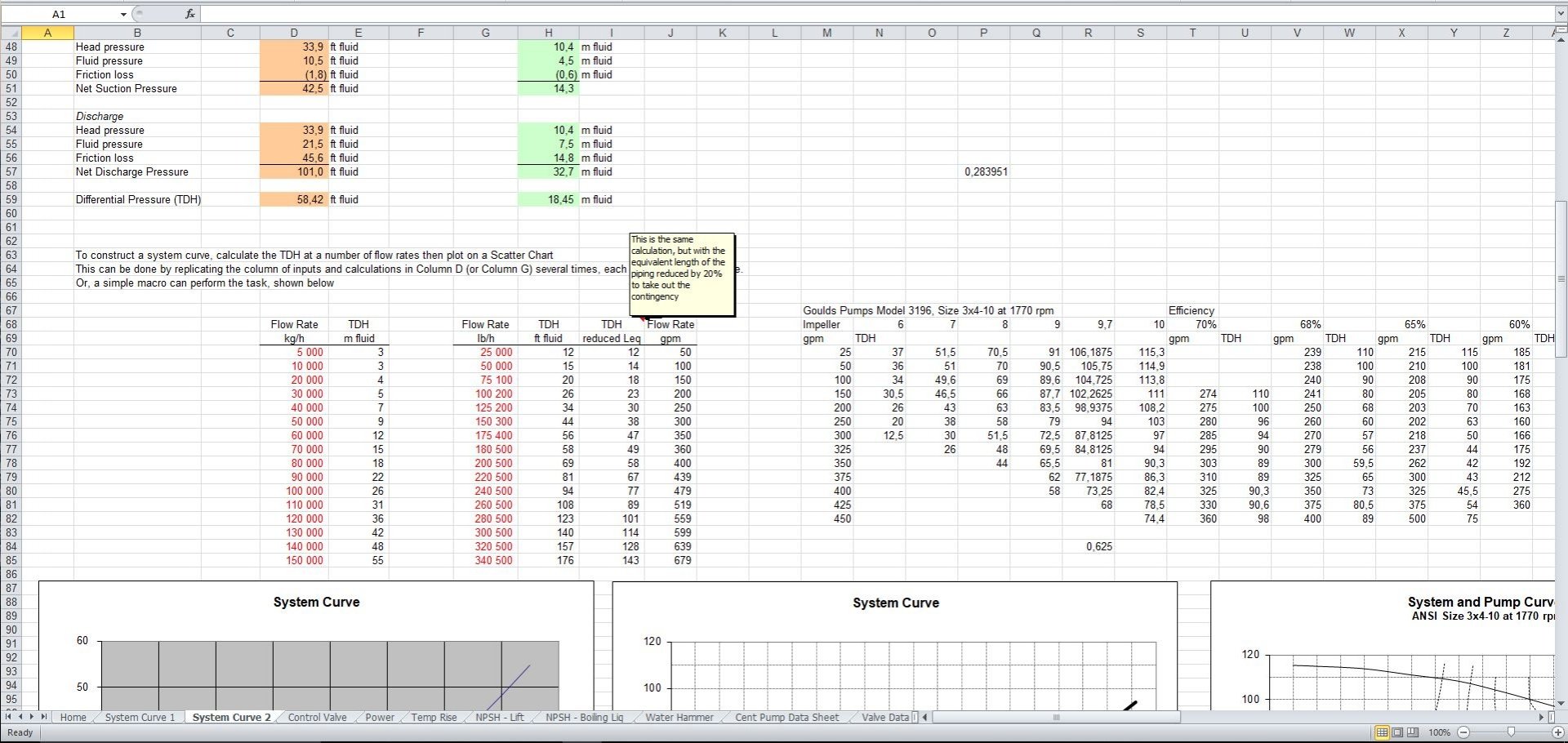

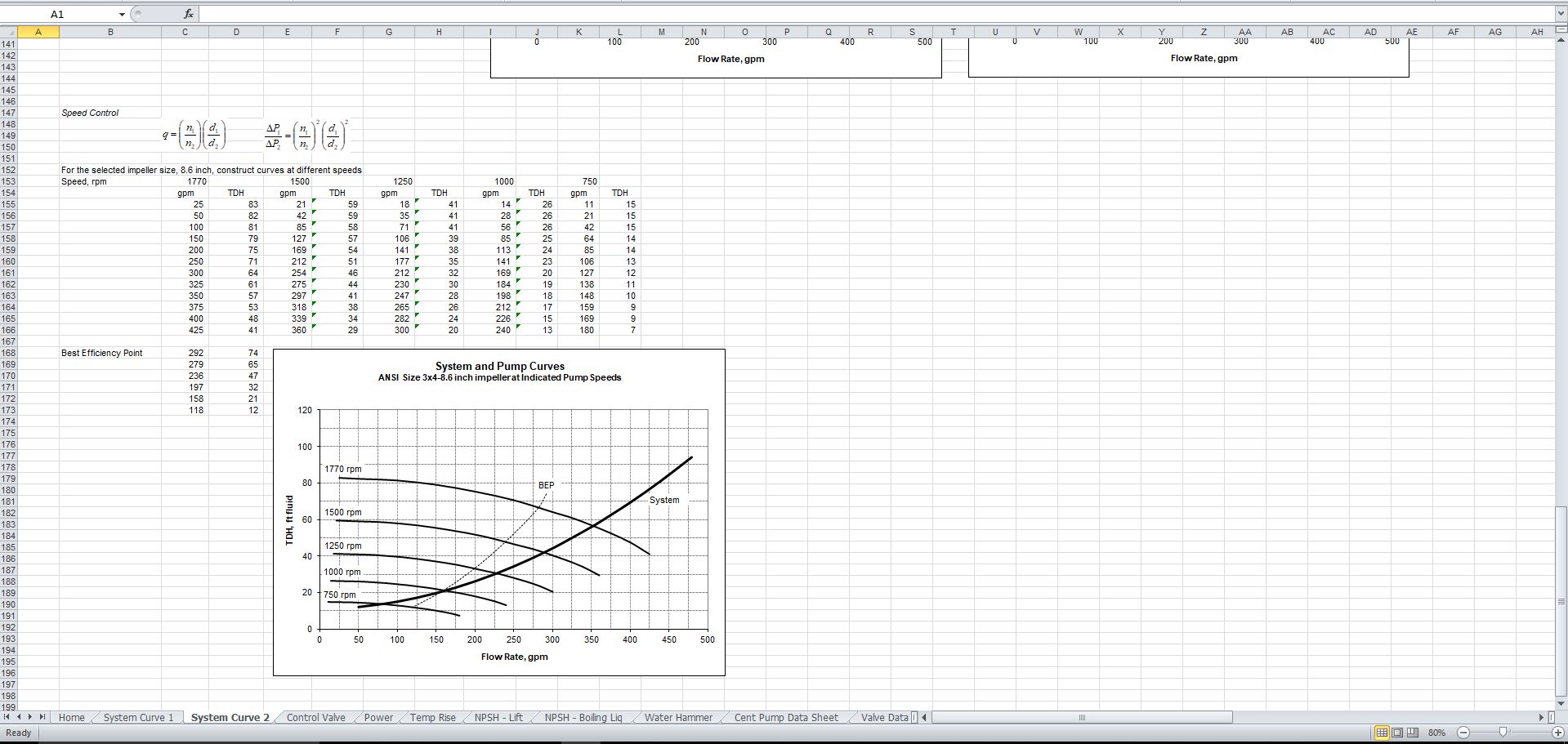

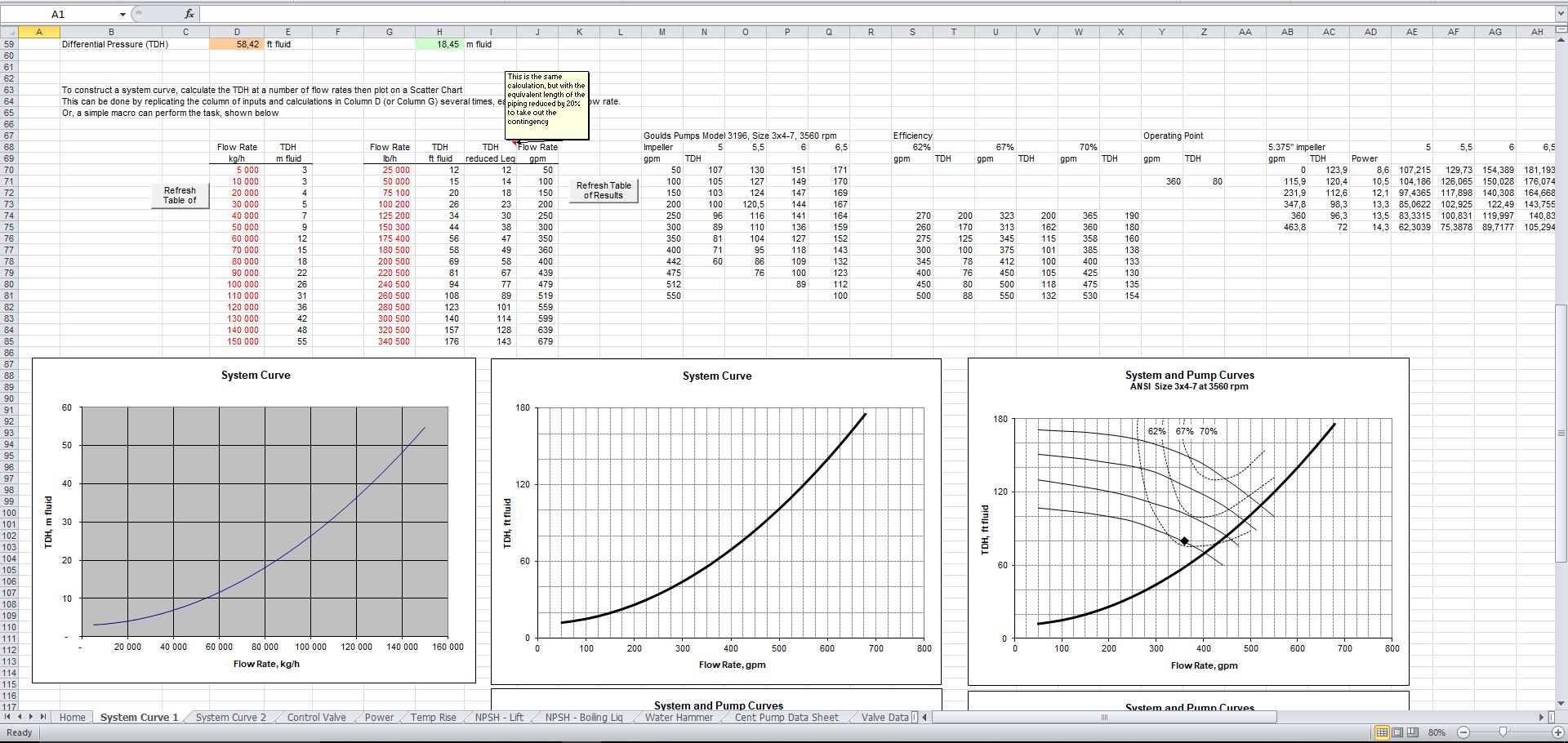

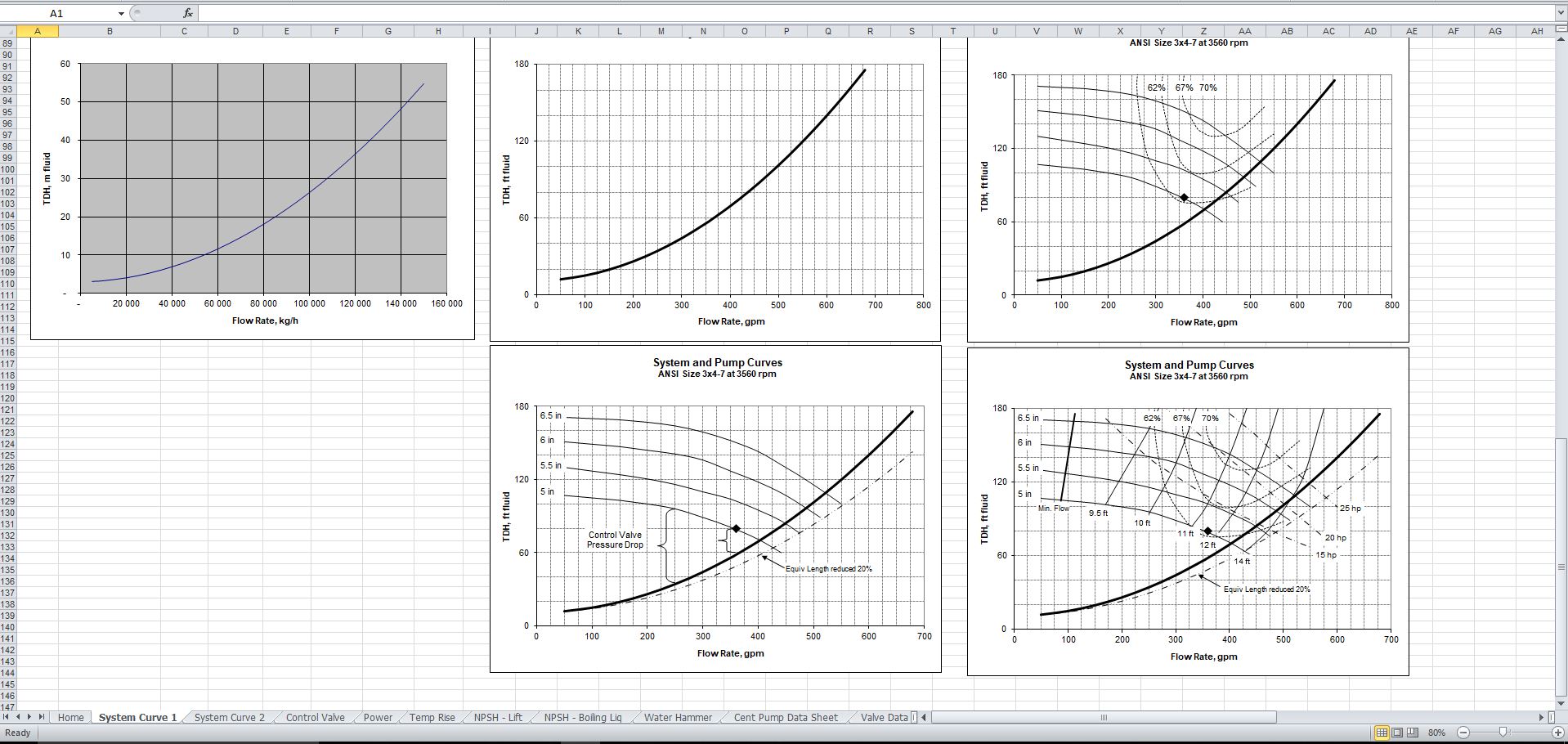

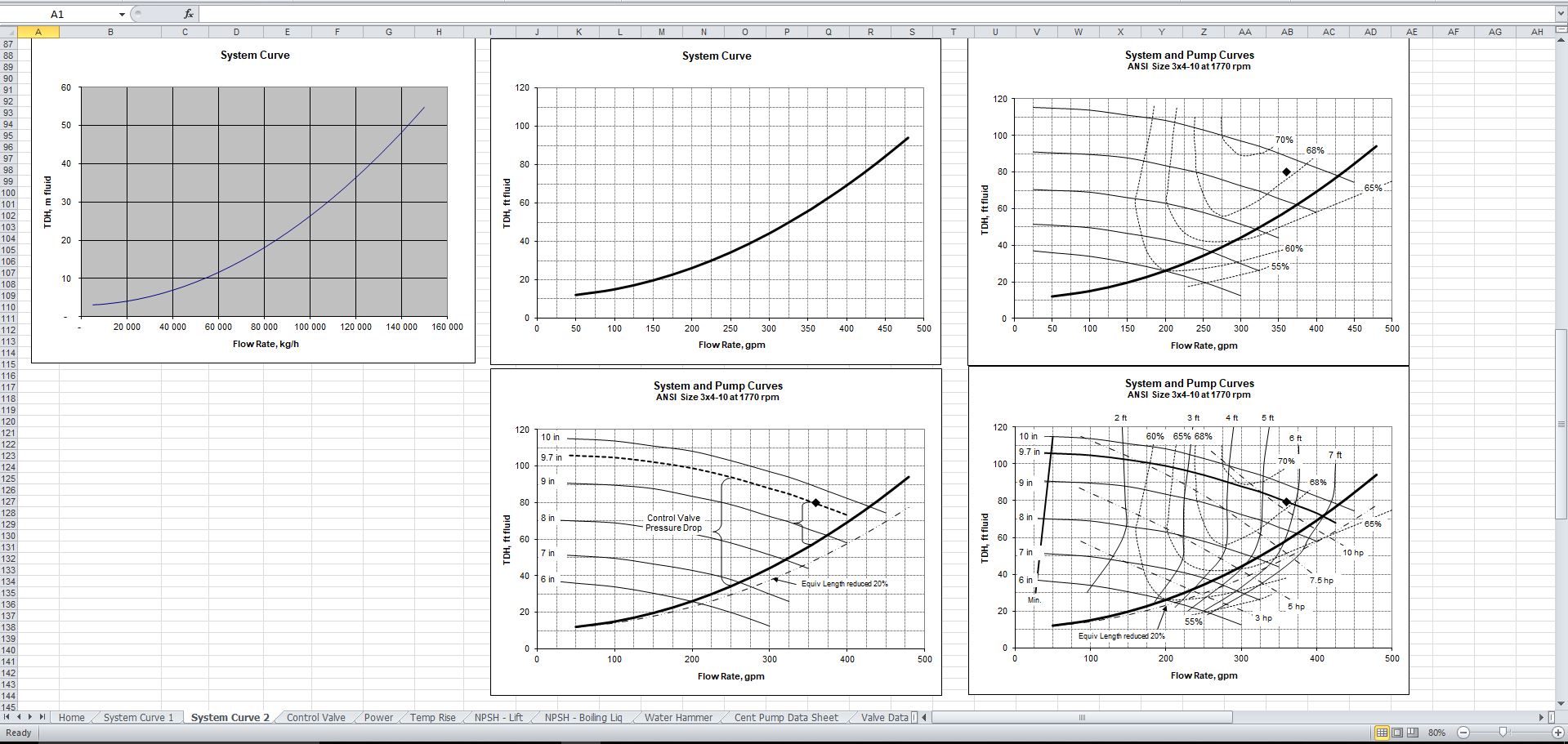

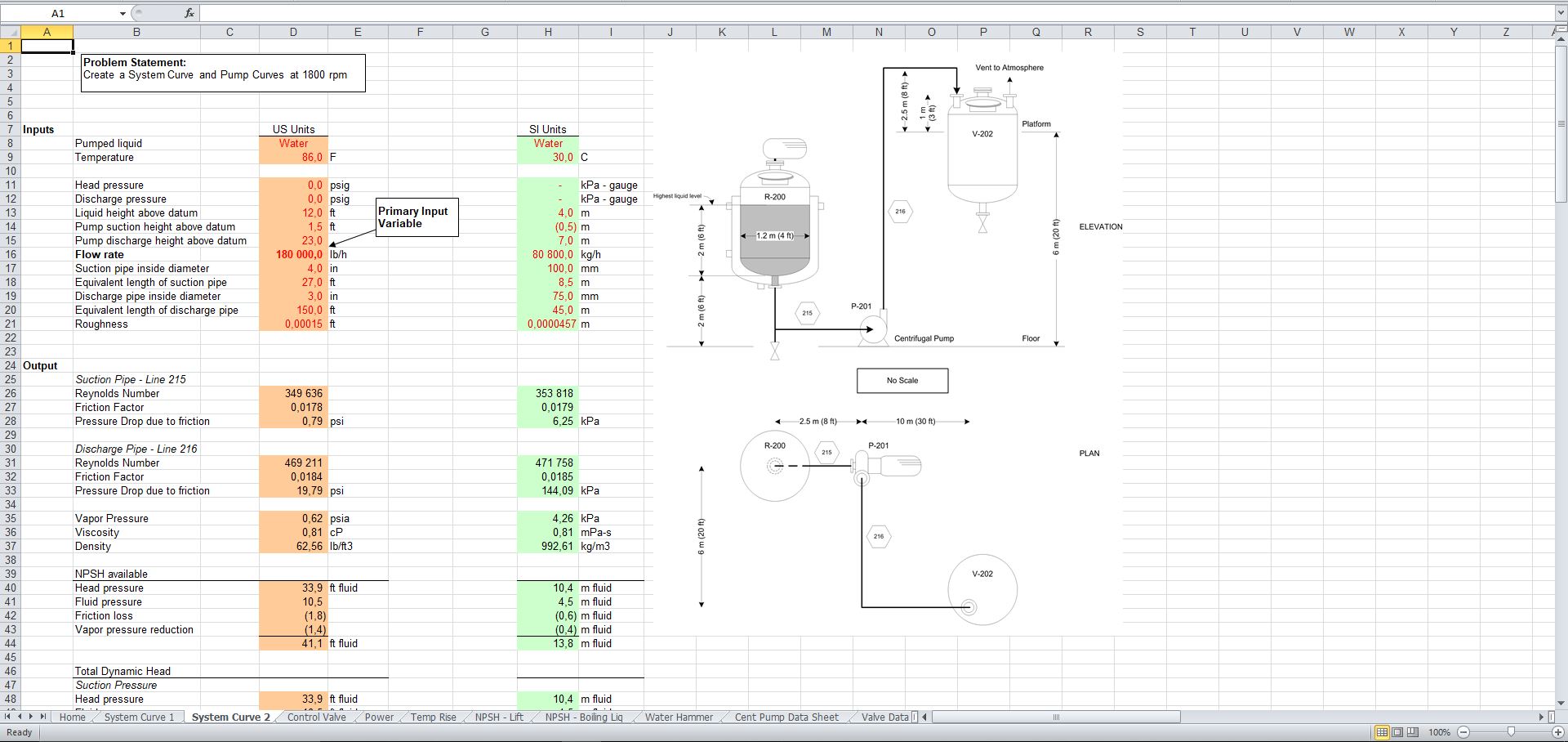

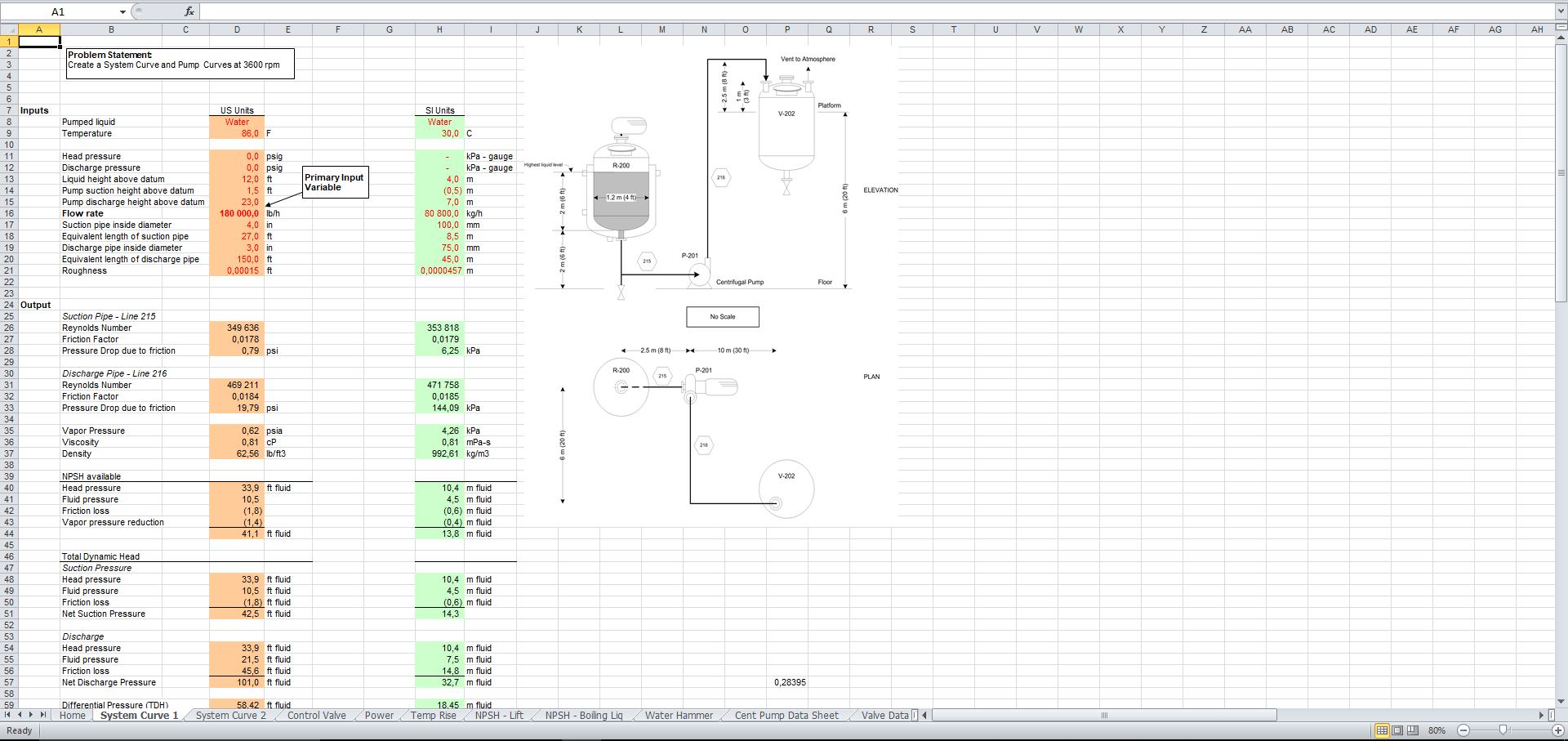

System Curve x2

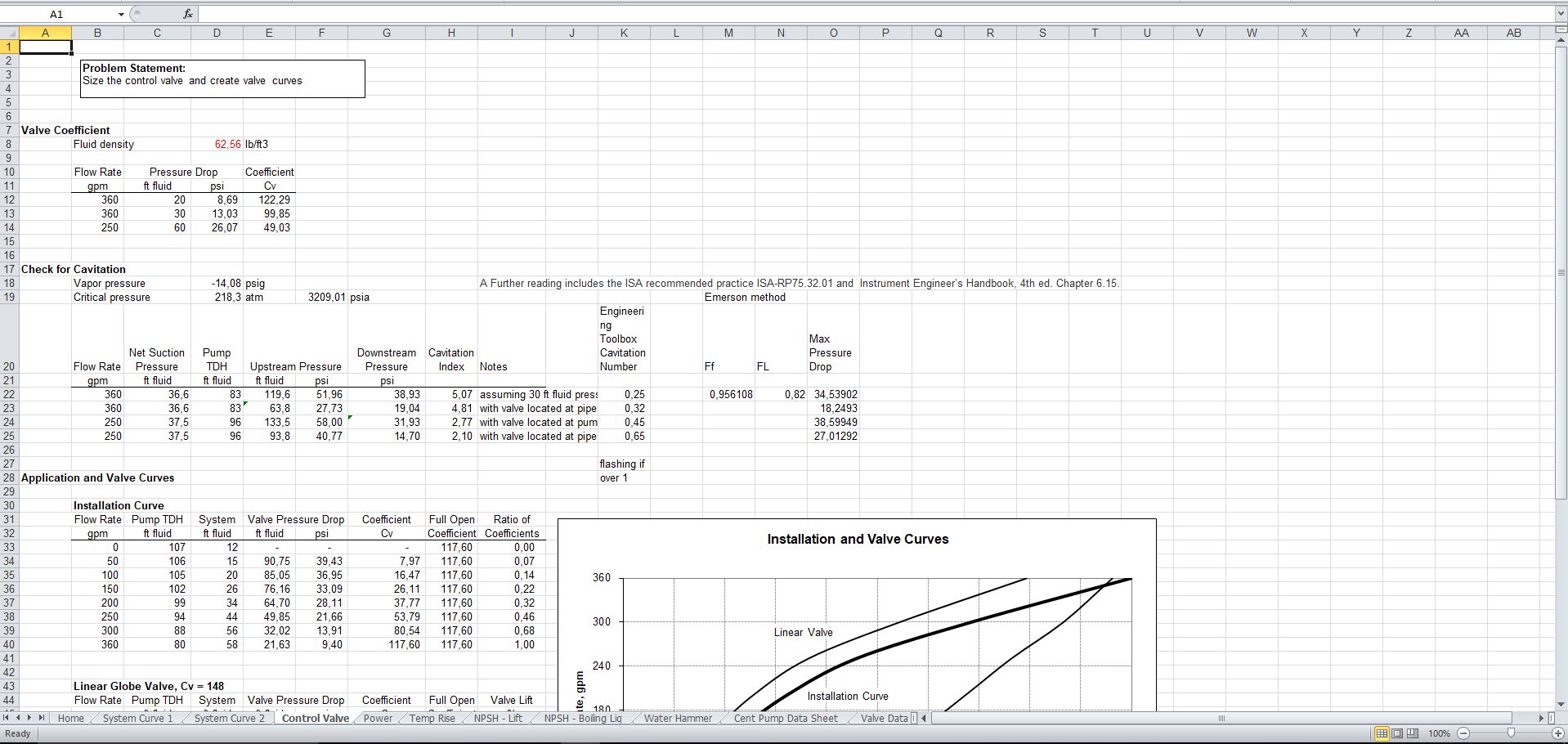

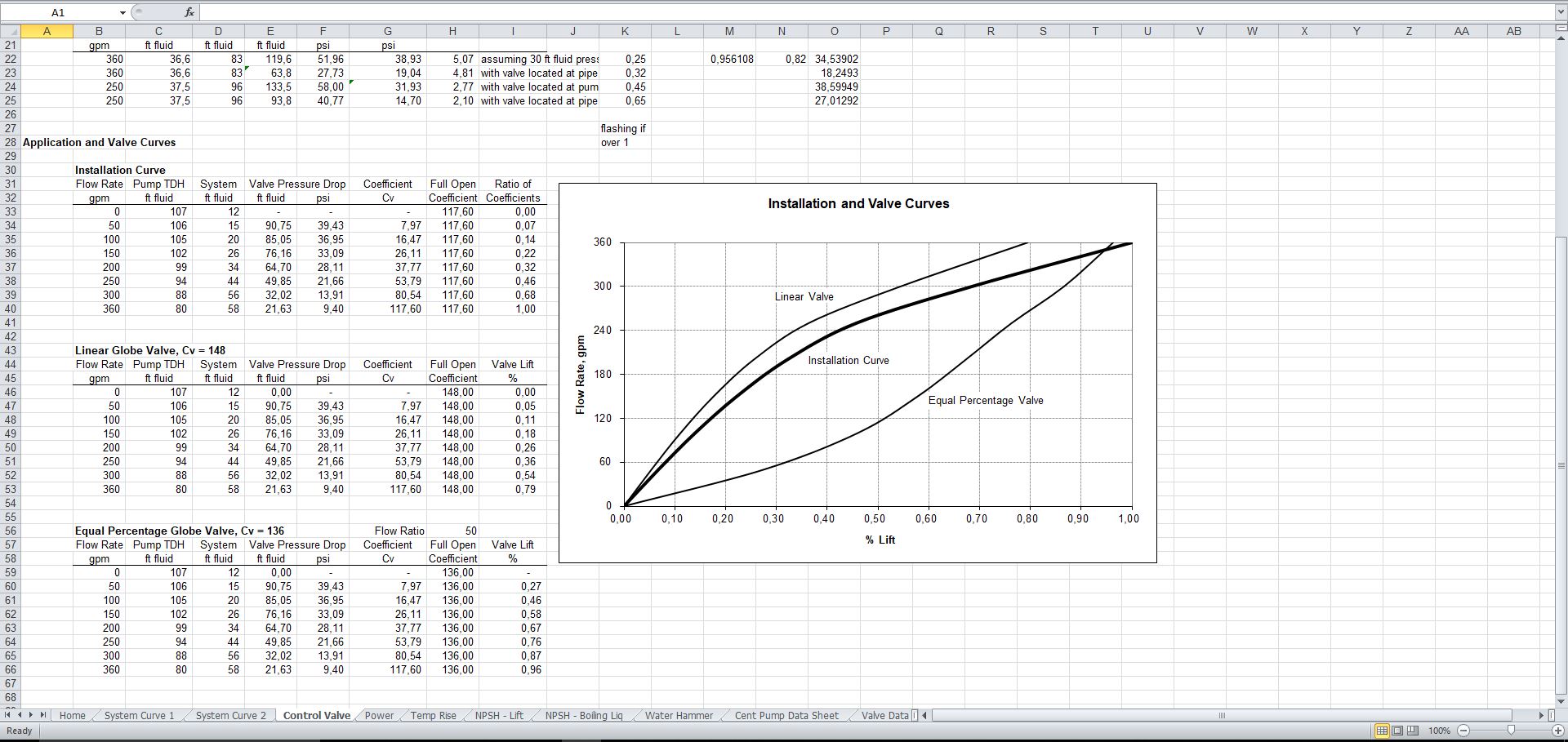

Control valve

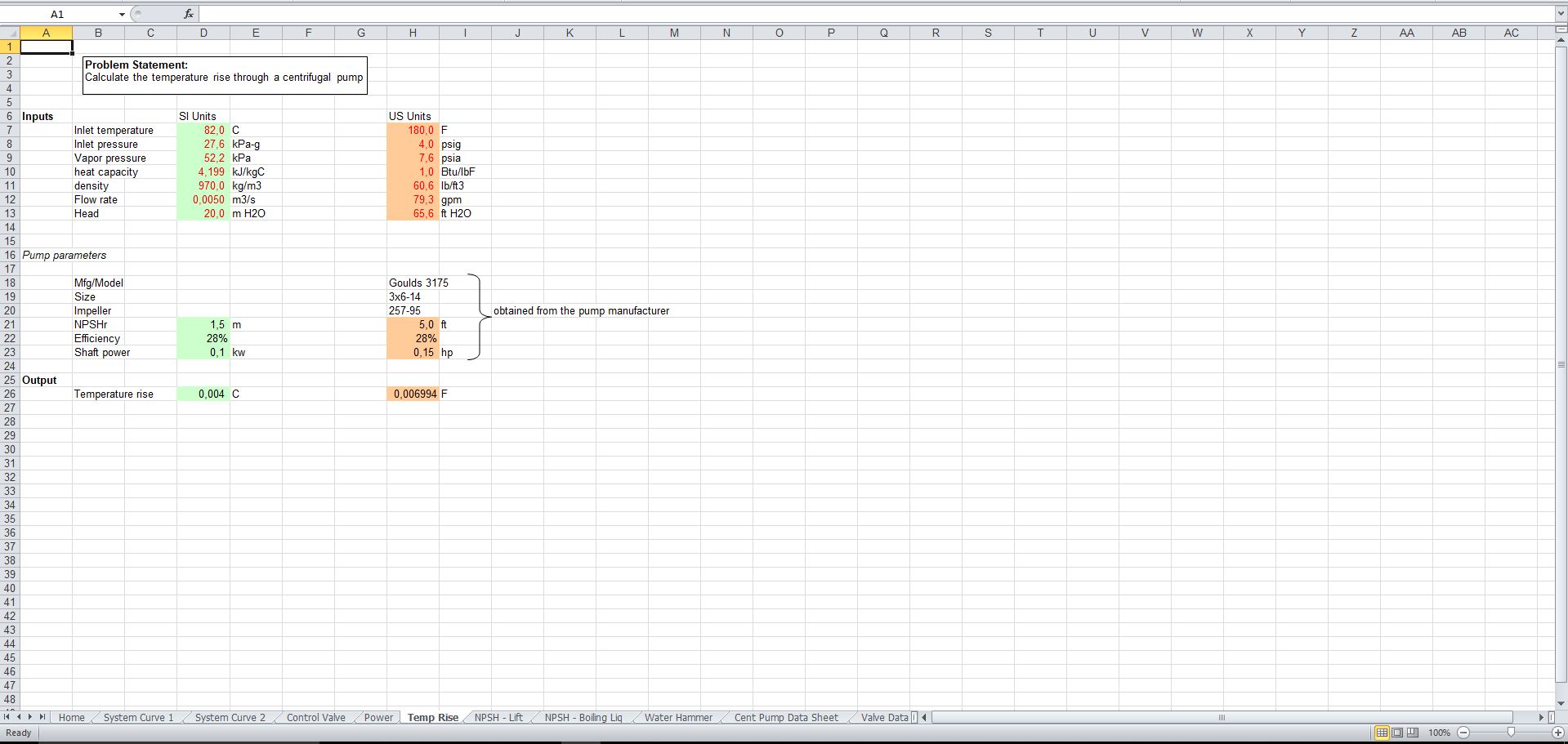

Temp rise
NPSH- lift

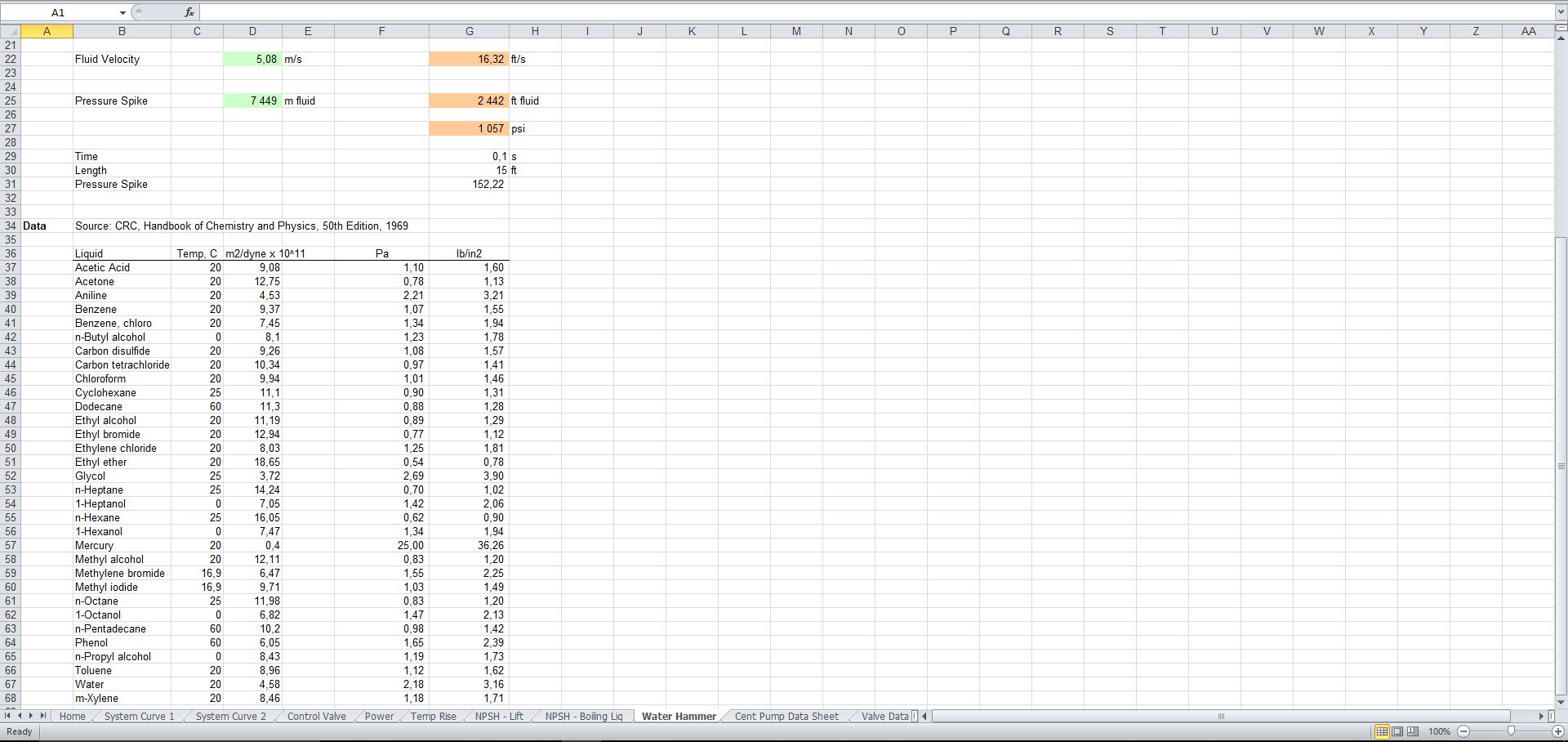

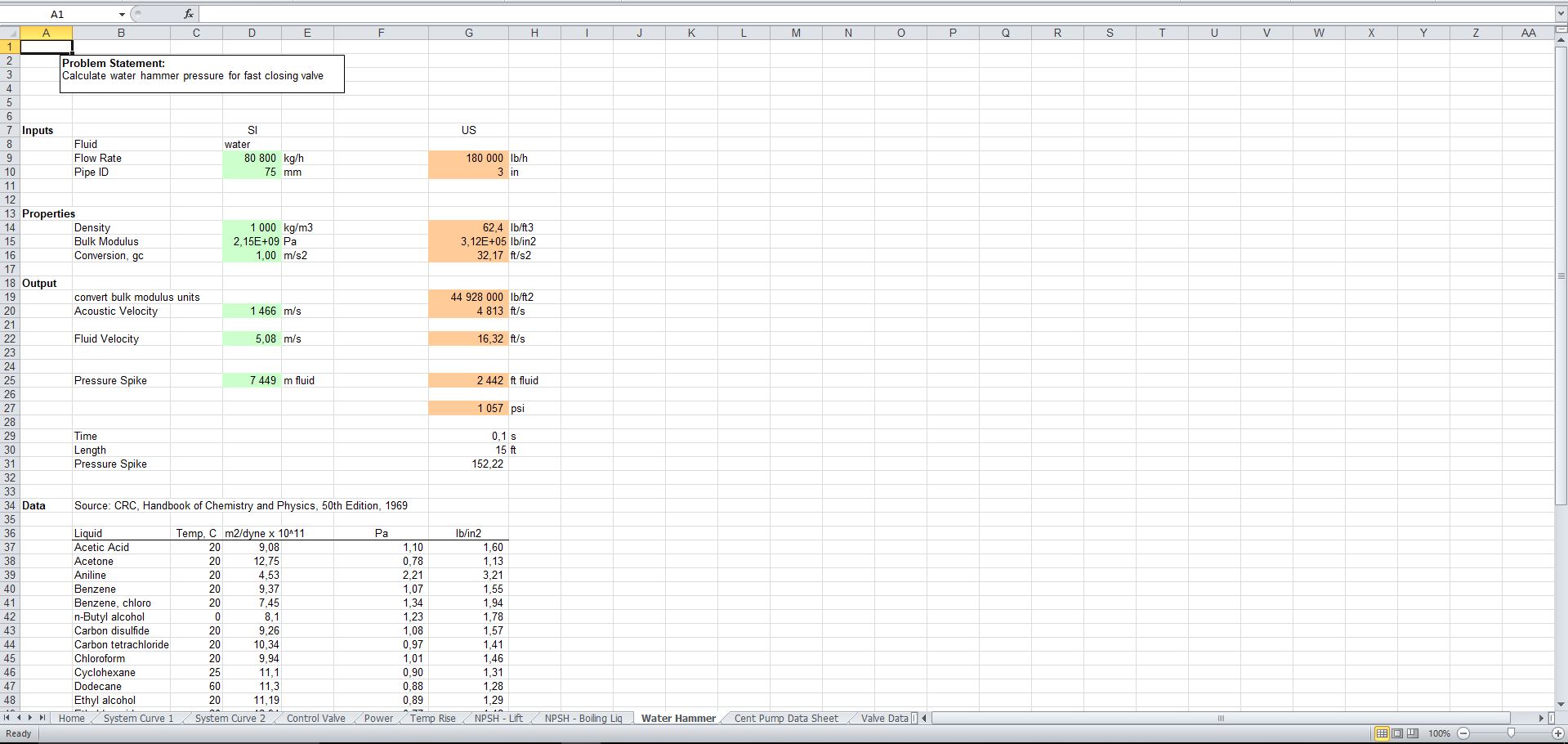

Water hammer

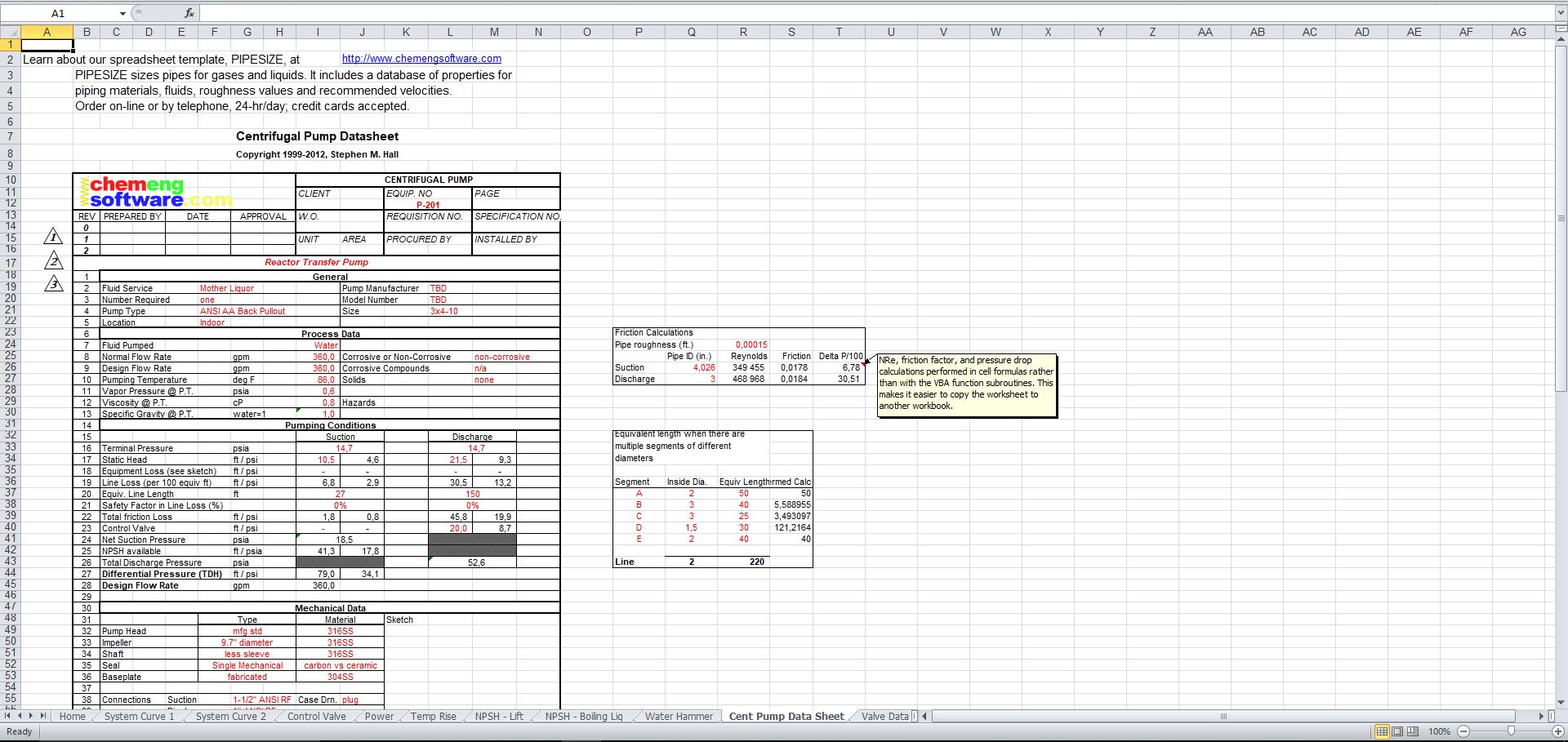

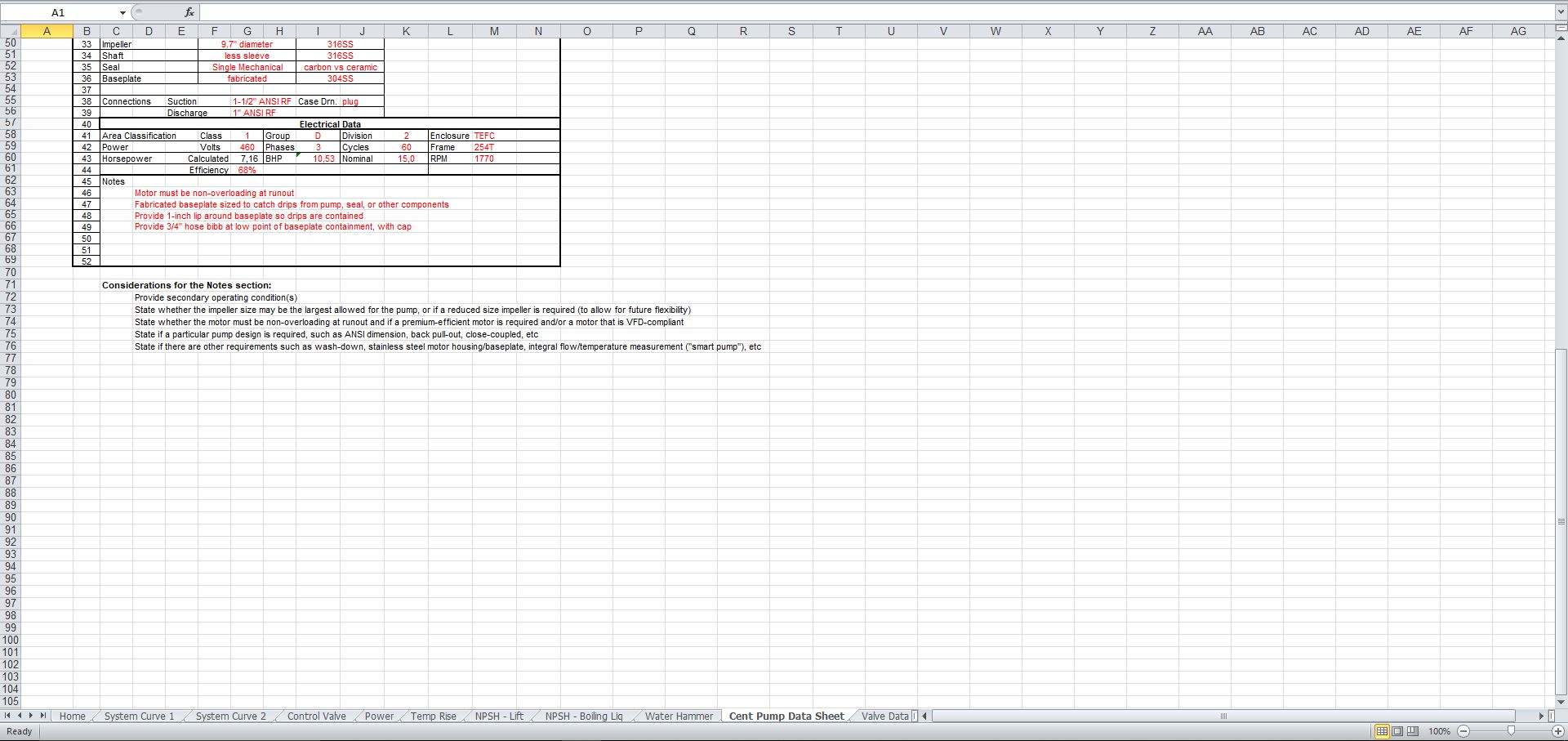

Cent. pump data sheet

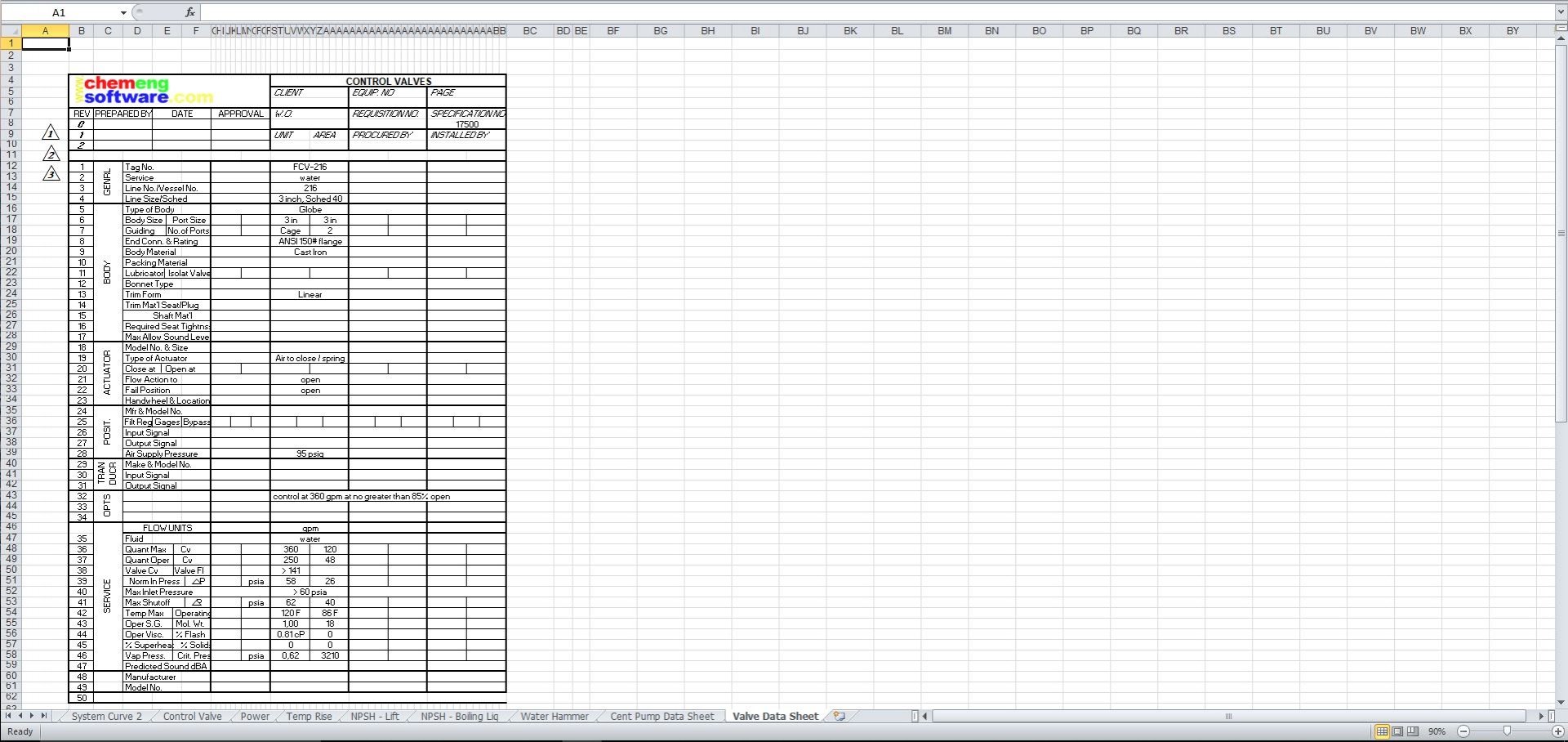

Valve data sheet

Macros must be enabled for function subroutines to work.

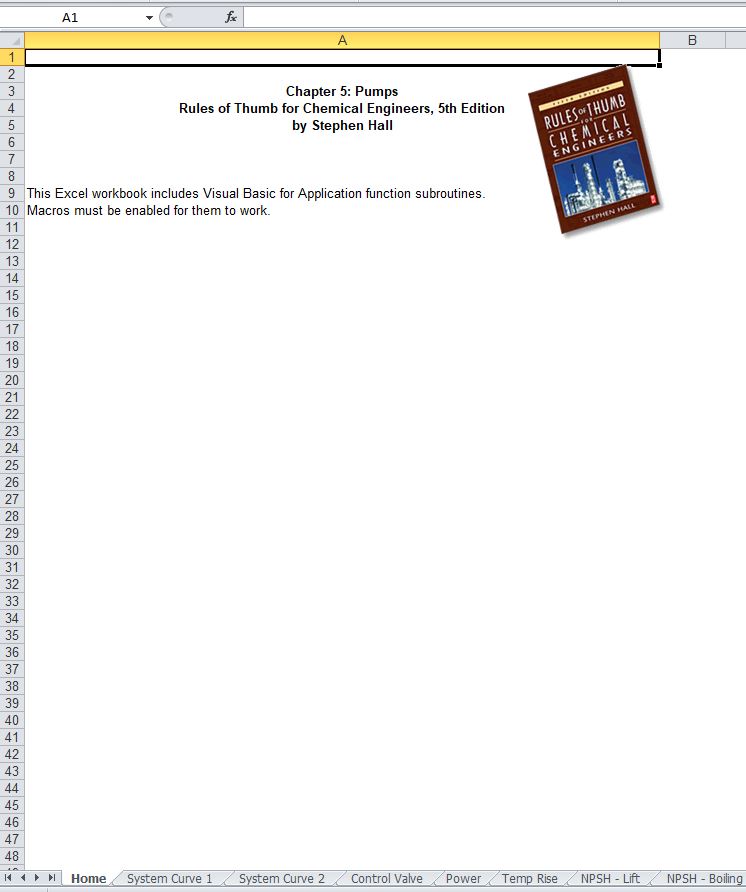

This template accompanies Chapter 5 of Rules of Thumb for Engineers, 6th Edition by Stephen M Hall, PE. The templates are intended to solve problems outlined in the book, explain techniques for converting U.S. & SI units of measure, demonstrate data look up methods, and provide you with ready-to-use data sheets. The function subroutines can also be copied to other spreadsheets.

You can buy the textbook here:

*Originally shared on pipesizingsoftware.com*

This Best Practice includes
1 Downloadable Pumps Excel Workbook

Stephen Hall offers you this Best Practice for free!
