Cable Size Calculation Spreadsheet
Cable size calculations based on Motor Horse Power HP and Specified Current.
Description
The Sheet works with a series of Input Data giving you a number of calculated Values.

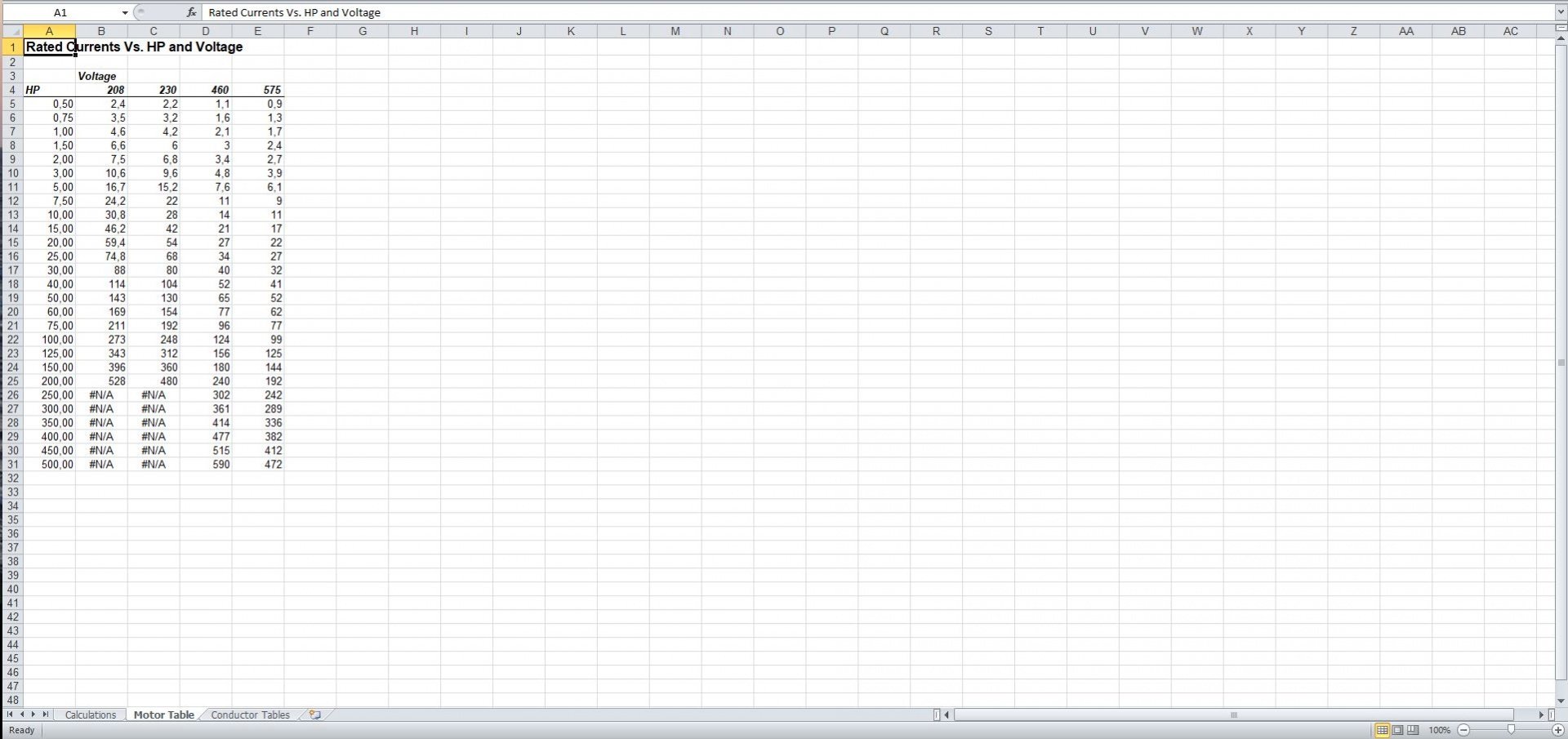

Input data: Motor voltage (V L-L), Motor horsepower, Cable Temperature Rating (°C), Ambient Temperature (°C), Cable Length (ft) and Acceptable Voltage Drop (%).
Calculated Values: Operating Current (A), 125% Current per NEC (A), “Zero Length” Cable Size, Acceptable Voltage Drop (V), Actual Voltage Drop (V) and Actual Voltage Drop (%).
Please Note:

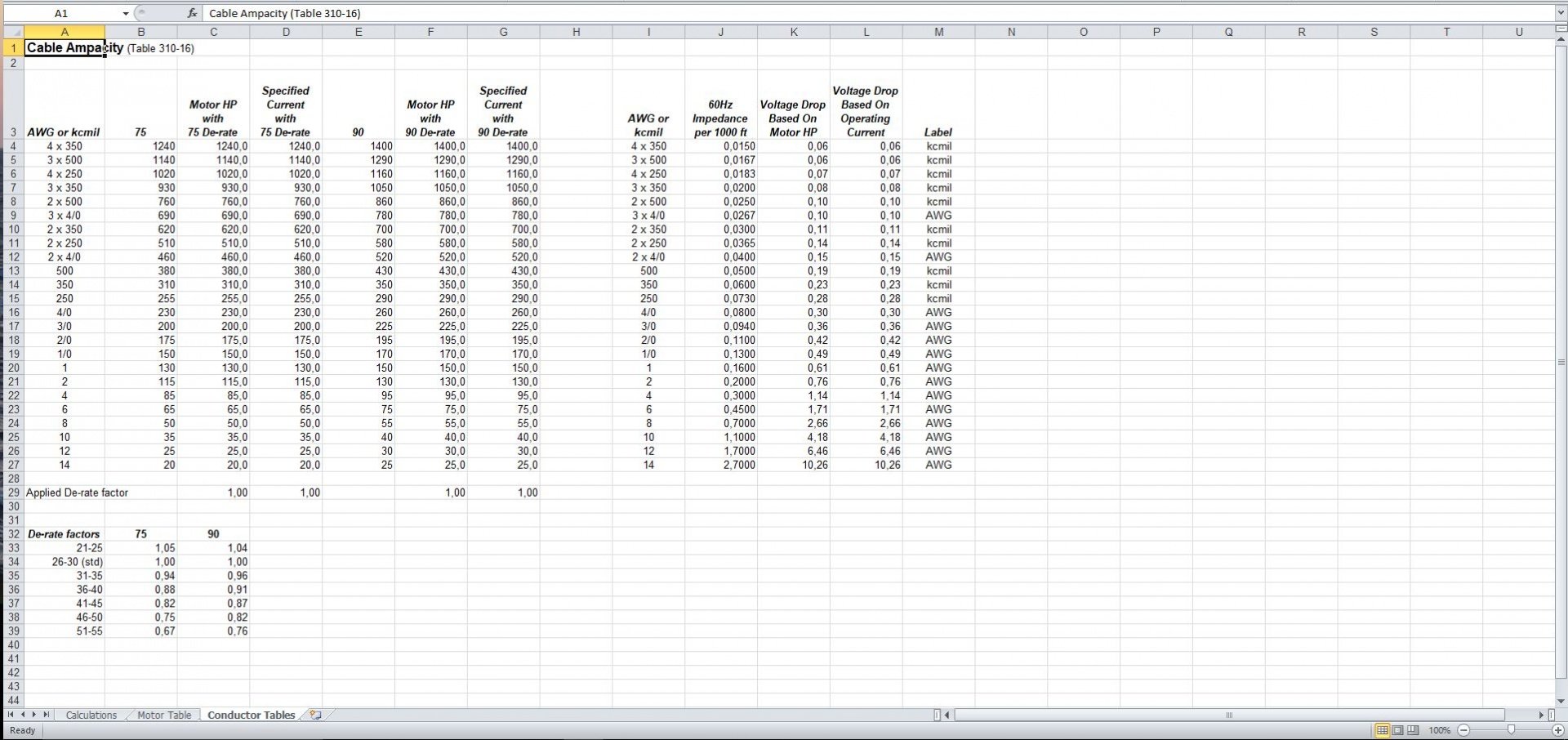

The conductor ampacities are based on NEC 2008, Table 310.16 (Not more than 3 current carrying conductors in racewary).
*Originally shared on electrical-engineering-portal*
This Best Practice includes
1 Downloadable Cable Size Calculations Spreadsheet
