Professional Quality Performance Dashboard (Tier 3 Management System)

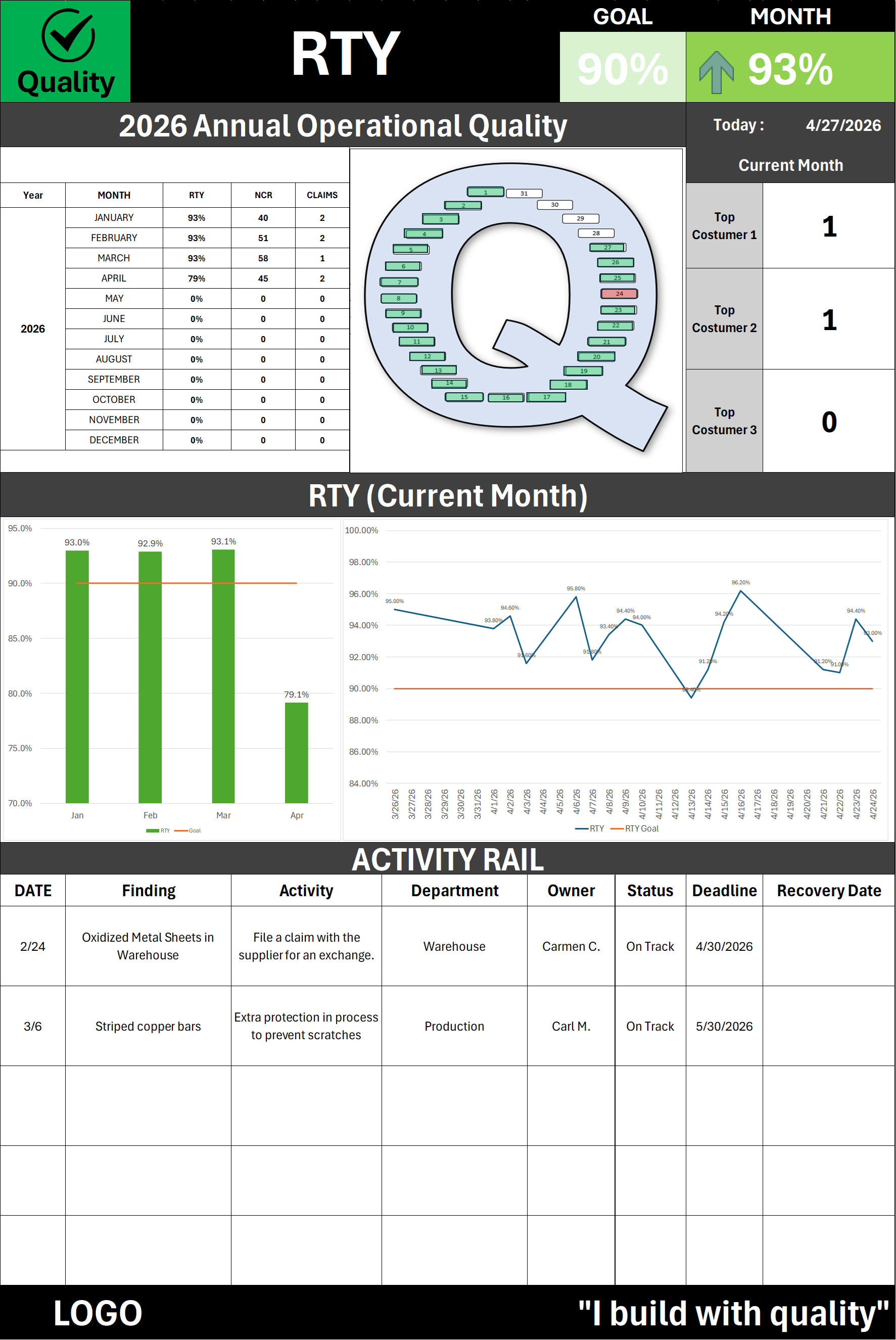

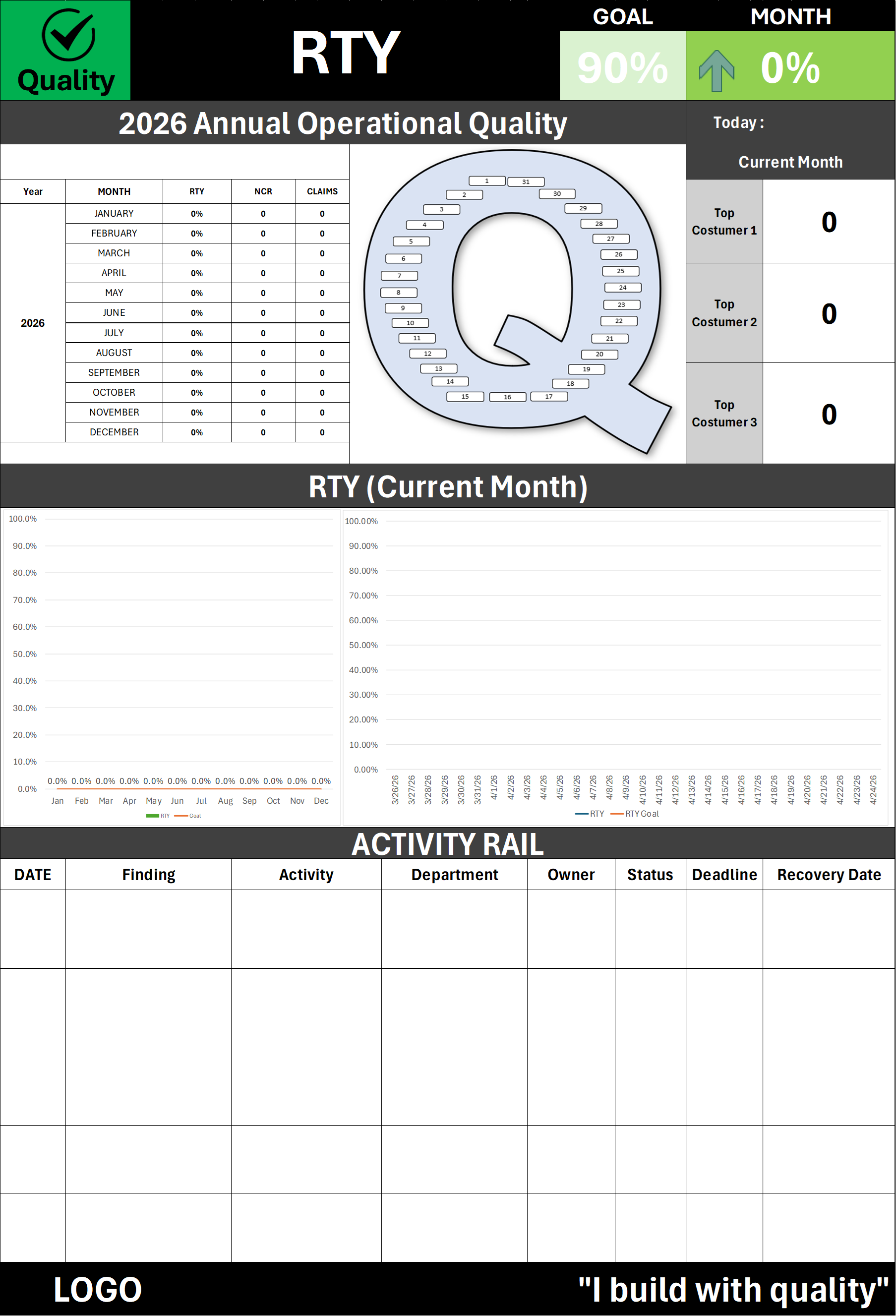

Professional Quality dashboard for Tier 3 management. Track RTY, PPMs, and Scrap with automated Pareto analysis and monthly trend charts in Excel.

Adrian Morailaby Adrian Moraila
Manufacturing & Continuous Improvement HeadFollow
16 views|Start the discussion!|Bookmark Add to cart - $19.00
quality dashboardquality kpistier 3 managementfirst pass yield (fpyoperational excellence
Description

"Drive operational excellence by transforming raw quality data into a strategic decision-making engine."

In a competitive manufacturing landscape, monitoring quality is about more than just counting defects; it is about identifying root causes and protecting the bottom line. This Quality Performance Dashboard is a professional-grade tool engineered to support the Tier 3 Management System, providing executive-level visibility into the most critical quality indicators.

Strategic Quality Oversight:

Designed to streamline the 'Tier Accountability' process, this dashboard ensures that your quality performance is always audit-ready and formatted for management reviews. It bridges the gap between floor-level inspections and strategic CI (Continuous Improvement) planning.

Key Analytical Features:

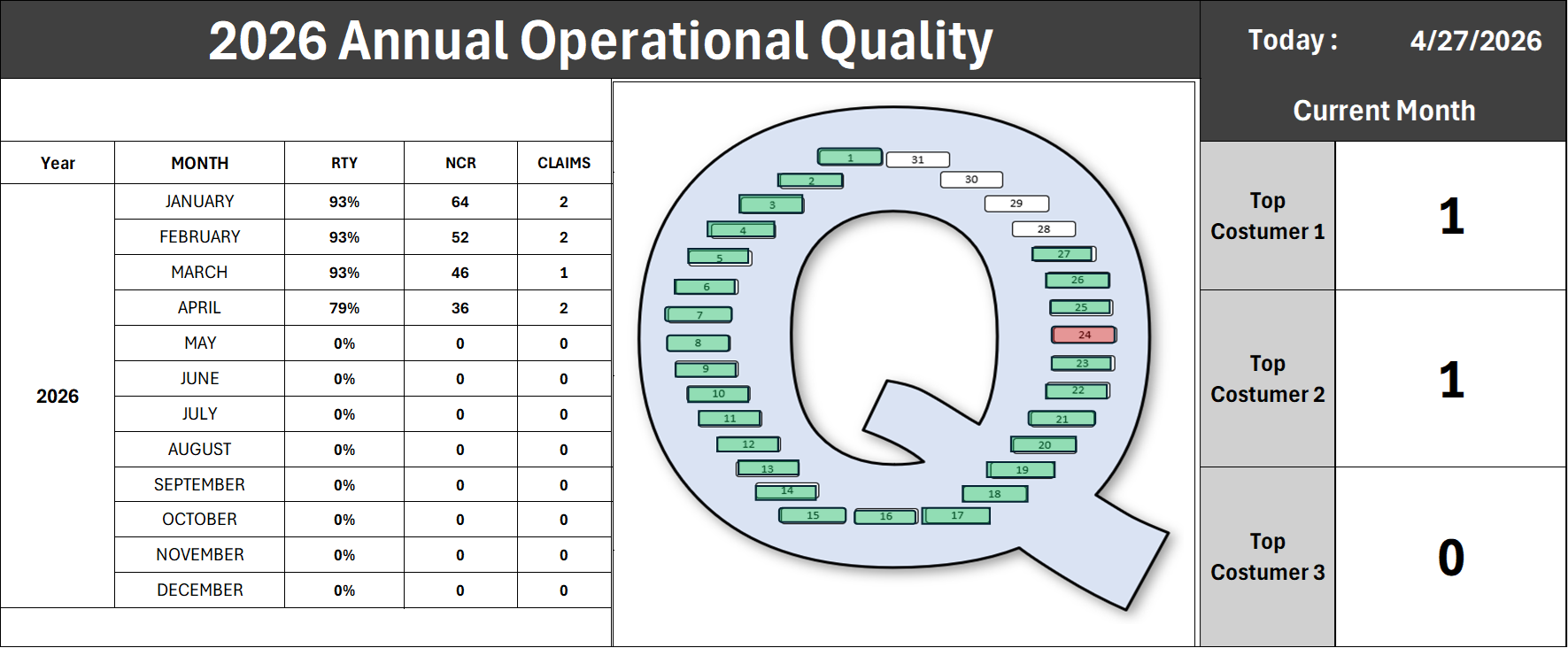

  • Automated KPI Tracking: Effortlessly monitor First Pass Yield (FPY), Rolled Throughput Yield (RTY), and Parts Per Million (PPM) rates.
  •  Scrap & Waste Analysis: Dedicated modules to visualize financial impact and volume of scrap to drive cost-reduction initiatives.
  • Dynamic Pareto Visualizations: Automatically identify the "Critical Few" defects that are driving 80% of your quality issues, allowing for targeted Six Sigma projects.

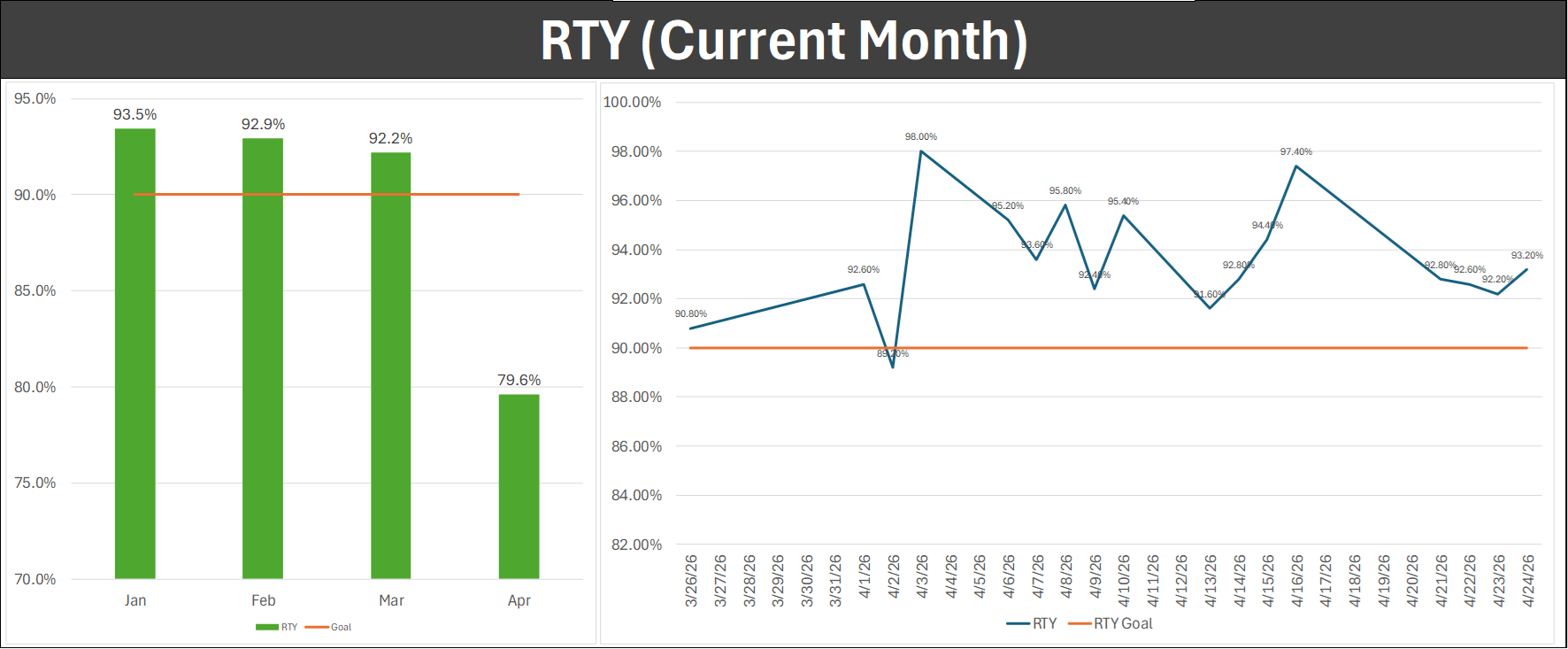

  • Trend & Seasonality Charts: Monthly and quarterly trend lines to help leaders distinguish between random variation and systemic process shifts.

Professional Engineering Standards: This tool is built with the rigor of a Lean-Six Sigma Green Belt. It is 100% Excel-based, ensuring full compatibility without the need for complex macros or external software.

This Best Practice includes
1 x Master Quality Performance Dashboard (.xlsx): A high-impact Excel tool optimized for Tier 3 management reviews

Acquire business license for $19.00

Add to cart

Add to bookmarks

Discuss

Further information

Visualize Process Capability: Transform complex quality data into clear, actionable trends for leadership.
Identify Root Causes: Use automated Pareto charts to prioritize Kaizen and Six Sigma efforts.
Reduce Cost of Quality: Monitor scrap and rework rates to directly impact the plant's financial performance.

High-Volume Manufacturing: Ideal for production environments (Automotive, Medical, Metal-mechanic) where tracking PPMs and Yield (FPY/RTY) is critical for operational success.

Continuous Improvement Projects: Best suited for Six Sigma or Kaizen teams that need to visualize the "before and after" impact of process improvements.

Cost of Quality Analysis: Perfect for plants focused on reducing financial waste by tracking Scrap and Rework trends.

Standardized Quality Reporting: Ideal for Quality Managers who need to unify data from multiple production lines into a single, professional executive view.

Audit Readiness: Highly effective for maintaining visible, organized data for ISO 9001 or customer-specific quality audits.

Tier 3 Management Reviews: Specifically designed for plant-level leadership meetings where strategic quality decisions are made based on monthly trends.

Real-Time Automated Inspection: This is a management-level manual entry dashboard; it does not integrate via API with automated vision systems or CMM (Coordinate Measuring Machines) for real-time data streaming.Complex Statistical Process Control (SPC): While it tracks trends and Paretos, it is not a replacement for specialized SPC software (like Minitab) for calculating $Cpk$, $Ppk$, or advanced control limits.Individual Unit Traceability: This tool is designed for aggregate KPI management (Tier 3), not as a serialized tracking system for following a single specific part through the entire supply chain.
