Pipeline Pressure Testing Safe Distance & Stored Energy Calculator (ASME PCC-2)

Pneumatic and hydrostatic pressure testing are among the most hazardous activities during pipeline commissioning. Because gases are compressible, a pneumatic test failure releases a massive amount of stored energy—often equivalent to an explosive detonation. This automated calculator removes the complex manual math required to establish safe boundaries for your personnel.

Designed for both Pneumatic and Hydrostatic testing scenarios, this tool takes your standard field parameters and automatically runs the engineering equations required by the ASME PCC-2 standard to determine exactly how far back your barricades need to be.

Key Features:

• Dual-Test Capabilities: Includes dedicated calculation sheets for both Pneumatic (ASME PCC-2) and Hydrostatic pressure testing.

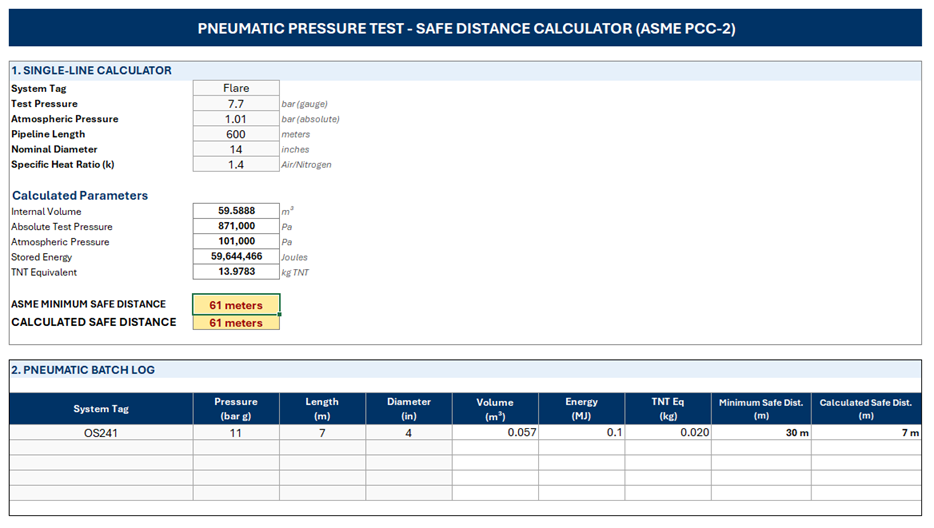

• Explosive Energy Modeling: Automatically converts pipeline dimensions and test pressures into Internal Volume (m³), Total Stored Energy (Joules), and the resulting TNT Equivalent (kg).


• ASME PCC-2 Compliance: Generates the exact "Calculated Safe Distance" and "ASME Minimum Safe Distance" required for code compliance.


• Customizable Inputs: Easily adjust variables like Test Pressure, Pipeline Length, Nominal Diameter, and Specific Heat Ratio (e.g., Air/Nitrogen).


• Audit-Ready: Provides a transparent calculation breakdown that can be printed and attached directly to your Permit to Work (PTW) or Job Safety Analysis (JSA) for client approval.



Target Audience: Commissioning Engineers, HSE Managers, Pipeline Construction Managers, and Quality Assurance (QA/QC) Inspectors.
